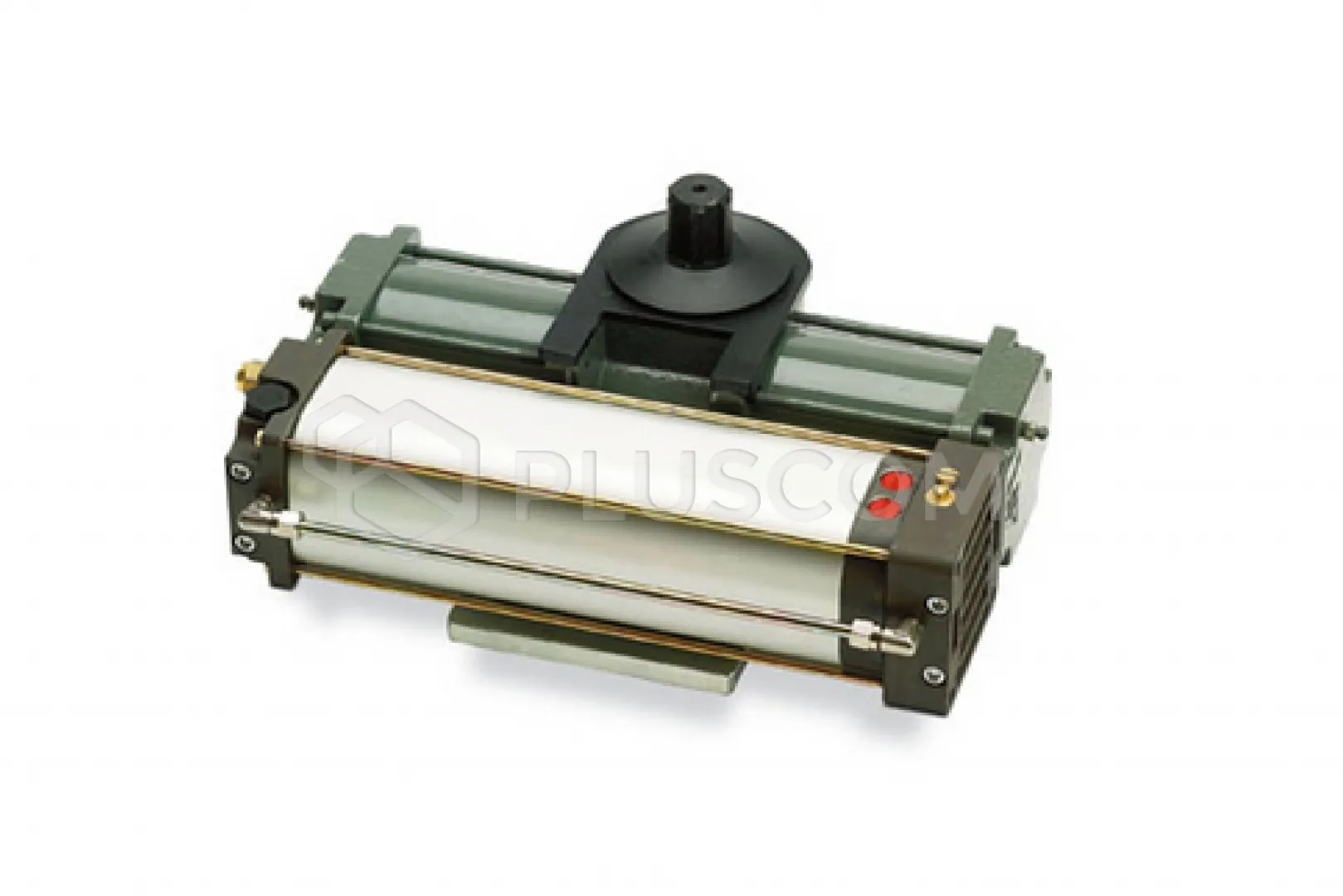

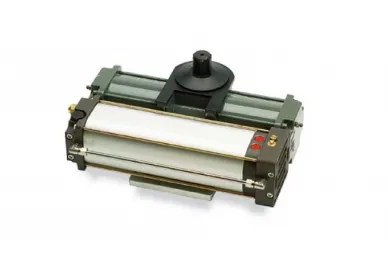

BFT 2601416 Underground self-locking hydraulic actuator (right) for swing gates SUB R DX

BFT 2601416 Underground self-locking hydraulic actuator (right) for swing gates SUB R DX

BFT 2601416 SUB R DX is an advanced, underground hydraulic actuator designed to automate right-wing gates. Its design and functions make it an ideal solution for demanding users looking for reliability and safety.

FEATURES:

• Hydraulic actuator for residential swing gates and for intensive use
• Designed for gates with a leaf weight of up to 800 kg
• Hydraulic force regulation and obstacle detection
• Frequency of use up to 500 cycles per day

The design consisting of a single block allows for aesthetic, exceptionally reliable installations despite the passage of time.

Slowing down during closing guarantees quiet and smooth movement even for the largest doors. The adjustment screw also allows the slowing down intensity to be adjusted to the requirements of any situation.

Control unit with programming display and new, simplified programming based on scenarios.

Technical data:

• IP67 degree of protection
• Operating environment (max.) -10 ÷ 60 °C
• RIGEL 6 control unit
• Communication no
• Board power supply 230 V
• Motor voltage 230 V
• Power consumption 250 W
• Max. door/gate leaf width 1.8 m
• Max. door/gate leaf weight 800 kg
• Maximum angle 130 °
• Manoeuvre time 14+slowdown s
• Limit switch type working time
• Slowdown YES
• Lock Hydraulic opening/closing
• Unlocking Triangular key
• Impact reaction Hydraulic clutch
• Use frequency very intensive
