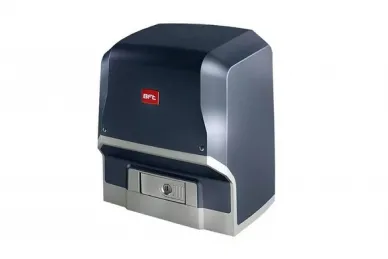

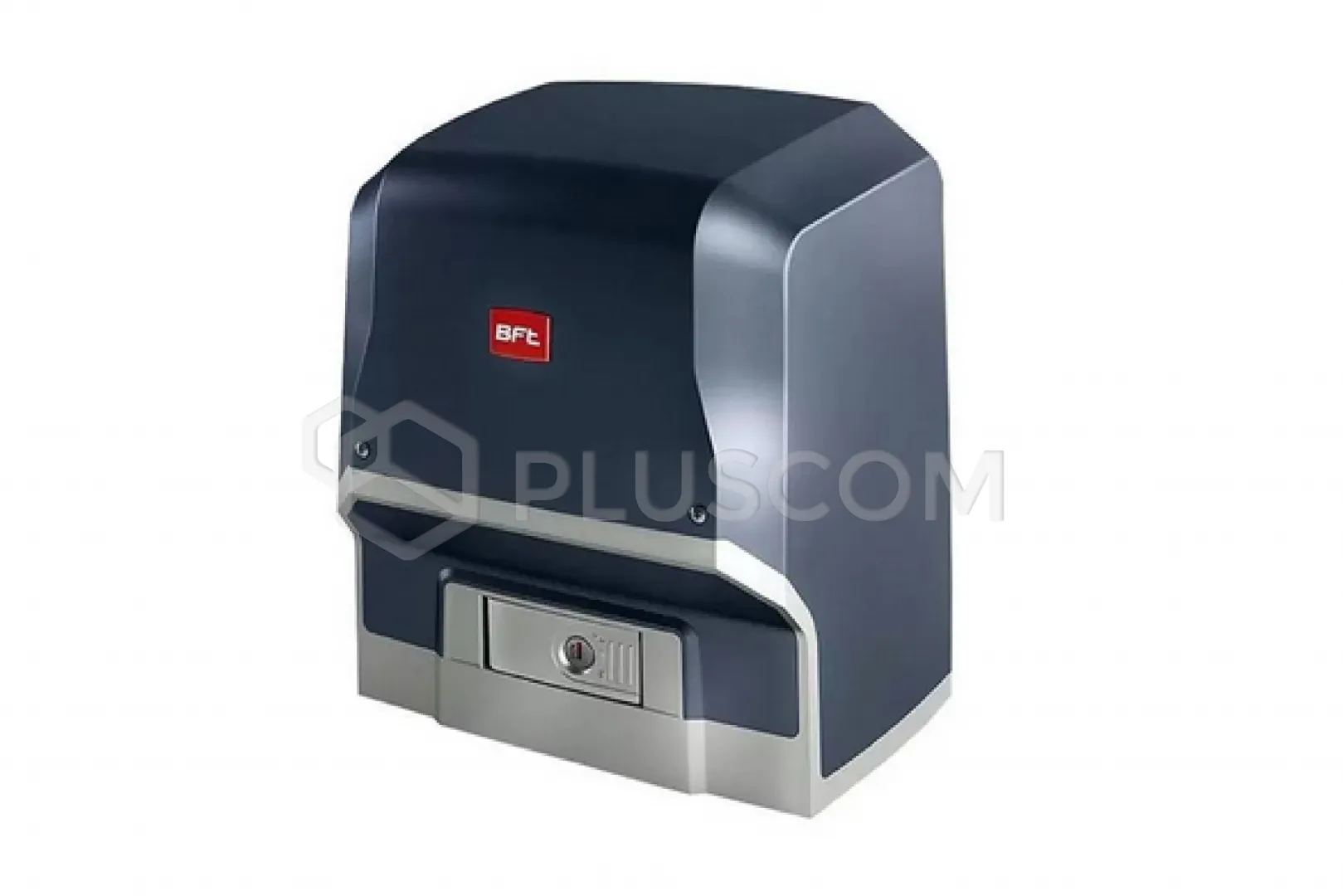

BFT 2601414 Sliding gate actuator ARES VELOCE SMART BT A500

BFT 2601414 ARES VELOCE SMART BT A500 sliding gate actuator

BFT ARES VELOCE SMART BT A500 is an advanced actuator designed to automate sliding gates weighing up to 500 kg. It is characterized by an extremely high opening speed, making it an ideal solution for facilities where reaction time is crucial.

FEATURES:

• Speed: the rapid movement of the ARES SMART BT actuator reduces the waiting time for opening, reducing the risk of accidents
• D-Track: an intelligent torque control system that varies the torque required to perform a given operation, allowing for optimal operation regardless of weather conditions, temperature or wear of the device
• Personalised key: the lever makes it easier to release the motor, while the unique personalised key ensures a higher level of security
• Screws on the front of the housing: the positioning of the fixing screws on the front of the housing makes installation and maintenance easier, even in difficult to access places

24V Precise, direct and reliable technology BFT technology powered by 24V current ensures optimal performance with punctual adjustment of the release during closing and opening. Its fundamental aspect is safety, which guarantees immediate stopping and changing the direction of movement in case of encountering obstacles. The efficiency of the technology is a guarantee of product reliability.

Technical data:

• MERAK BT A V control unit
• Use frequency intensive
• Board power supply 230 V
• Protection class IP24
• Motor voltage 24 V
• Working environment (max.) -20 ÷ 55 °C
• Power consumption 400 W
• Gear module 4 mm (25 teeth)
• Resistance force speed 80 N 22 m/min
• Max. door/gate weight 500 kg
• Max. torque 20 Nm
• Decel. YES
• Impact response Safety edge 8K2 (not supplied)
• Mechanical lock
• Manual operation Mechanical release by lever
• Connectivity YES
