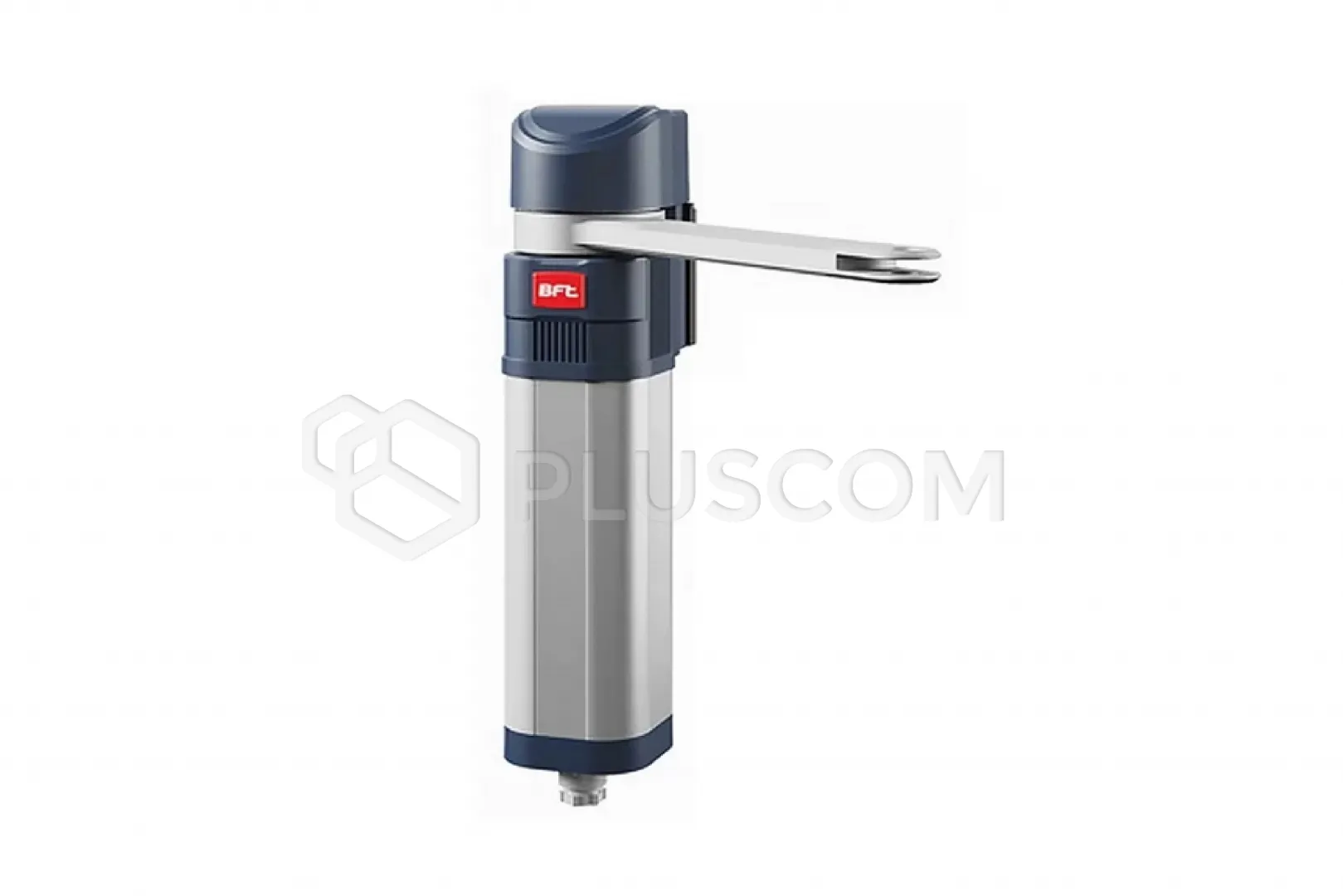

BFT 2601404 Non-self-locking swing gate operator E5 BT A18

494,46 EUR including 23.00% VAT
Product code: #37876
Manufacturer: BFT
  • Max. leaf length: 1.8m
  • Max. leaf weight: 100kg
  • Engine power supply: 24V
  • Can be mounted on 80mm posts
  • Limit switch type: Absolute encoder
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2601404 Non-self-locking swing gate operator E5 BT A18


Compact electromechanical operator for swing gates for vehicles with reversible direction, which is characterized by its small size and can be installed on pillars or columns with a width of only 80 mm. Application in gates for vehicles up to 1.8 m wide and weighing up to 100 kg. Operator with main lever, to which an articulated arm or long sliding lever can be added (available as accessories).

FEATURES:

  • Absolute encoder: the E5 BT A actuator constantly detects the gate position, controlling the slowdown phase during opening and closing with unprecedented precision
  • Dynamic D-Track: an intelligent torque control system that constantly varies the torque during gate movement, increasing safety regardless of weather conditions, temperature or component wear
  • Push and Go: the Push and Go function allows the gate to be fully opened manually
  • Ease of installation: the mounting bracket on a column or post ensures easier installation. The Thalia control unit is equipped with terminal blocks with standardized color coding, which facilitate the identification of the inputs/outputs.

A precise, direct and reliable technology BFT technology powered by 24 V current ensures optimal operation with punctual adjustment of the slowdown during closing and opening. Its fundamental aspect is safety, guaranteeing immediate stopping and reversing of the movement direction in the event of encountering obstacles. The efficiency of the technology is a guarantee of the reliability of the product.

Technical data:

  • Control unit THALIA BT A80, THALIA
  • Connectivity YES
  • Working environment (max.) -20 ÷ 55 °C
  • Protection degree (IP) IP44
  • Use frequency 20 Cycles/ora
  • Impact response D-Track
  • Unlocking With change of direction/position
  • Limit switch type Absolute encoder
  • Manoeuvre time 14 s
  • Max. door/gate wing width 1.8 m
  • Power consumption 100 W
  • Motor voltage 24 V
  • Board power supply 230 V
  • Max. door/gate wing weight 100 kg
