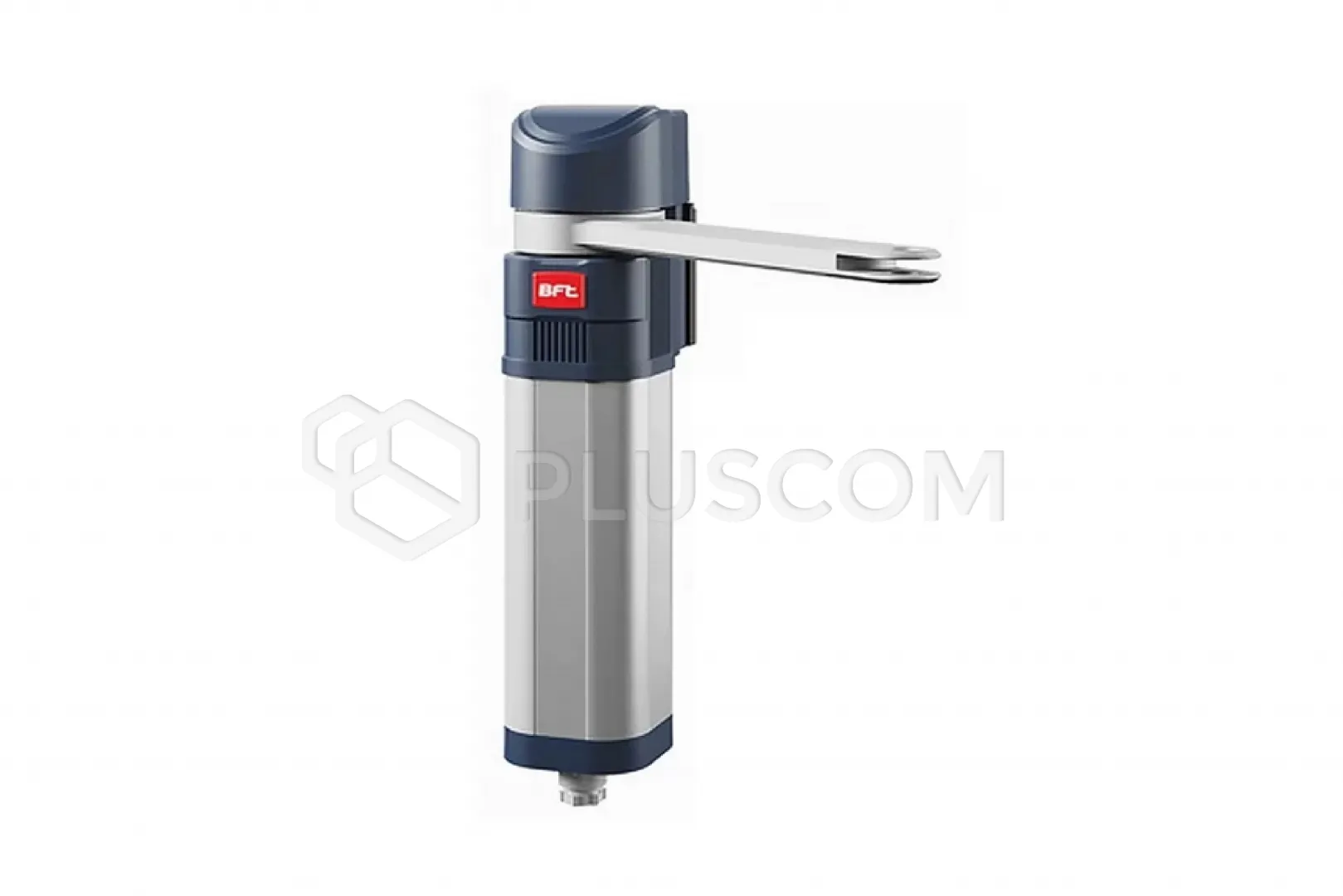

BFT 2601404 Non-self-locking swing gate operator E5 BT A18

BFT 2601403 Non-self-locking operator for swing gates E5 BT A18

Compact electromechanical operator for pedestrian gates with reversible direction, which is characterized by its small size and can be installed on pillars or columns only 80 mm wide. Application on pedestrian gates up to 1.2 m wide and weighing up to 80 kg. Closes in 6.5 seconds (in ideal installation conditions) Operator with main lever to which an articulated arm or short sliding lever can be added (available as accessories).

FEATURES:

• Absolute encoder: the E5 BT A actuator constantly detects the gate position, controlling the slowdown phase during opening and closing with unprecedented precision
• Dynamic D-Track: an intelligent torque control system that constantly changes the torque during gate movement, increasing safety regardless of weather conditions, temperature or component wear
• Push and Go: the Push and Go function allows the gate to be completely opened manually

Precise, direct and reliable technology BFT technology powered by 24 V current ensures optimal operation with punctual adjustment of the slowdown during closing and opening. Its fundamental aspect is safety, guaranteeing immediate stopping and reversal of travel in the event of encountering obstacles. The efficiency of the technology is a guarantee of product reliability.

Technical data:

• THALIA BT A80, THALIA control unit
• Working environment (max.) -20 ÷ 55 °C
• Protection degree (IP) IP44
• Use frequency 100 Cycles/ora
• Impact response D-Track
• Unlocking With change of direction/position
• Limit switch type Absolute encoder
• Manoeuvre time 6.5 s
• Max. door/gate leaf width 1.2 m
• Power consumption 100 W
• Max. door/gate leaf weight 80 kg
• Engine voltage 24 V
• Board power supply 230 V
• Connectivity YES
