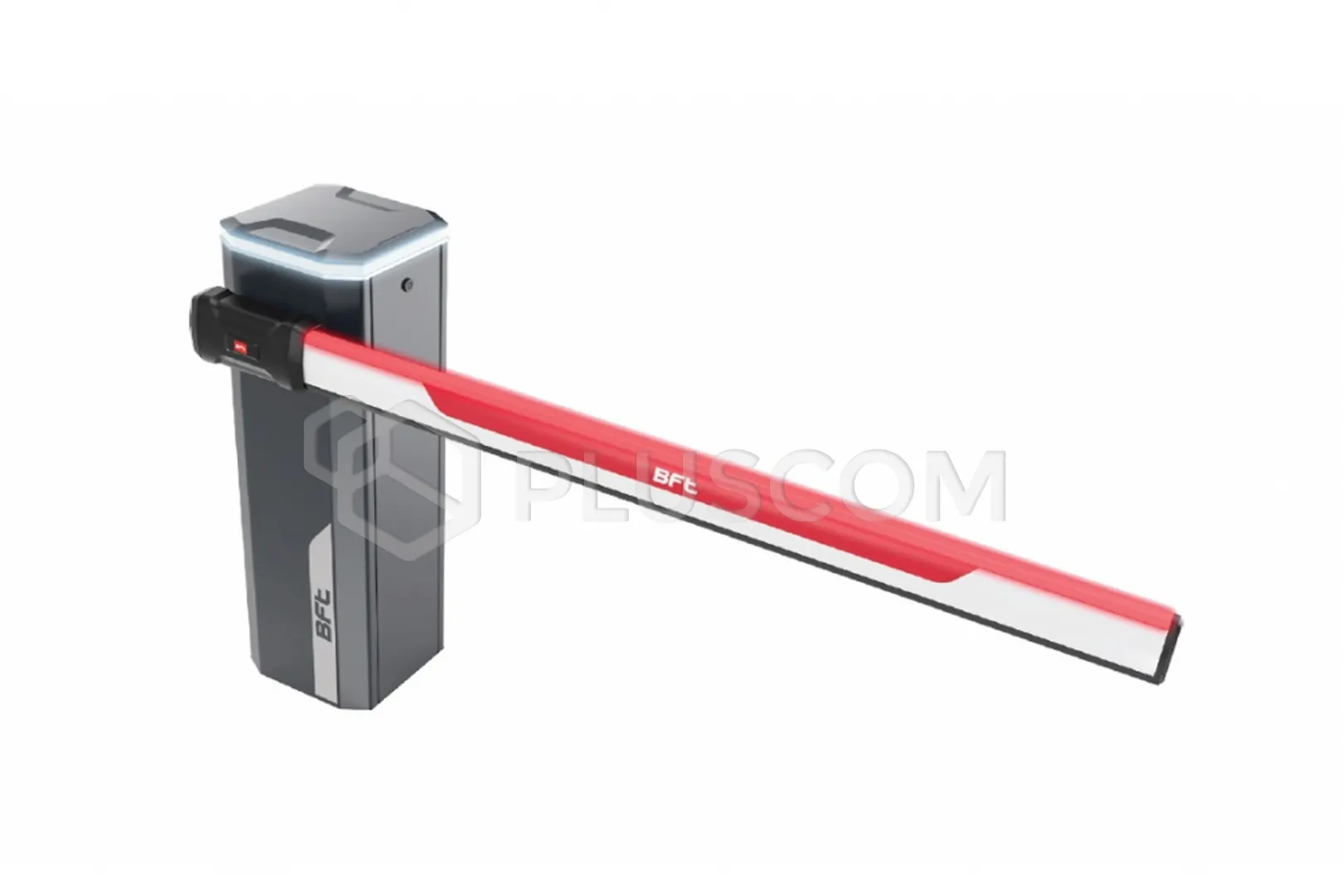

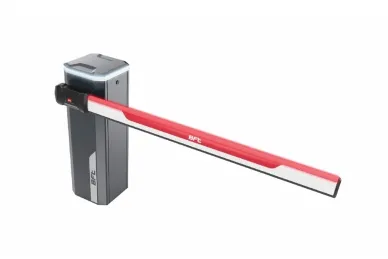

BFT 2601391 MAXIMA ULTRA 36 RAL 230V Barrier up to 6m

BFT 2601391 MAXIMA ULTRA 36 RAL 230V CENTRAL UNIT FOR 6m ARM

Electromechanical barrier for 230V with inverter and asynchronous three-phase motor for very intensive work.
It allows to manage gates up to 6m with a fully equipped arm in one model.

Suitable for installation in areas with high traffic frequency and frequent reversal of the barrier's movement direction (e.g. toll gates on highways, car parks with high traffic frequency, etc.).

The barrier unit should be equipped with one of the following top cover options:

• base without lamps
• base with RGB lamps with flashing, traffic signal, diagnostic functions

FEATURES:

• opening time from 0.7 to 4 seconds with slow-down function
• three-phase asynchronous motor
• designed for continuous operation
• mechanical lock
• housing made of steel in RAL color on individual order
• built-in encoder
• maintenance available from three different points - from the top of the barrier, through the front door or the rear door
• three arm attachment points - for different loads

The ROD & CRANK solution used provides protection against vandalism, preventing unauthorized opening of the barrier. At the same time, it provides mechanical acceleration and deceleration of the arm with smooth movement.

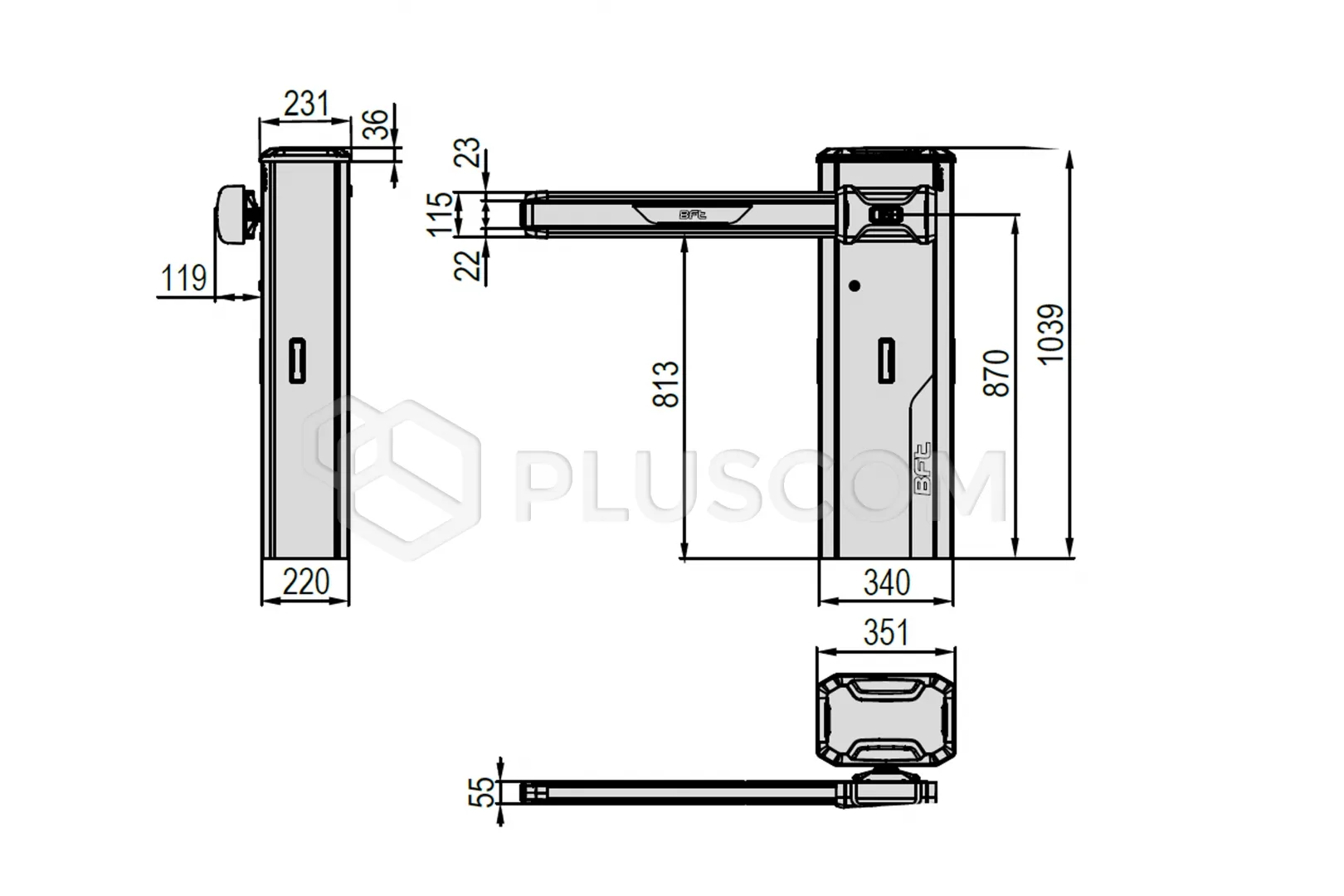

Dimensions:

TECHNICAL DATA:

• Motor power supply: 230V
• Control unit: CSB-XT
• Usable passage light: up to 6m
• Use frequency: 5,000 cycles per day
• Open/close time: 0.7 to 3.9 s
• Motor type: asynchronous 3-phase
• Gearbox type: in oil bath
• Inverter: yes
• Impact response: optical encoder
• Mechanical lock, ROD & gear CRANK(anti-vandal)
• Unlocking: inside the structure, special crank
• Powder-coated steel housing in RAL color on individual order
• Operating temperature range: -40°C - +60°C
• Tightness class: IP55
