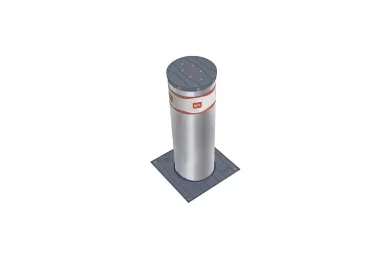

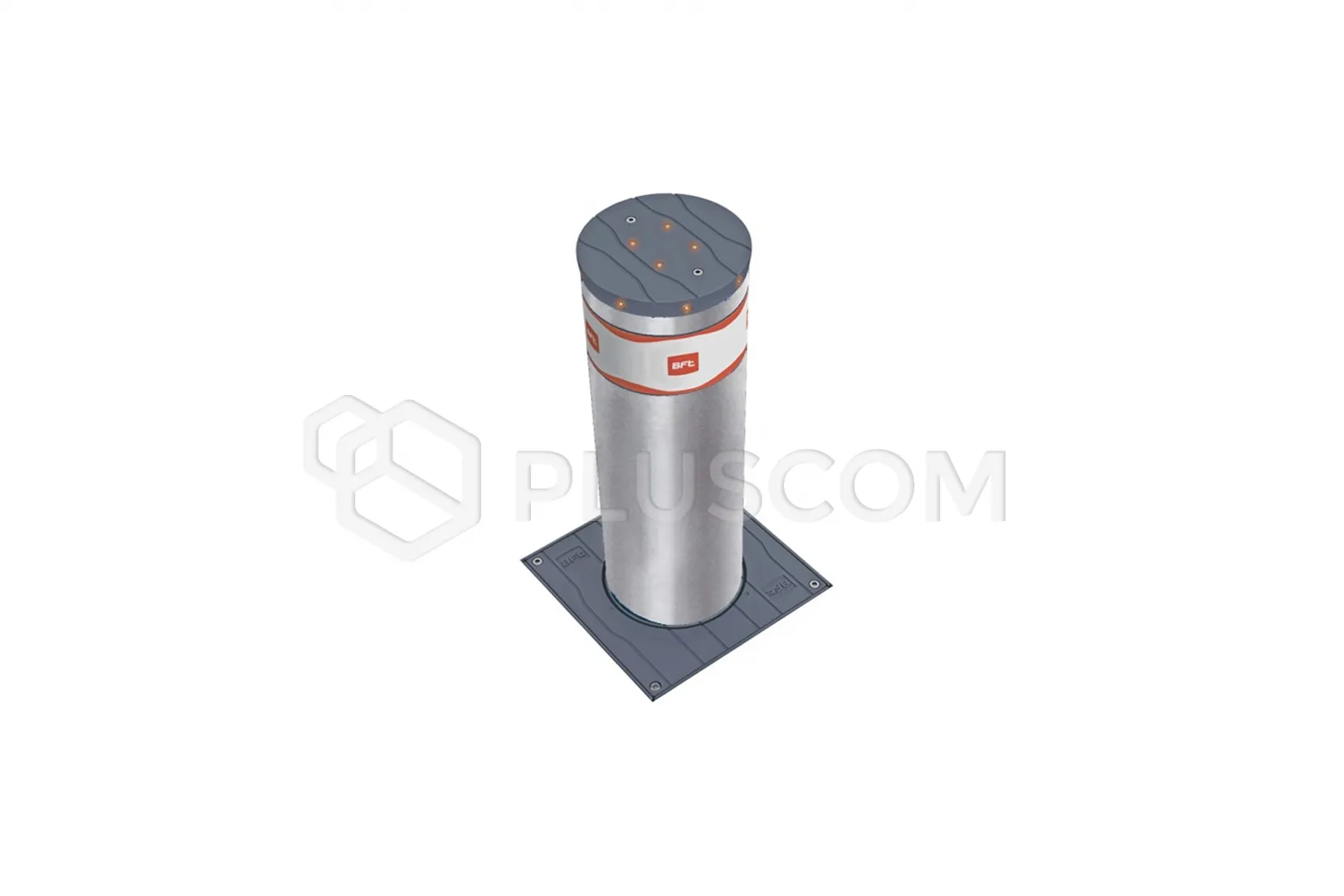

BFT 2601353 STOPPY MBB KIT 219/700.C 230 LI C Road barrier

6958,50 EUR including 23.00% VAT
Product code: #37841
Manufacturer: BFT
  • Height: 700mm
  • Diameter: 220mm
  • Well depth: 1165mm
  • Foundation box included
  • Stainless steel version
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2614120 MITTO COOL C4 remote BFT 2614118 MITTO COOL C2 remote control BFT 2601390 BATT-EB Emergency power supply battery for electromechanical barriers

BFT 2601353 STOPPY MBB KIT 219/700.C 230 LI C Road barrier with foundation box (R950009 00004)


230 Vac electromechanical bollard with internal oil-bath gearmotor. Stoppy-Mbb is the ideal solution for contexts of particular architectural and urban interest, thanks to specially studied colours and a new design for the floor flange and LED light cap.

Designed to work in the most extreme conditions, thanks to all metal parts being cataphoresis treated and the new EPDM seal integrated in the flange and the LED light cap which, with the shaft lowered, fits perfectly into the floor flange, drastically reducing the ingress of debris in casing.

PERSEO CBE control unit with menu programming on the display, automatic servicing warning, simultaneous management of up to 4 bollards, integrated receiver and integrated heating element
PERSEO CBE dedicated control panel: manages up to 4 bollards in parallel, programming menu on the display, integrated heating element and incorporated receiver.
Key features:
  • Can manage up to 4 barriers at the same time (or up to 2 XPASS B 1200)
  • Control panel power supply voltage: 230Vac +- 10%, 50/60Hz
  • Motor power supply voltage: 230Vac, 12A max
  • Accessories power supply voltage: 24Vac, 1A max
  • Main features: removable terminal blocks, digital programming, 3-digit display, Proxima Blue programmer connector, integrated CLONIX2048 receiver, integrated TERMO N heater (heating level adjustment), full support for anti-terrorist posts, dedicated UPS status input (configurable), U-Link communication port, programmable inputs and outputs
  • Main functions: automatic re-closing, separate OPEN-CLOSE inputs, early lighting, deadman function, automatic and semi-automatic, limit switches on opening and closing, possibility of reading the error history, slowdowns for electromechanical barriers, possibility of setting the service inspection (number of cycles), EFO (Emergency Fast Operation) management

TECHNICAL DATA:

  • Post diameter: 220 mm
  • Post height: 700 mm
  • Open time: 9s
  • Type of limit switches: REED magnetic sensor
  • Supply voltage: 230V ±10% 50 Hz
  • Motor power: 300W
  • Slowdowns: YES
  • Impact resistance: 10500 J
  • Shear resistance: 150000 J
  • Unlocking: reversible in the absence of voltage, possibility of using emergency power supply for the brake
  • Use frequency: very intensive
  • Tightness class: IP67
  • Operating temperatures: -40 ÷ 60 °C
Download
User manual 4.14 MB
