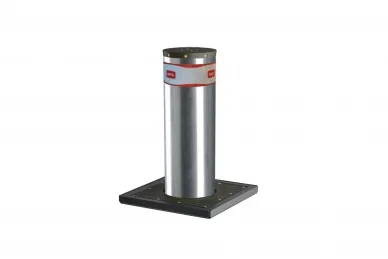

BFT 2601344 PILLAR B 275/800 10 CLI STD 316 Road barrier

BFT 2601344 PILLAR B 275/800 10 CLI STD 316 hydraulic barrier (P970106 00302)

PILLAR B road barrier designed to block passage in places with very intensive traffic. Particularly recommended in locations that require architectural consistency or a special form of protection.

The barrier is equipped with a hydraulic drive that ensures efficiency at the level of 3000 cycles per day.
The cylinder diameter is 275 mm, the cylinder wall thickness is 10 mm and the height is 800 mm. In addition, it has a reflective strip and LED lighting as standard.

The barrier is operated using the PERSEO CBE control unit with a built-in CLONIX 2048 radio receiver and is characterized by the following features:

• It can manage up to 4 barriers at the same time (or up to 2 XPASS 1200)
• Control unit power supply voltage: 230Vac +- 10%, 50/60Hz
• Motor power supply voltage: 230Vac, 12A max
• Accessories power supply voltage: 24Vac, 1A max
• Main features: removable terminal blocks, digital programming, 3-digit display, Proxima Blue programmer connector, integrated CLONIX2048 receiver, integrated TERMO N heater (heating level adjustment), full support for anti-terrorist posts, dedicated UPS status input (configurable), U-Link communication port, programmable inputs and outputs
• Main functions: automatic re-closing, separate OPEN-CLOSE inputs, early lighting, deadman function, automatic and semi-automatic, limit switches on opening and closing, possibility to read error history, slowdown for electromechanical barriers, possibility to set service inspection (number of cycles), EFO (Emergency Fast Operation) management

TECHNICAL DATA:

• Post diameter: 273 mm
• Post height: 800 mm
• Post thickness: 10 mm
• Opening time: 6.5 s
• Post Finish: Stainless Steel Housing
• Impact Resistance: 20,000 J
• Break-Resistance: 667,000 J
• Post Lock: Key Release
