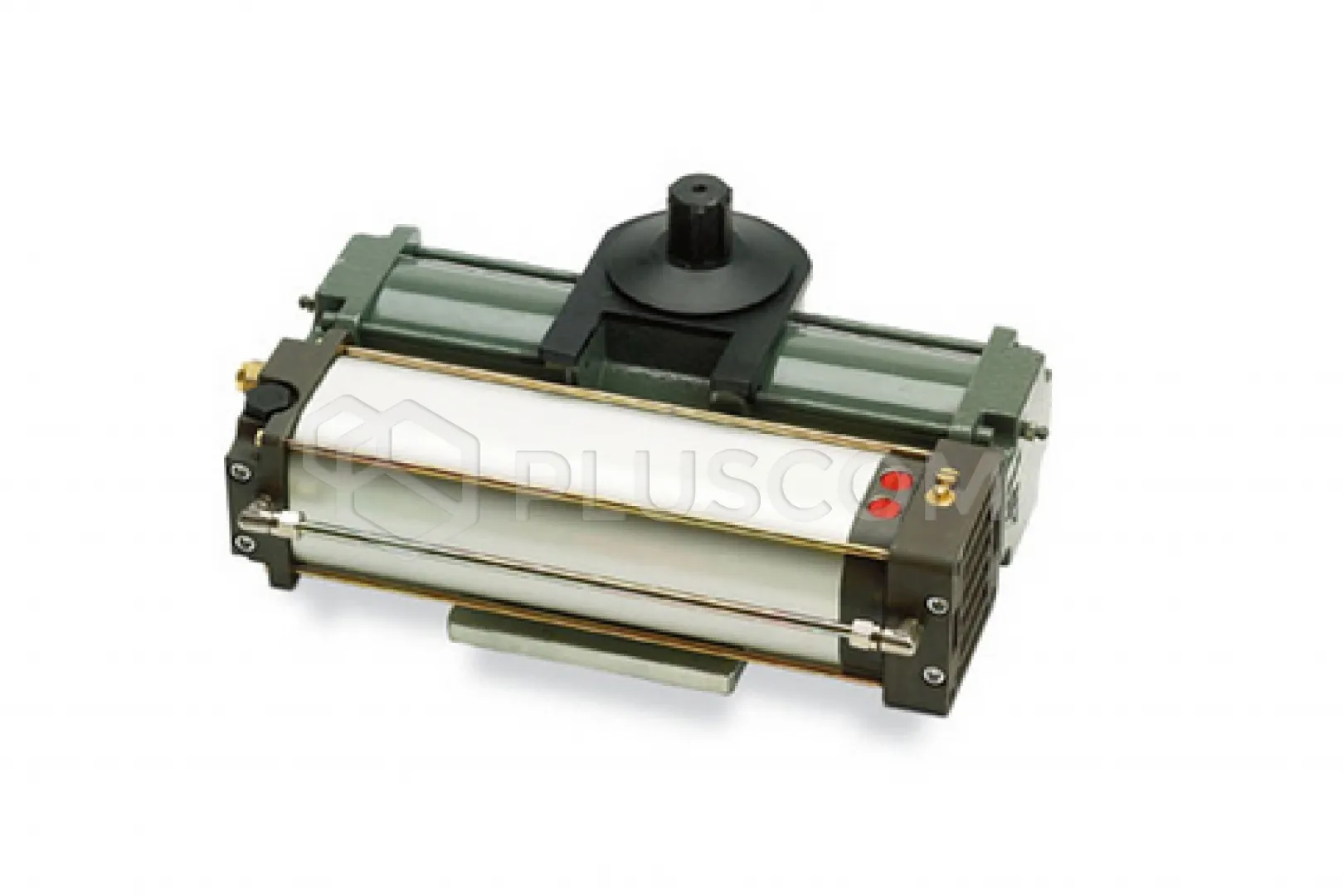

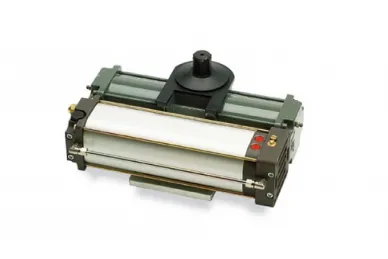

BFT 2601300 Underground self-locking hydraulic actuator (right) for swing gates SUB G DX

1254,38 EUR including 19.00% VAT
Product code: #37816
Manufacturer: BFT
  • Max. leaf length: 1.8m
  • Max. leaf weight: 800kg
  • Zasilanie silnika: 230V
  • For very intensive use
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2601300 Underground self-locking hydraulic actuator (right) for SUB G DX entrance gates


BFT 2601300 SUB G DX hydraulic actuator for an advanced solution intended for the automation of entrance gates. Its underground design ensures the appearance, and the solid construction is drained for many years.

FEATURES:

  • Hydraulic actuator for residential entrance gates and for work accessible
  • They have been used for gates with a leaf weight of up to 800 kg
  • Hydraulic force adjustment and detection
  • Use frequency up to 500 cycles on water
The monoblock design provides the possibility of very simple assembly, which has been extremely popular for a long time.

Slowing down of the silent, smooth closing that occurs in the event of the gate. A solution can be used to solve the slowing down in the need of any situation.

Control unit with programming display and new, updated programming based on scenarios.

Technical data:

  • RIGEL 6 control unit
  • Board power supply 230 V
  • Motor voltage 230 V
  • Power consumption 250 W
  • Maximum door/gate leaf width 1.8 m
  • Maximum door/gate leaf weight 800 kg
  • Maximum opening angle 180°
  • Opening time 33 s
  • Limit switch type Working time
  • Slowdown no
  • Locking Hydraulic opening/closing
  • Triangular key release
  • Impact reaction clutch
  • Frequency of use very intensive
  • Protection class IP67
  • Operating conditions -10 ÷ 60 °C
  • Connection no
Download
User manual 1.67 MB
