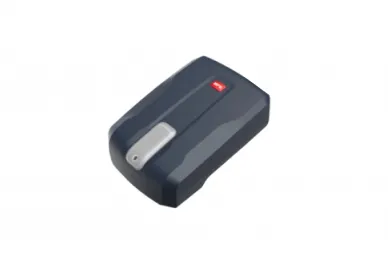

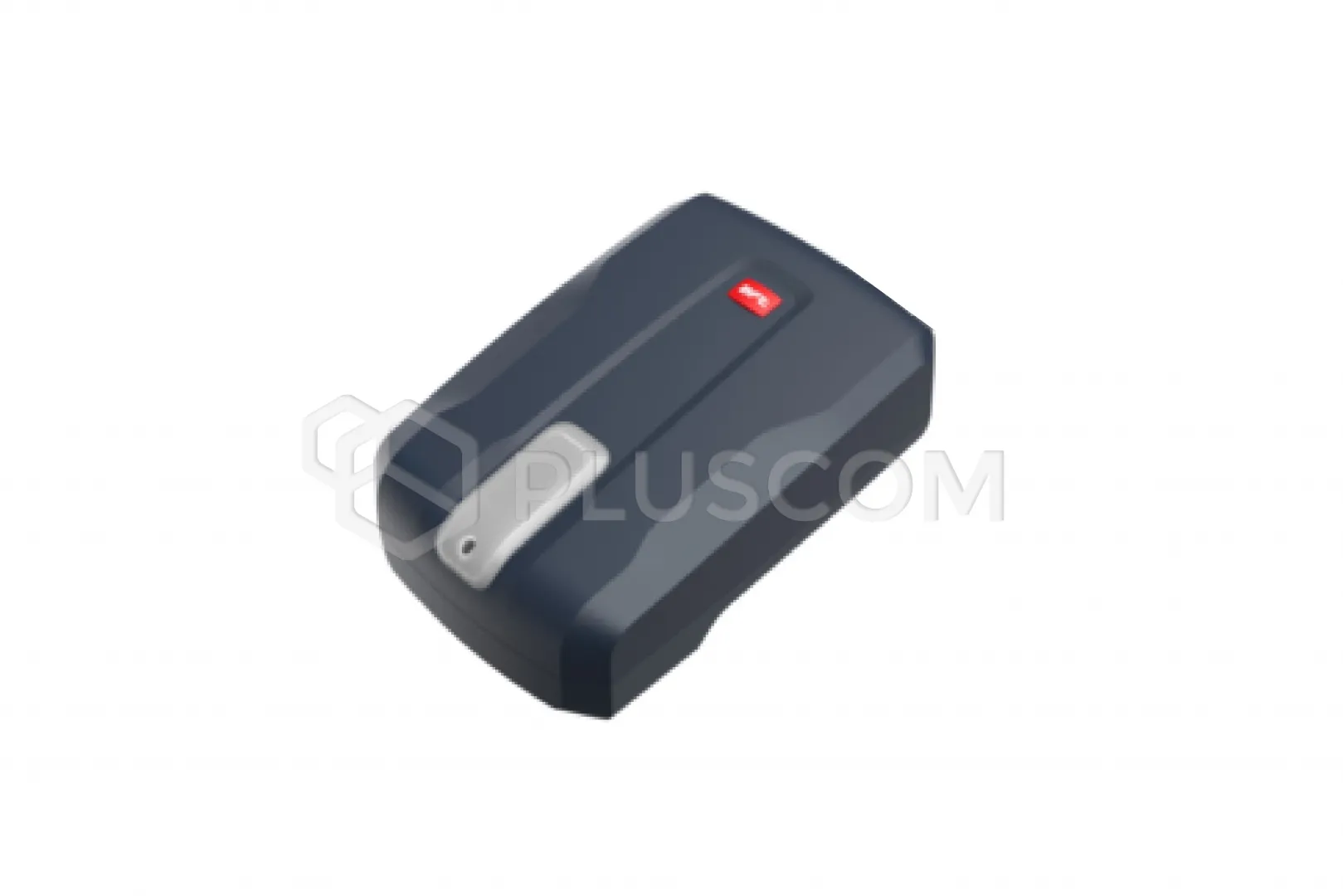

BFT 2601283 BOTTICELLI SMART BT 1250 garage door operator

382,99 EUR including 23.00% VAT
Product code: #37802
Manufacturer: BFT
  • Max. gate area: 16m2
  • Power supply: 24V
  • For very intensive work
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2601283 BOTTICELLI SMART BT 1250 garage door operator


WITHOUT GUIDE RAIL

A sectional garage door operator with a traction force of 120 kg, 24V power supply, for very intensive use. Max. door area 16m2. Opening speed 190 mm/sec.

FEATURES:

  • Fast and powerful motors: fast opening to minimize waiting times and intensive use of automation for all types of applications
  • Improved and fast mechanical installation: even by one person thanks to the new, fast Autoset procedure
  • Encoder and unique D-Track traction management system: for safe installation in all conditions
  • Integrated anti-theft system: models with control panel with full display offer an exclusive anti-theft function, the electronic board can become the control unit of a wired anti-theft system

Technical data:

  • Control unit - VENERE BT A DIS
  • Rated voltage - 24 V
  • Power absorbed - 236 W
  • Standby power consumption - 0.5 W
  • Traction and pull force - 1250 N
  • Number of daily movements at 60° - 100
  • Gate area - 16m2
  • Max. opening speed (chain rail) - 190 mm/sec
  • Limit switch type - Encoder + automatic limiter during opening
  • Slowing down - YES
  • Mechanical lock
  • Unlocking - Steel rope or cable
  • Impact reaction - D-Track
  • Protection class IP20
  • Operating environment (max.) - -20 ÷ 60 °C
  • Connectivity - YES
Download
User's Guide 1.12 MB
