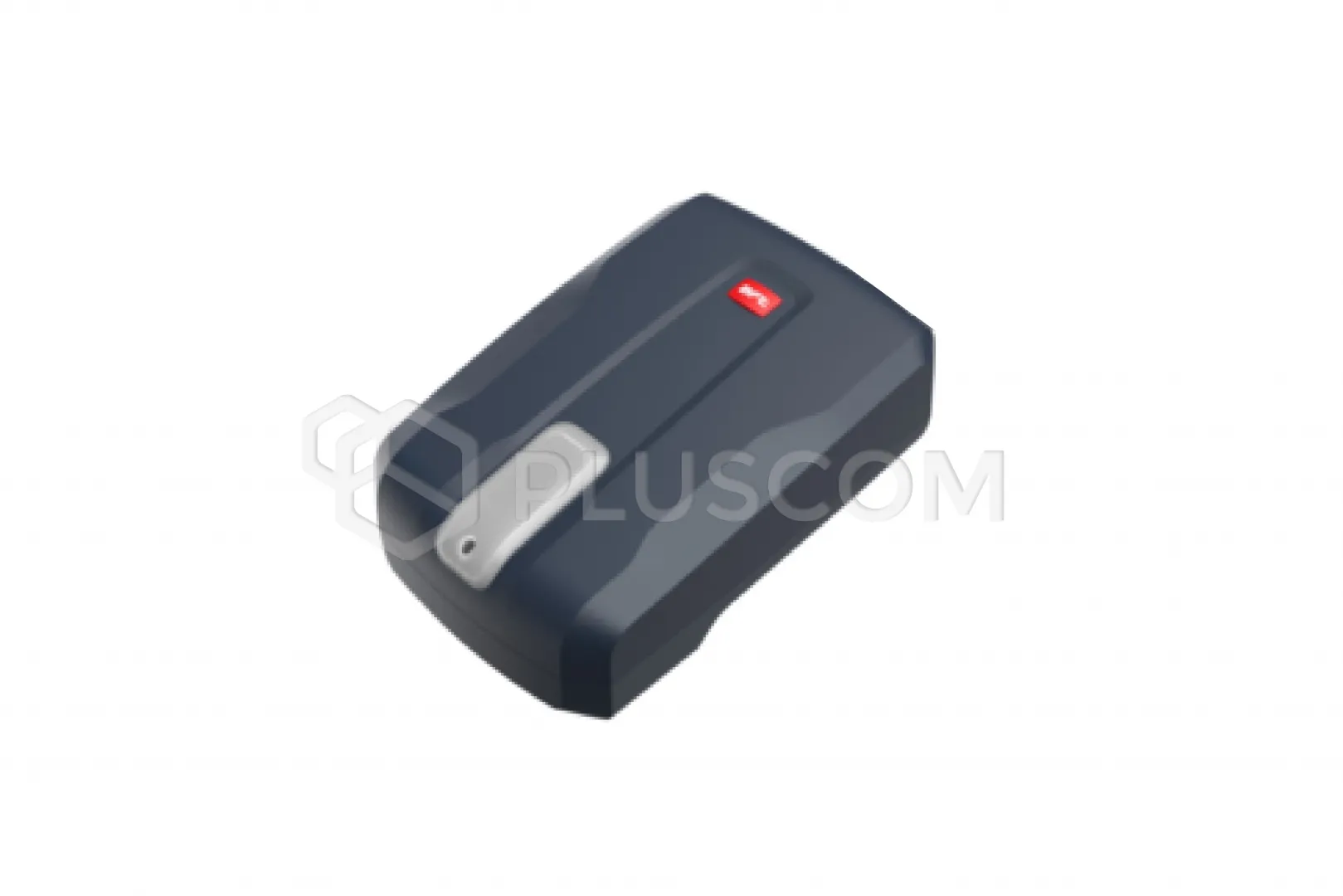

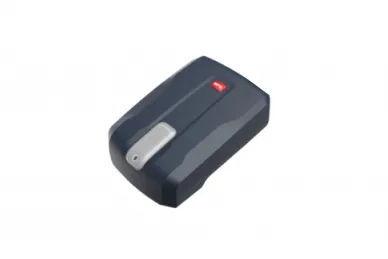

BFT 2601282 BOTTICELLI SMART BT 850 garage door operator

280,86 EUR including 23.00% VAT
Product code: #37801
Manufacturer: BFT
  • Max. gate area: 13m2
  • Max. force: 850N
  • Power supply: 24V
  • Degree of protection: IP 20
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2601282 Garage door operator BOTTICELLI SMART BT 850


WITHOUT GUIDE RAIL

A sectional garage door operator with a traction force of 80 kg, 24V power supply, for intensive use. Max. door area 13 m². Opening speed 210 mm/sec.

FEATURES:

  • Fast and powerful motors: fast opening to minimize waiting times and intensive use of automation for all types of applications
  • Encoder and unique D-Track traction management system: for safe installation in all conditions
  • Improved and fast mechanical installation: even by one person thanks to the new, fast Autoset procedure
  • Integrated anti-theft system: models with control panel with full display offer an exclusive anti-theft function, the electronic board can become the control unit of a wired anti-theft system

Technical data:

  • Protection degree - IP20
  • Operating environment (max) - -20 ÷ 60 °C
  • Connectivity - YES
  • Control unit - VENERE BT A DIS
  • Rated voltage - 24 V
  • Power consumption - 200 W
  • Traction force and pull force - 850 N
  • Number of daily movements at an angle of 60° - 50
  • Gate area - 13m2
  • Max. opening speed (chain rail) - 210 mm/sec
  • Max. opening speed (belt rail) - 240 mm/sec
  • Limit switch type - Encoder + automatic limiter during opening
  • Slowdown - YES
  • Mechanical lock
  • Unlocking - Steel rope or cable
  • Impact reaction - D-Track
Download
User's Guide 1.12 MB
