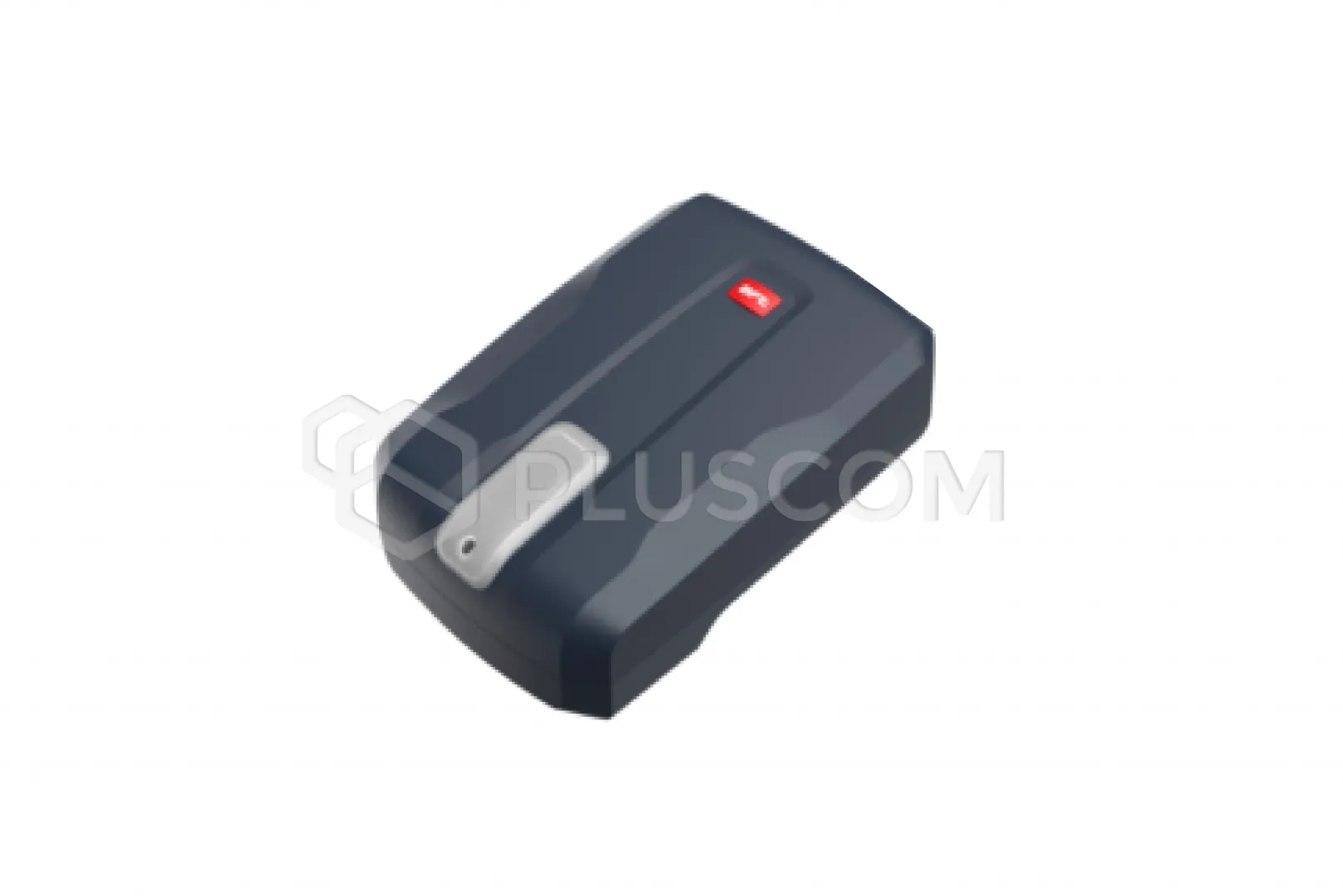

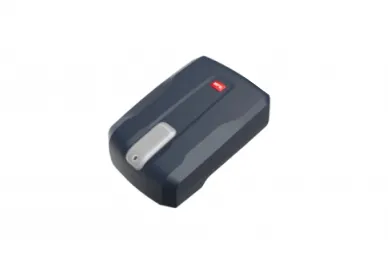

BFT 2601281 Garage door operator BOTTICELLI BT A 650

254,26 EUR including 19.00% VAT
Product code: #37800
Manufacturer: BFT
  • Max. gate area: 10m2
  • Power supply: 24V
  • For intensive use
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2601281 BOTTICELLI BT A 650 garage door operator


WITHOUT GUIDE RAIL

24 V sectional garage door operator with a pulling force of 60 kg for intensive use. Maximum door/gate area up to 10m2. Opening speed 240 mm / s. D-Track system.

FEATURES

  • Fast and powerful motors: fast opening to minimize waiting times and intensive use of automation for all types of applications\
  • Encoder and unique D-Track traction management system: for safe installation in all conditions
  • Improved and fast mechanical installation: even by one person thanks to the new, fast Autoset procedure
  • Integrated anti-theft system: models with control panel with full display offer an exclusive anti-theft function, the electronic board can become the control unit of a wired anti-theft system

Technical data:

  • Power consumption - 200 W
  • Type of limit switch - Encoder + automatic limit switch during opening
  • Operating environment (max.) - -20 ÷ 60 °C
  • Traction and pull force - 65O N
  • Slowing down - YES
  • Connectivity - no
  • Number of daily movements at 60° - 50
  • Mechanical lock
  • Gate area - 10m2
  • Unlocking - Steel cable or wire
  • Standby power consumption - 0.5 W
  • Control unit - VENERE BT A ETD
  • Max. opening speed (chain rail) - 210 mm/sec
  • Impact reaction - D-Track
  • Rated voltage - 24 V
  • Max. opening speed (belt rail) - 240 mm/sec
  • Protection class - IP20
Download
User's Guide 1.12 MB
