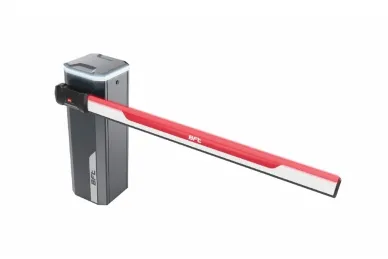

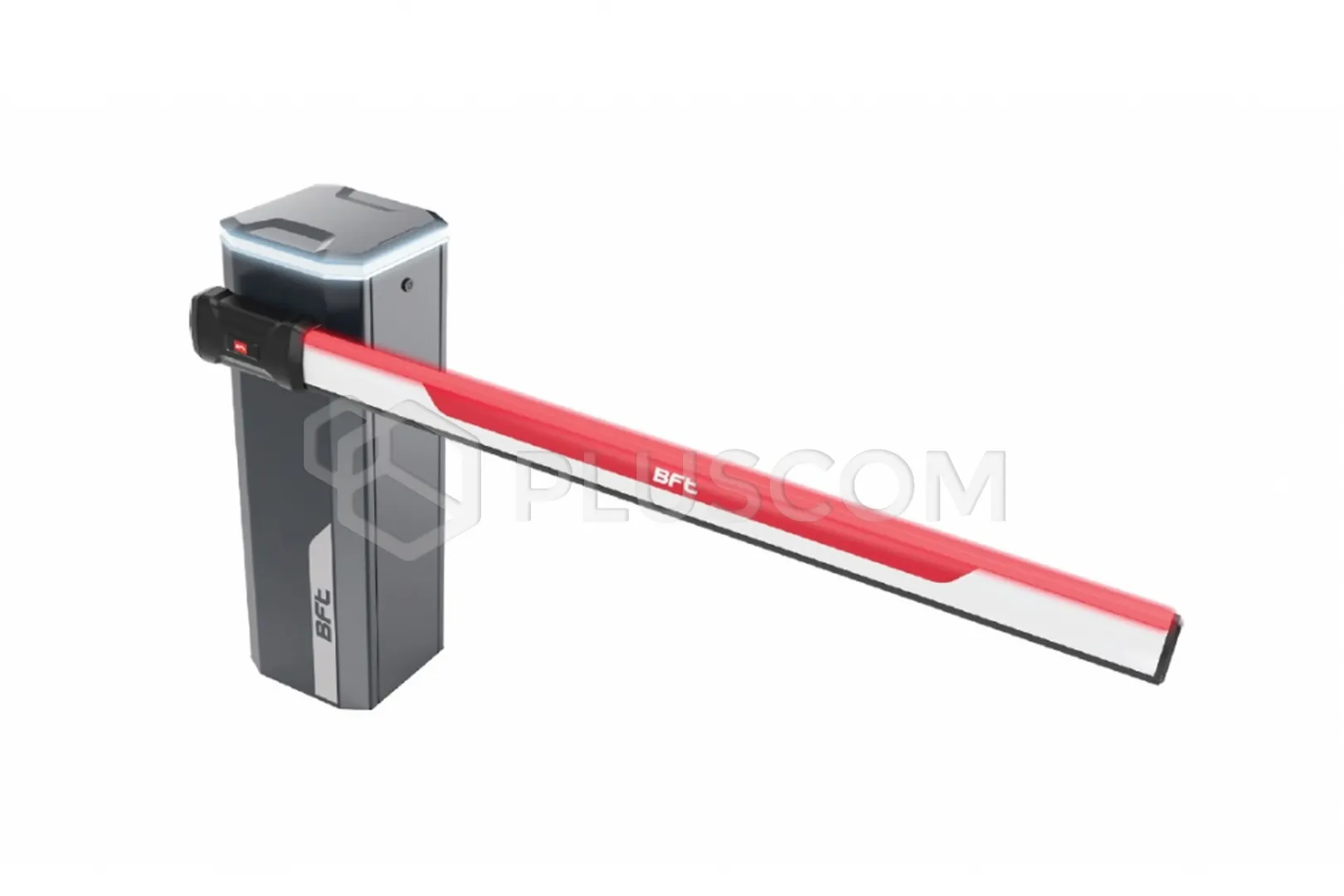

BFT 2601275 MAXIMA ULTRA 36 XL RAL 230V Barrier up to 6m

BFT 2601275 MAXIMA ULTRA 36 XL RAL 230V CENTRAL UNIT FOR ARM 2-6m, VERSION WITH STRONGER SPRING

Electromechanical barrier for 230V with inverter and asynchronous three-phase motor for very intensive work.
It allows to manage passages from 2 to 6 meters with an arm fully equipped with accessories in one model.

The barrier unit should be equipped with one of the following top cover options:

• base without lamps in non-standard RAL color
• cap in non-standard RAL color with RGB lamps with flashing, traffic signaling, diagnostics functions

FEATURES:

• opening time from 0.7 to 4 seconds with slow-down function
• three-phase asynchronous motor
• designed for continuous operation
• mechanical lock
• stainless steel housing
• built-in encoder
• maintenance available from three different points - from the top of the barrier, through the front door or the rear
• three arm mounting points - for different loads

The ROD & CRANK solution used provides protection against vandalism, preventing unauthorized opening of the barrier. At the same time, it provides mechanical acceleration and deceleration of the arm with smooth movement.

TECHNICAL DATA:

• Control unit: CSB-XT
• Usable passage light: from 2m to 6m
• Use frequency: 5,000 cycles per day
• Open/close time: 0.7 to 3.9 s
• Motor type: asynchronous 3-phase
• Gear type: in oil bath
• Inverter: yes
• Impact response: optical encoder
• Mechanical lock, ROD & CRANK gear(anti-vandal)
• Unlocking: inside the structure, special crank
• Steel casing in individual colour (choice of colour according to RAL palette)
• Operating temperature range: -40°C - +60°C
• Tightness class: IP55
