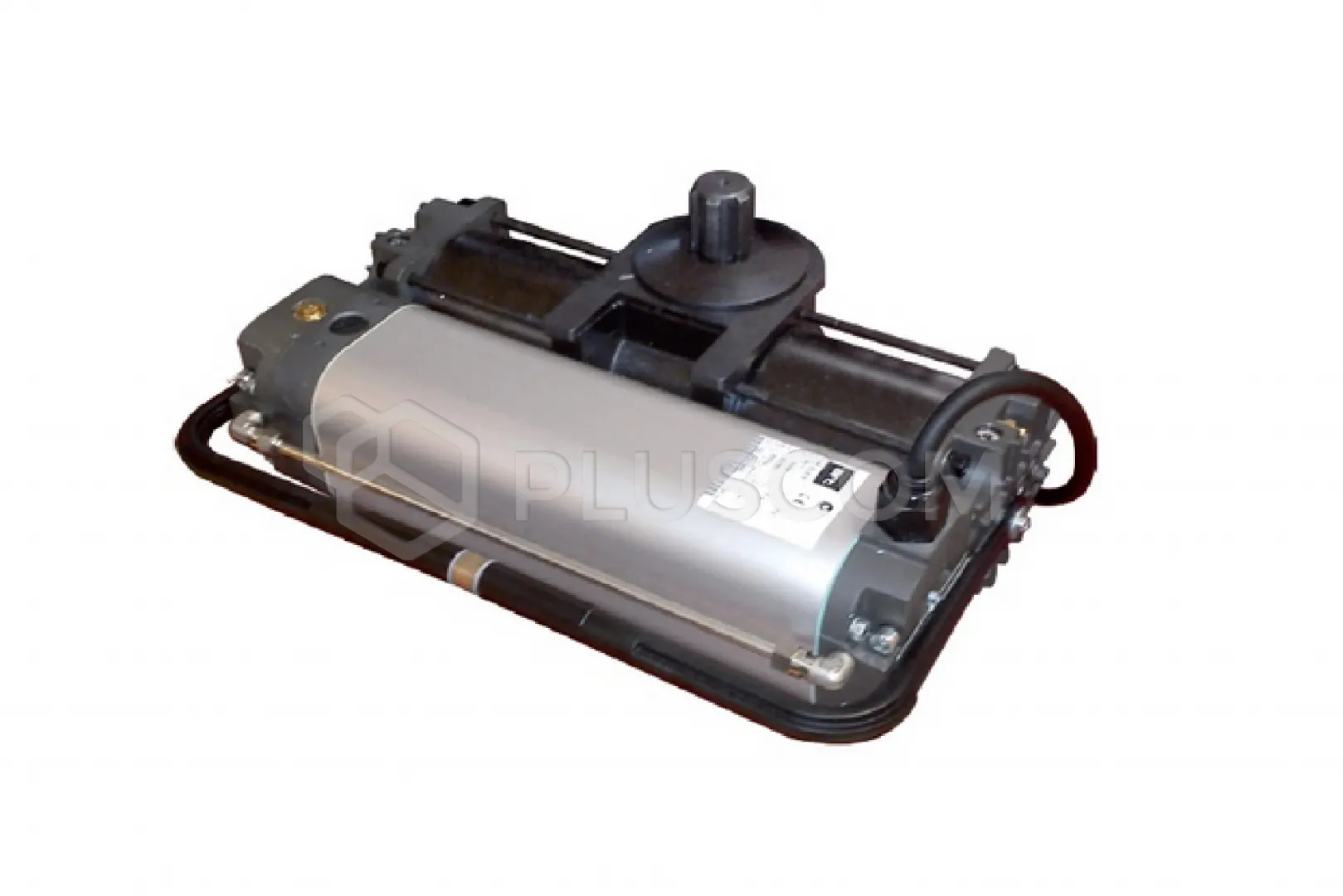

BFT 2601016 Underground hydraulic actuator for swing gates SUB BT

BFT 2601016 Underground hydraulic actuator for swing gates SUB BT

Low voltage hydraulic actuator for very intensive use, suitable for any type of residential, industrial or housing estate application. Compact and robust, it can automate gate leaves up to 2.5 m wide and weighing up to 800 kg.
Equipped with mechanical stops and a virtual encoder, guaranteeing maximum safety against crushing thanks to electronic slowdown and the D-Track system. This actuator has limit switches and is equipped with an electronic obstacle detection system. It is not necessary to install mechanical stops.

The actuator can be equipped with an emergency power supply.

FEATURES:

• Hydraulic actuator for residential swing gates and for intensive use
• Designed for gates with a leaf weight of up to 800 kg and a length of 2.5 meters
• Equipped with limit switches
• No need to install mechanical stops
• Electronic obstacle detection
• Usage frequency up to 500 cycles per day
• Thanks to 24V technology, SUB BT actuators can be equipped with emergency power supply

Control unit with programming display and new, simplified programming based on scenarios.

Wide range of mechanical stop adjustment inside the actuator.

The design consisting of a single block allows for aesthetic, exceptionally reliable despite the passage of time.

Technical data:

• THALIA P control unit
• Board power supply 230 V
• Motor voltage 24 V
• Power consumption 90 W
• Maximum door/gate wing width 2.5 m
• Maximum door/gate wing weight 800 kg
• Maximum opening angle 120 °
• Opening cycle time 13 s
• Slowdown yes
• Locking Opening/closing hydraulics
• Release Personalised key
• Impact response D-Track
• Use frequency very intensive
• IP67 protection class
• Environmental conditions -20 ÷ 60 °C
