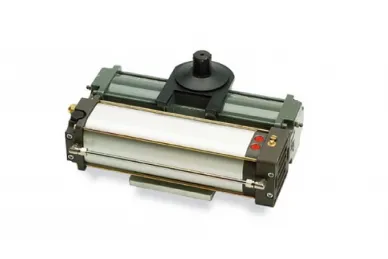

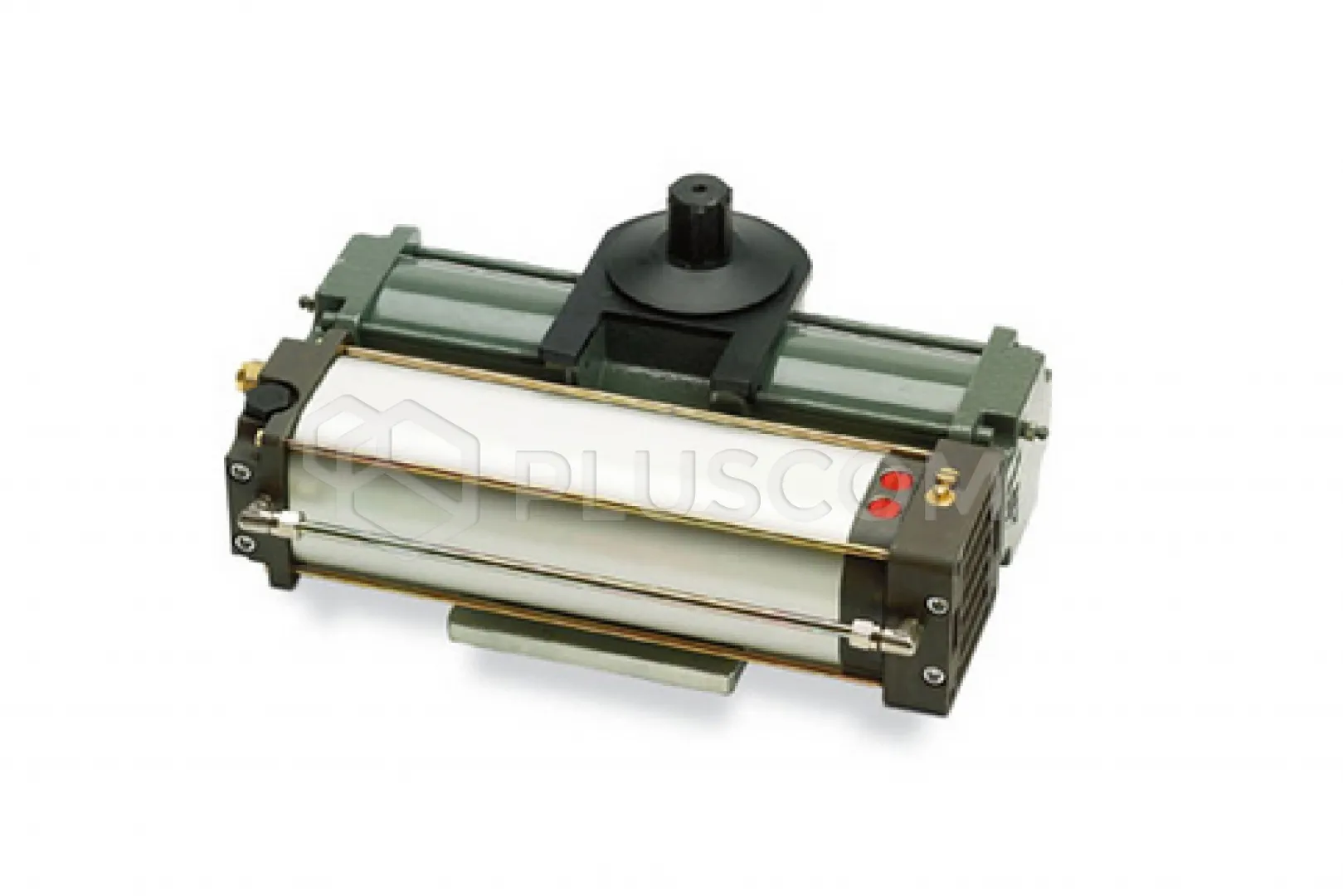

BFT 2600975 Underground hydraulic actuator, non-self-locking (right) for swing gates SUB ER DX

BFT 2600975 Underground non-self-locking hydraulic actuator (right) for swing gates SUB ER DX

BFT 2600975 is an advanced, underground hydraulic actuator designed to automate swing gates. The SUB ER DX model is distinguished by its high efficiency and reliability, making it an excellent choice for both private and commercial users.

FEATURES:

• Hydraulic actuator for residential swing gates and for intensive use
• Designed for gates with a leaf weight of up to 800 kg
• Hydraulic force regulation and obstacle detection
• Frequency of use up to 500 cycles per day

The design consisting of a single block allows for aesthetic, exceptionally reliable installations despite the passage of time.

Slowing down during closing guarantees quiet and smooth movement even for the largest door leafs. The adjusting screw also allows the slowing down intensity to be adjusted to the requirements of any situation.

Control unit with programming display and new, simplified scenario-based programming.

Technical data:

• Impact response Hydraulic clutch
• Use frequency very intensive
• Protection level IP67
• Working environment (max.) -10 ÷ 60 °C
• Control unit RIGEL 6
• Communication no
• Board power supply 230 V
• Motor voltage 230 V
• Power consumption 250 W
• Max. door/gate wing width 2.5 m
• Max. door/gate wing weight 800 kg
• Maximum angle 130 °
• Maneuver time 14+slow. s
• Type of limit switch working time
• Slowdown YES
• Lock Electric lock
• Unlocking With change of direction/position
