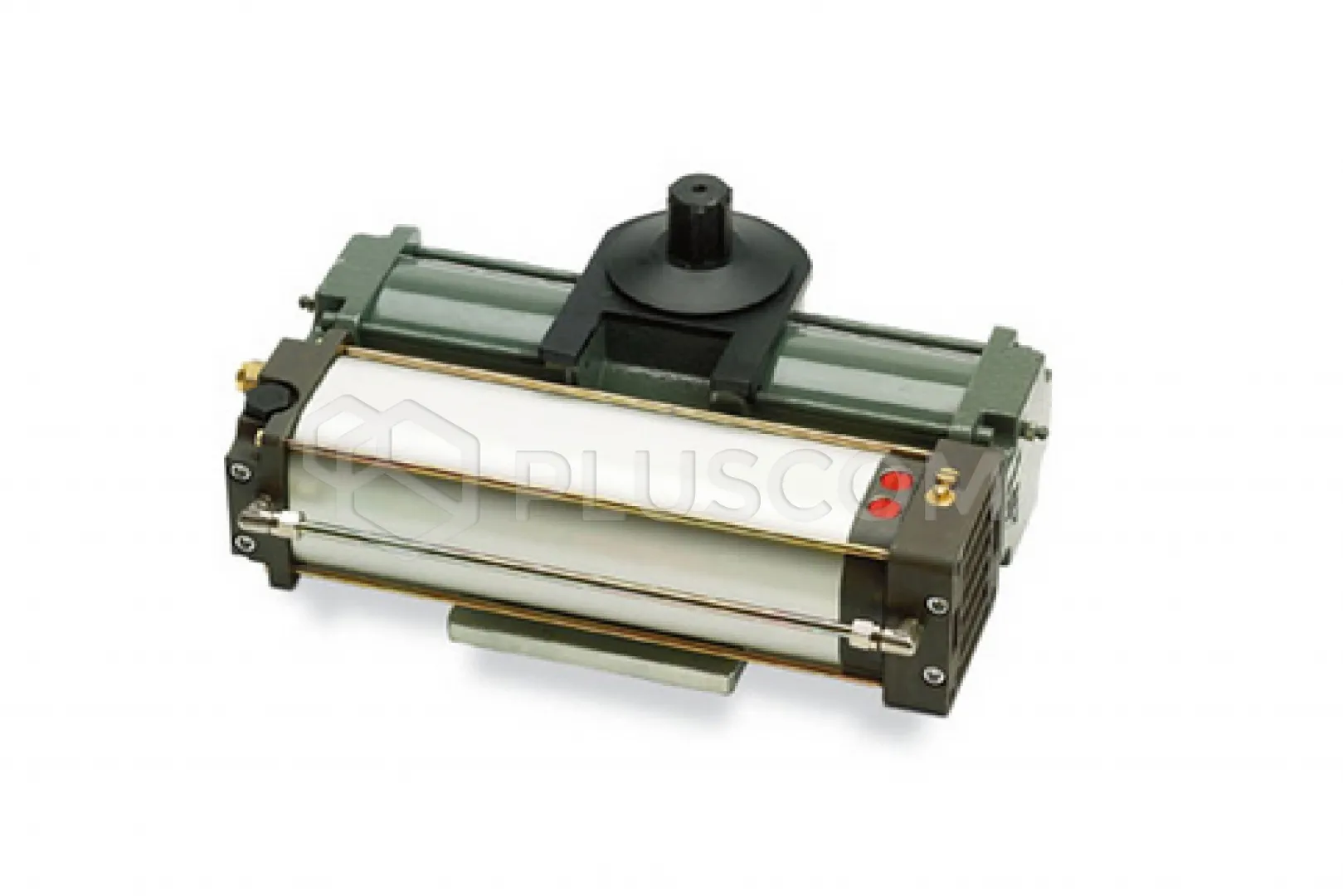

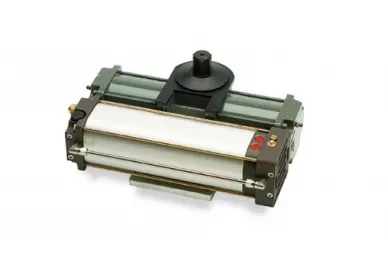

BFT 2600974 Underground hydraulic actuator, non-self-locking (left) for swing gates SUB ER SX

BFT 2600974 Underground hydraulic actuator non-self-locking (left) for swing gates SUB ER SX

BFT 2600974 SUB ER SX is an advanced, underground hydraulic actuator designed to automate swing gates. Its solid construction and advanced technology make it the ideal solution for demanding users, both in private and commercial applications.

FEATURES:

• Hydraulic actuator for residential swing gates and for intensive use
• Designed for gates with a leaf weight of up to 800 kg
• Hydraulic force regulation and obstacle detection
• Frequency of use up to 500 cycles per day

The monoblock design allows for very neat assembly, which is extremely reliable for a long time.

The closing slowdown guarantees quiet, smooth movements even for the largest gates. In addition, the adjustment screw allows the slowdown intensity to be adjusted to the needs of each situation.

Control unit with programming display and new, simplified scenario-based programming.

Technical data:

• Board power supply 230 V
• Electromagnetic lock
• Motor voltage 230 V
• Reversible release
• Power consumption 250 W
• Impact response Hydraulic clutch
• Maximum door/gate leaf width 2.5 m
• Use frequency very intensive
• Maximum door/gate leaf weight 800 kg
• Protection class IP67
• Maximum angle 130 °
• Environmental conditions 14 ÷ 140 °F
• Cycle time 14 + deceleration s
• Interconnectivity no
• Type of limit switch operation time
• RIGEL 6 control unit
• Slowdown Yes
