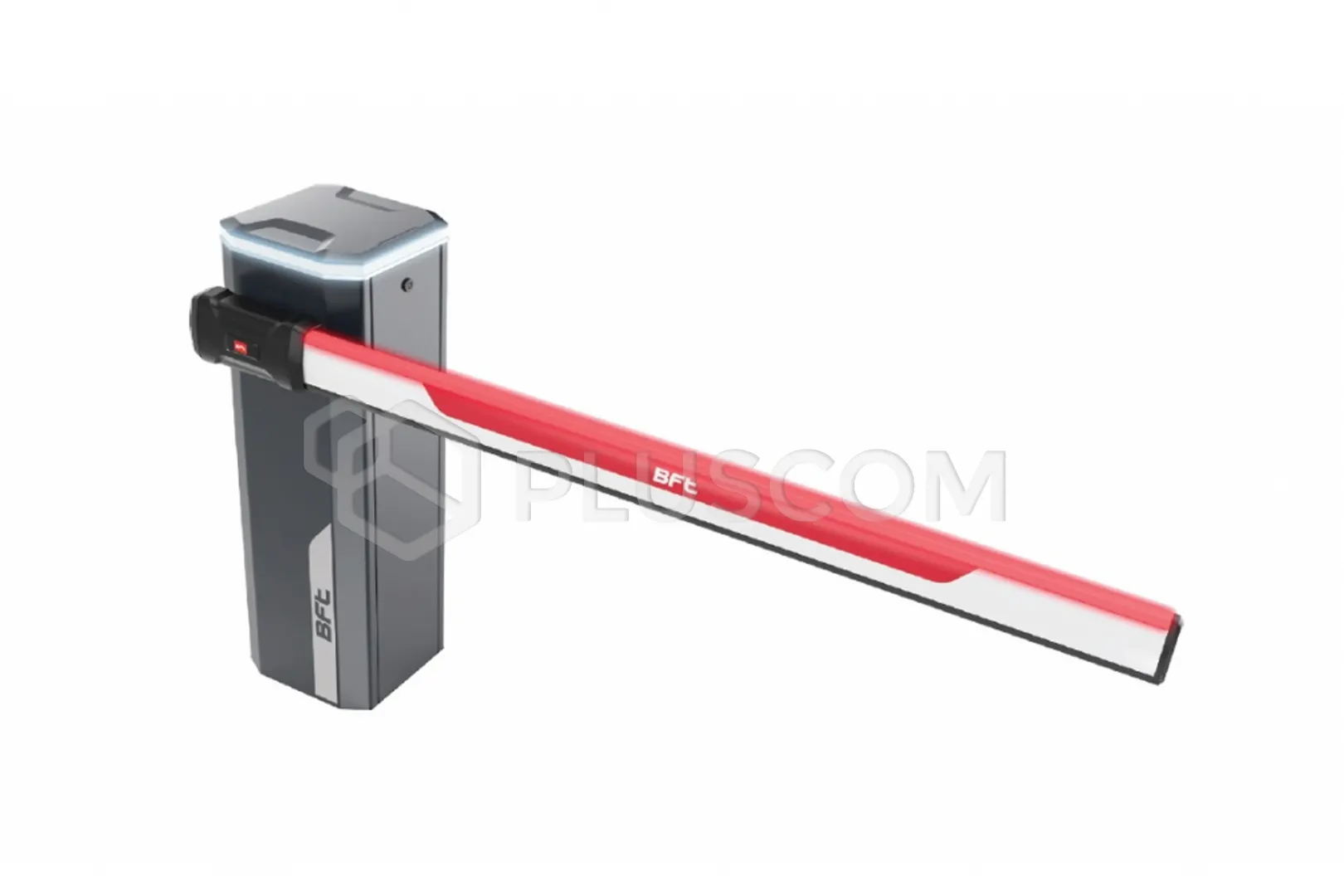

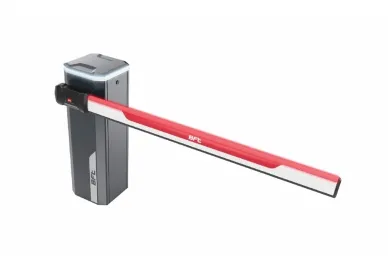

BFT 2600943 MAXIMA ULTRA 36 230V Barrier up to 6m

4072,04 EUR including 22.00% VAT
Product code: #37746
Manufacturer: BFT
  • Steel casing RAL 7015
  • Bar length up to 6m
  • Opening time: 0.7 - 3.9 s
  • Motor type: asynchronous, three-phase
  • Top cover not included
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2605244 LIGHT PS60-IP67 LED Lighting Kit BFT 2601263 OMEGA PS MAXIMA U36 - Arm holder with cover and mounting screws BFT 2605243 LIGHT PS/ES 40-IP67 LED lighting kit BFT 2600942 Top cover of the barrier with LED lighting - CROWN RGB MAXIMA U36 BFT 2605242 LIGHT PS/ES 40-IP67 LED lighting kit BFT 2605241 LIGHT PS/ES 30-IP67 LED lighting kit BFT 2601378 MU36 and GIOTTO ULTRA - (BOOM PS50) Aluminum arm L= 5m BFT 2601377 MU36 and GIOTTO ULTRA - (BOOM PS40) Aluminum arm L= 4m BFT 2601376 MU36 and GIOTTO ULTRA - (BOOM PS30) Aluminum arm L= 3m BFT 2601327 Top cover of the barrier without LED lighting - CROWN MAXIMA U36

BFT 2605378 MAXIMA ULTRA 36 INOX 230V CENTRAL UNIT FOR ARM 6m


Electromechanical barrier for 230V with inverter and asynchronous three-phase motor for very intensive work.
It allows to manage passages up to 6 meters with an arm fully equipped with accessories in one model.

The barrier unit should be equipped with one of the following top cover options:
  • top cover without lamps
  • top cover with RGB lamps with flashing, traffic signal, diagnostics functions

FEATURES:

  • opening time from 0.7 to 4 seconds with slow-down function
  • three-phase asynchronous motor
  • designed for continuous operation
  • mechanical lock
  • housing made of steel in RAL 7015 color
  • built-in encoder
  • maintenance available from three different points - from the top of the barrier, through the front door or the rear
  • three arm mounting points - for different loads
The ROD & CRANK solution used provides protection against vandalism, preventing unauthorized opening of the barrier. At the same time, it provides mechanical acceleration and deceleration of the arm with smooth movement.

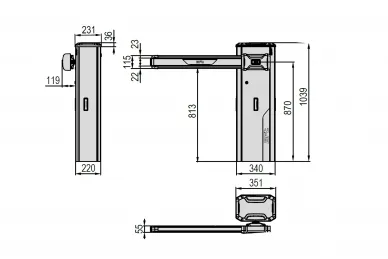

Dimensions:

Dimensions:


TECHNICAL DATA:

  • Control unit: CSB-XT
  • Usable passage light: up to 6m
  • Use frequency: 5,000 cycles per day
  • Open/close time: 0.7 to 3.9 s
  • Motor type: asynchronous 3-phase
  • Gear type: in oil bath
  • Inverter: yes
  • Impact response: optical encoder
  • Mechanical lock, ROD & CRANK gear(anti-vandal)
  • Unlocking: inside the structure, special crank
  • Powder coated steel housing RAL 7015
  • Operating temperature range: -40°C - +60°C
  • Tightness class: IP55
Download
User manual 5.89 MB
