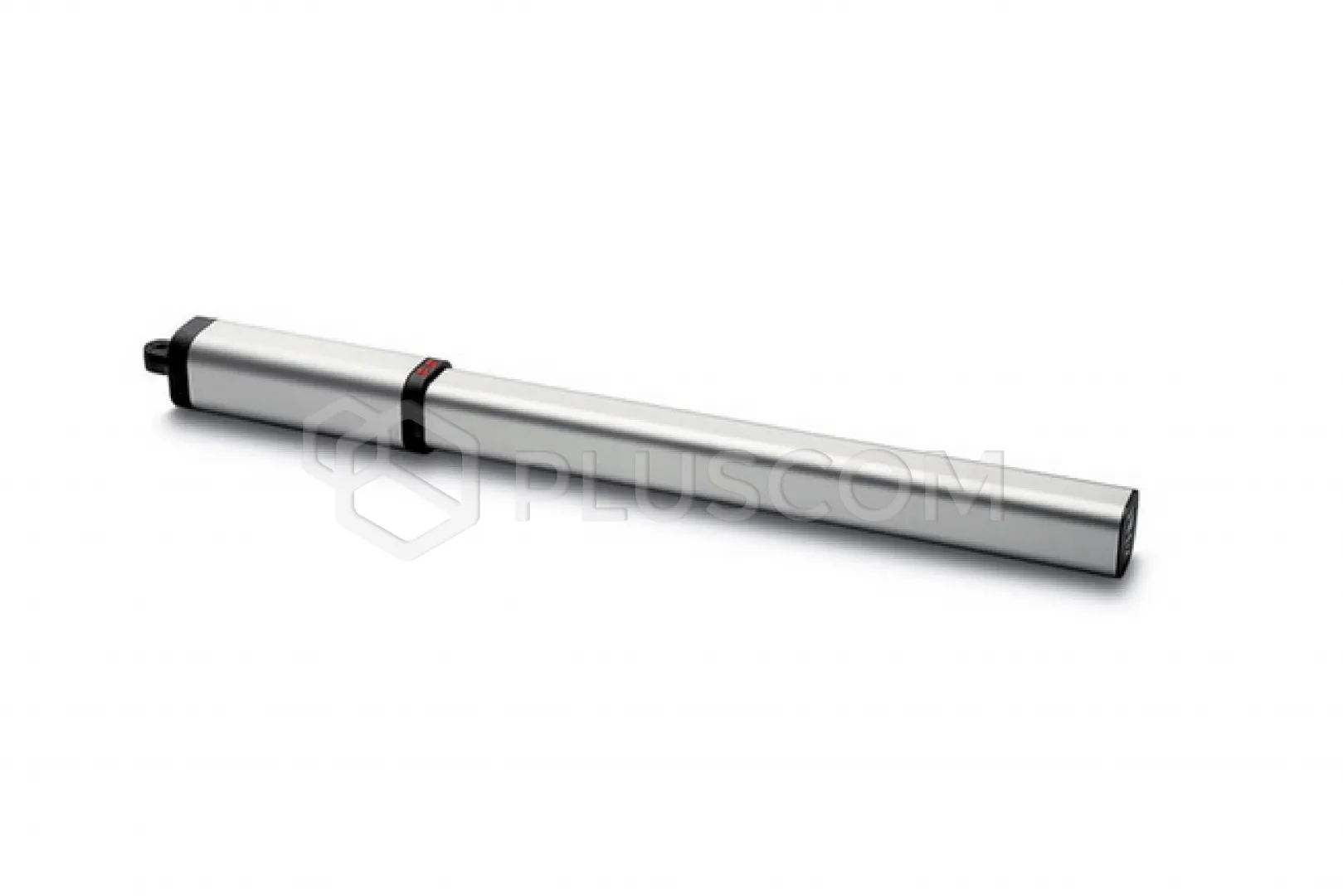

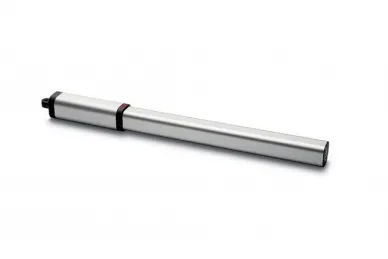

BFT 2600937 Hydraulic swing gate operator LUX B

742,00 EUR including 23.00% VAT
Product code: #37742
Manufacturer: BFT
  • Max. leaf length: 2m
  • Max. leaf weight: 300kg
  • Engine power supply: 230V
  • For very intensive work (500 cycles/24h)
  • The use of mechanical bumpers is required

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2600937 Hydraulic drive for swing gates LUX B


230 V hydraulic actuator for hinged doors up to 2 m in size and weighing 300 kg. Useful stroke 270 mm, travel time 17 s and maximum opening angle 123 °. Locking system: Hydraulic closing.

FEATURES:

  • Non-self-locking hydraulic actuator
  • Hydraulic force and obstacle detection adjustment
  • Frequency of use up to 500 cycles per day
  • Does not have limit switches, bumper assembly required
  • Has a hydraulic lock when closing
Durable, anodized aluminum construction.

Bypass valves in 230 V versions enable precise adjustment of the torque during opening and closing in a separate and independent manner.

Slowing down during closing (version R) guarantees quiet and smooth movement even with the largest sashes. The adjusting screw also allows the intensity of the slowing down to be adjusted to the requirements of any situation.

Technical data:

  • Slowdown no
  • Lock Hydraulic closing
  • Unlocking Triangular key
  • Impact reaction Hydraulic clutch
  • Use frequency very intensive
  • Protection class IP57
  • Working environment (max.) -10 ÷ 60 °C
  • Control unit RIGEL 6
  • Communication no
  • Motor voltage 230 V
  • Power consumption 250 W
  • Max. door/gate leaf width 2 m
  • Max. door/gate leaf weight 300 kg
  • Usable piston stroke 270 mm
  • Maximum angle 123 °
  • Maneuver time 17 s
  • Limit switch type operating time

Download
User manual 2.18 MB
