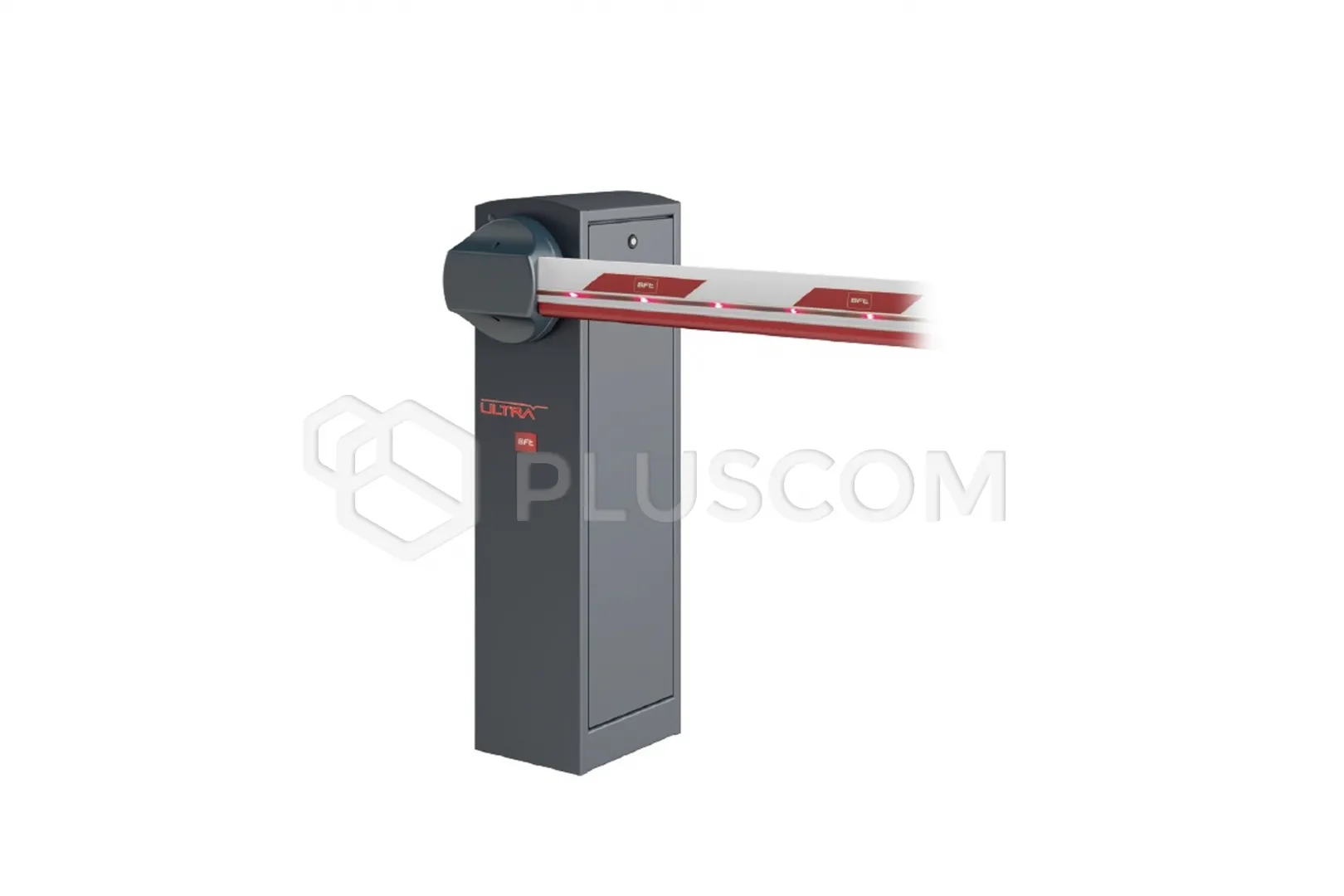

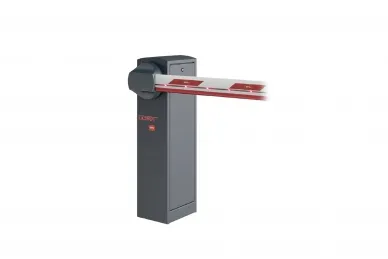

BFT 2600872 MAXIMA ULTRA 68 Barrier column up to 8m

3982,74 EUR including 23.00% VAT
Product code: #37722
Manufacturer: BFT
  • Permissible arm lengths: 8m
  • Opening time: 4.5-6s
  • Motor type: asynchronous, three-phase
  • Oil bath gear motor
  • Anti-vandalism protection thanks to crankshaft system
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2605231 Black spring for MAXIMA ULTRA 68 F=11 barrier (MLC11) BFT 2605230 EBB KIT ATML BFT 2605229 IS ATML Internal reinforcement for ATML arms BFT 2601318 Protective rubbers for 8m round arm MAXIMA, PCA ATM 8 BFT 2601313 LED lighting kit for barrier arm 5m (R/G) KIT ATM LIGHT 5 R/G 2W LUCI LED RED/GRE (2 cables) BFT 2601312 LED lighting kit for barrier arm 3m (R/G) KIT ATM LIGHT 3 R/G 2W LUCI LED RED/GRE BFT 2601311 Purple spring for MAXIMA ULTRA 68 barrier F=9.5 (MLC9.5) BFT 2601310 Yellow spring for MAXIMA ULTRA 68 F=9 barrier (MLC9) BFT 2614120 MITTO COOL C4 remote BFT 2601276 ALLU 2 MAXIMA ULTRA LED lighting power supply module

BFT 2600872 MAXIMA ULTRA 68 230V CENTRAL UNIT FOR 8m ARM (P940074 00002)


230 V electromechanical barrier with asynchronous three-phase motor and inverter to control entrances up to 8.0 m. Opening time 4.5-6.0s with slowdown.
Suitable for installation in areas with high traffic frequency and frequent reversal of the barrier's direction of movement (e.g. toll booths on motorways, car parks with high traffic frequency, etc.). Version without spring. RAL 7015 colour.

Three-phase induction motor inverter allows precise control and management of the barrier's speed. In addition, it provides excellent acceleration and deceleration dynamics, which guarantees exceptionally quiet operation. The three-phase motor itself eliminates the need for maintenance, provides exceptional reliability and quiet operation. Due to the fact that it does not cause sparking, it is also suitable for use in hazardous areas.

Reduction unit in oil bath guarantees exceptional durability and does not require maintenance. It also ensures exceptionally quiet operation and no possibility of changing the direction of movement.

KEY FEATURES:

  • 230V motor with inverter
  • built-in CSB-XT control unit with LCD display
  • housing prepared in cataphoresis process and powder coated
  • safety is ensured by obstacle detection function
  • when hitting an obstacle, the barrier stops and reverses movement
  • equipped with release when opening and closing
  • integrated radio receiver with dynamically changing code allows to memorize 2048 remote controls
  • electronic adjustment of arm position and force
  • characterized by very high durability

TECHNICAL DATA:

  • Motor power supply: 230V
  • Control unit: CSB-XT
  • Usable passage light: up to 8m
  • MCBF: up to 5 million cycles without failure
  • Open/close time: 4.5-6s
  • Motor type: asynchronous 3-phase
  • Gear type: in oil bath
  • Inverter: yes
  • Impact response: optical encoder
  • Mechanical lock, ROD & CRANK gear(anti-vandal)
  • Unlocking: inside the column barrier
  • Housing: powder coated steel RAL 7015
  • Operating temperature range: -30°C - +60°C
  • Tightness class: IP54
Download
User manual 1.91 MB
