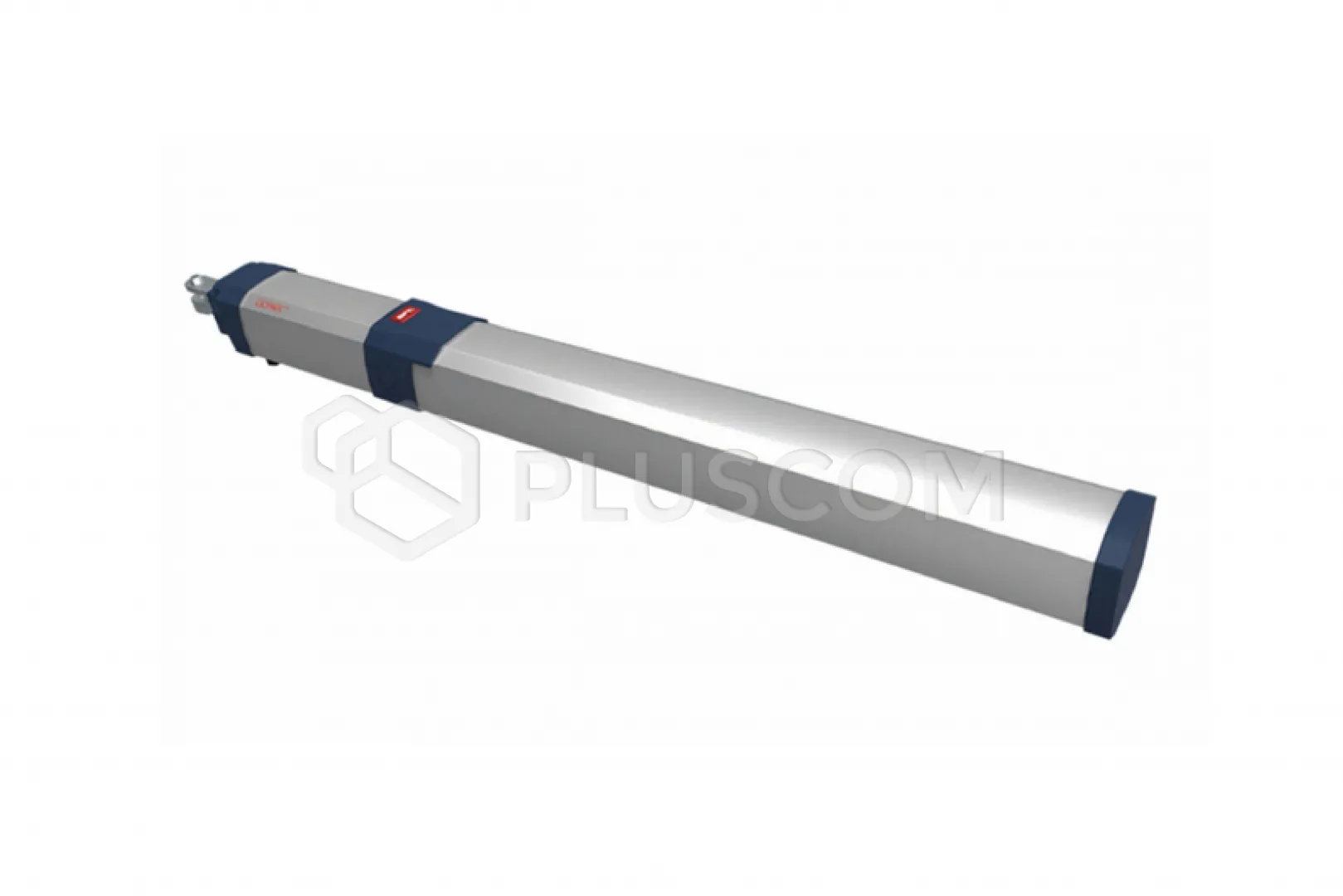

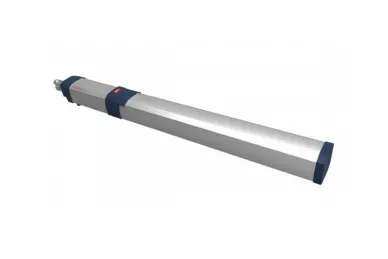

BFT 2600869 Hydraulic swing gate operator GIUNO ULTRA BT A20

BFT 2600869 Hydraulic swing gate operator GIUNO ULTRA BT A20

Hydraulic actuator with 24 V motor for swing gates up to 2 m wide and weighing 300 kg for very intensive use. Opening time 14 s. Lock on opening and closing (can be switched off). Magnetic limit switches.

FEATURES:

• 24V powered motor
• Electronic force regulation and obstacle detection ensure complete safety of use
• Operating frequency up to 500 cycles per day
• Magnetic limit switches and adjustable release length enable smooth and precise operation
• Built-in hydraulic locks ensure effective gate locking
• Drive disengagement using a triangular key

Main features Control units with display and new, simplified programming based on scenarios.

Thanks to the exclusive lock selection system, all actuators can be converted into a variant with a direction change mechanism, with an opening lock, a closing lock or a double lock. Simply turn the key.

New magnetic limit switch system, which combined with D-Track technology allows maximum precision of the manoeuvre and positioning. Double sensor system for precise definition of the final slowdowns of the manoeuvre.

Technical data:

• Operating environment (max.) -20 ÷ 60 °C
• Board power supply 230 V
• Communication no
• Motor voltage 24 V
• Power consumption 90 W
• Max. door/gate leaf width 2 m
• Max. door/gate leaf weight 300 kg
• Usable piston stroke 270 mm
• Maximum angle 110 °
• Manoeuvre time 14 s
• Limit switch type Magnetic
• Slowdown YES
• Lock Selection in the opening/closing mechanism
• Unlocking Triangular key
• Impact response D-Track
• Frequency of use very intensive
• Protection class IP55
• THALIA control unit
