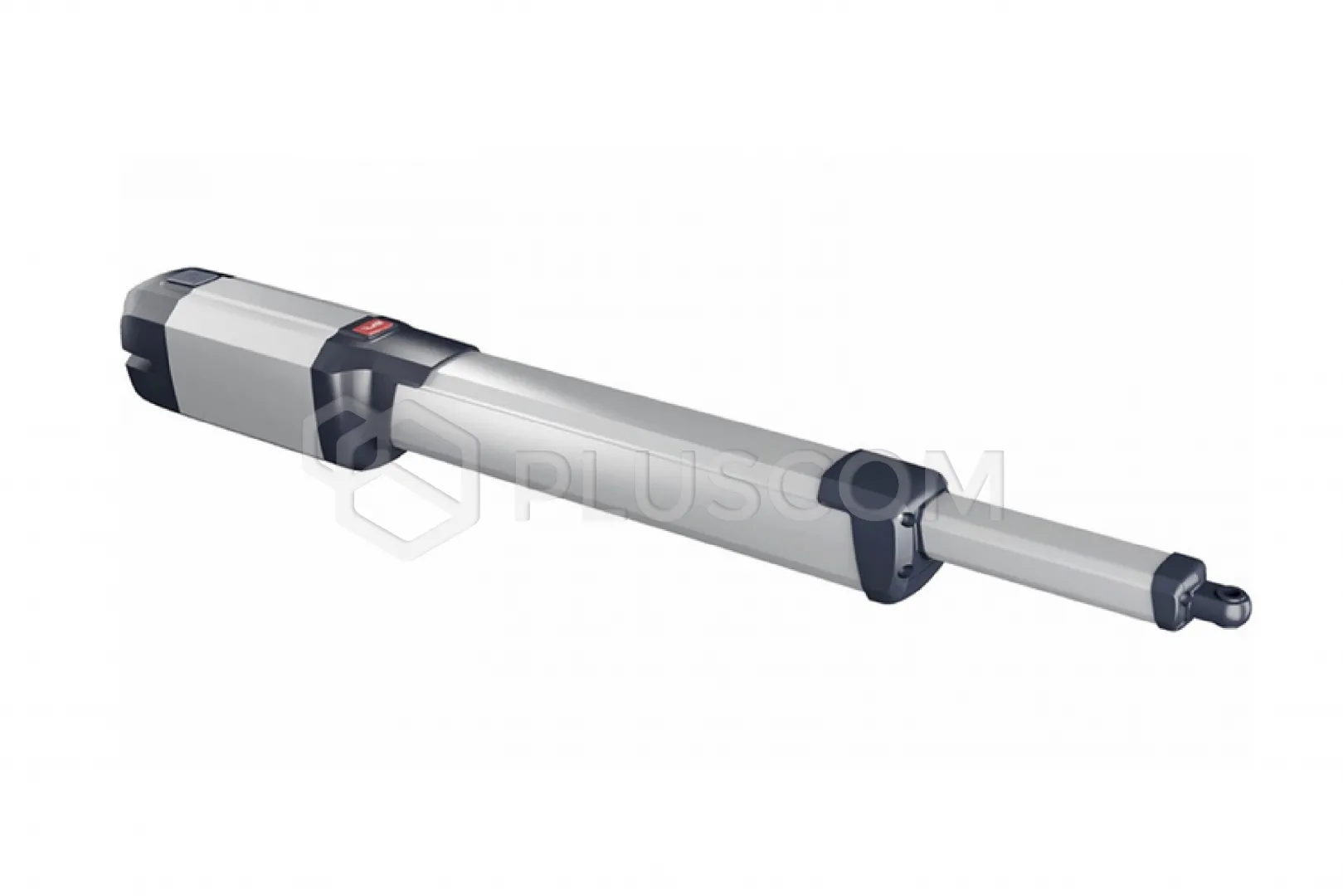

BFT 2600868 Self-locking tubular actuator KUSTOS ULTRA BT A40

BFT 2600868 Self-locking tubular actuator KUSTOS ULTRA BT A40

Self-locking electromechanical actuator 24V for swing gates weighing up to 500kg and 4m long. Quick and practical installation: the new KUSTOS BT A devices have been designed to enable quick and easy installation thanks to numerous important solutions, such as magnetic limit switches and a magnetic wedge blocking the handle.

In addition, the ULTRA version is equipped with two adjustable mechanical stops (opening and closing). The completely covered worm screw (IP44) allows you to enjoy the high operating culture of the actuators for longer.

FEATURES:

• The actuator has magnetic limit switches for opening and closing
• They have built-in additional mechanical stops
• Disengagement using a personalized key
• Safety is ensured by the amperometric obstacle detection function
• Frequency of use up to 80 cycles per day

Protected worm screw: all the actuators in the KUSTOS BT A range are telescopic actuators with a completely protected worm screw. This guarantees maximum protection against external agents (water, dust, dirt, etc.) and total protection for people, preventing access to moving parts.

Magnetic limit switch and integrated locks: the magnetic limit switch system guarantees maximum precision of the manoeuvre and great ease and speed of adjustment. Together with the integrated, adjustable mechanical locks, it allows precise installation without having to prepare floor stops.

Technical data:

• Max. door/gate leaf weight 500 kg

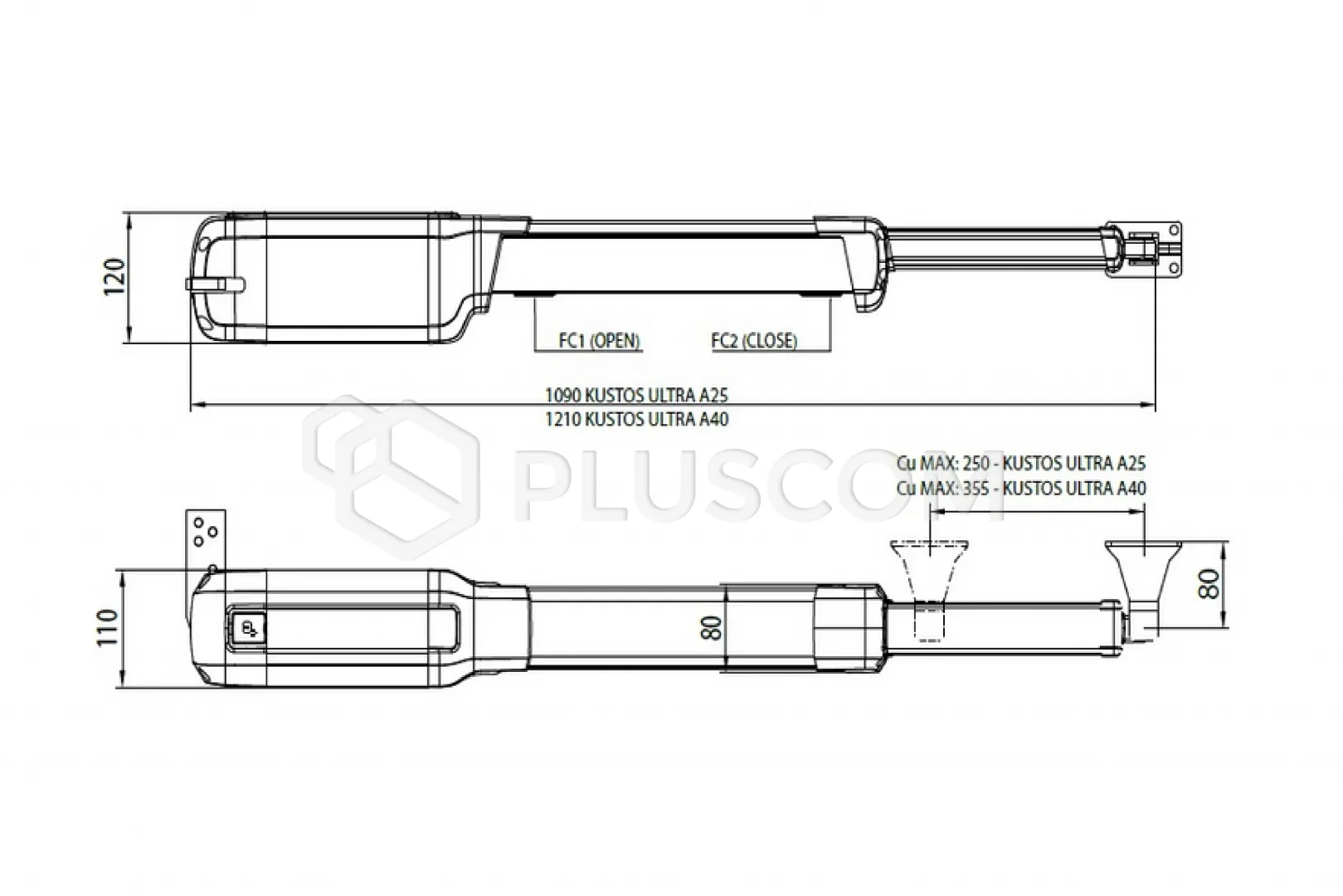

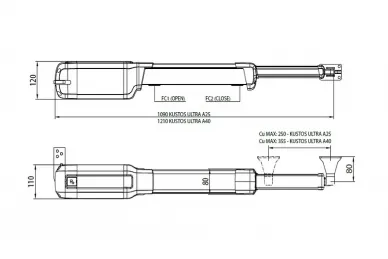

• Usable piston stroke 355 mm
• Maximum angle 126 °
• Limit switch type Magnetic
• Slowdown YES
• Mechanical lock
• Unlocking Personalized key
• Impact response D-Track
• Frequency of use intensive
• Protection class IP44
• Control unit THALIA
• Working environment (max.) -20 ÷ 55 °C
• Board power supply 230 V
• Communication no
• Motor voltage 24 V
• Power consumption 40 W
• Maneuvering time (90°, without deceleration, with maximum leaf and maximum weight) Approx. 20 s
• Max. door/gate leaf width 4m
