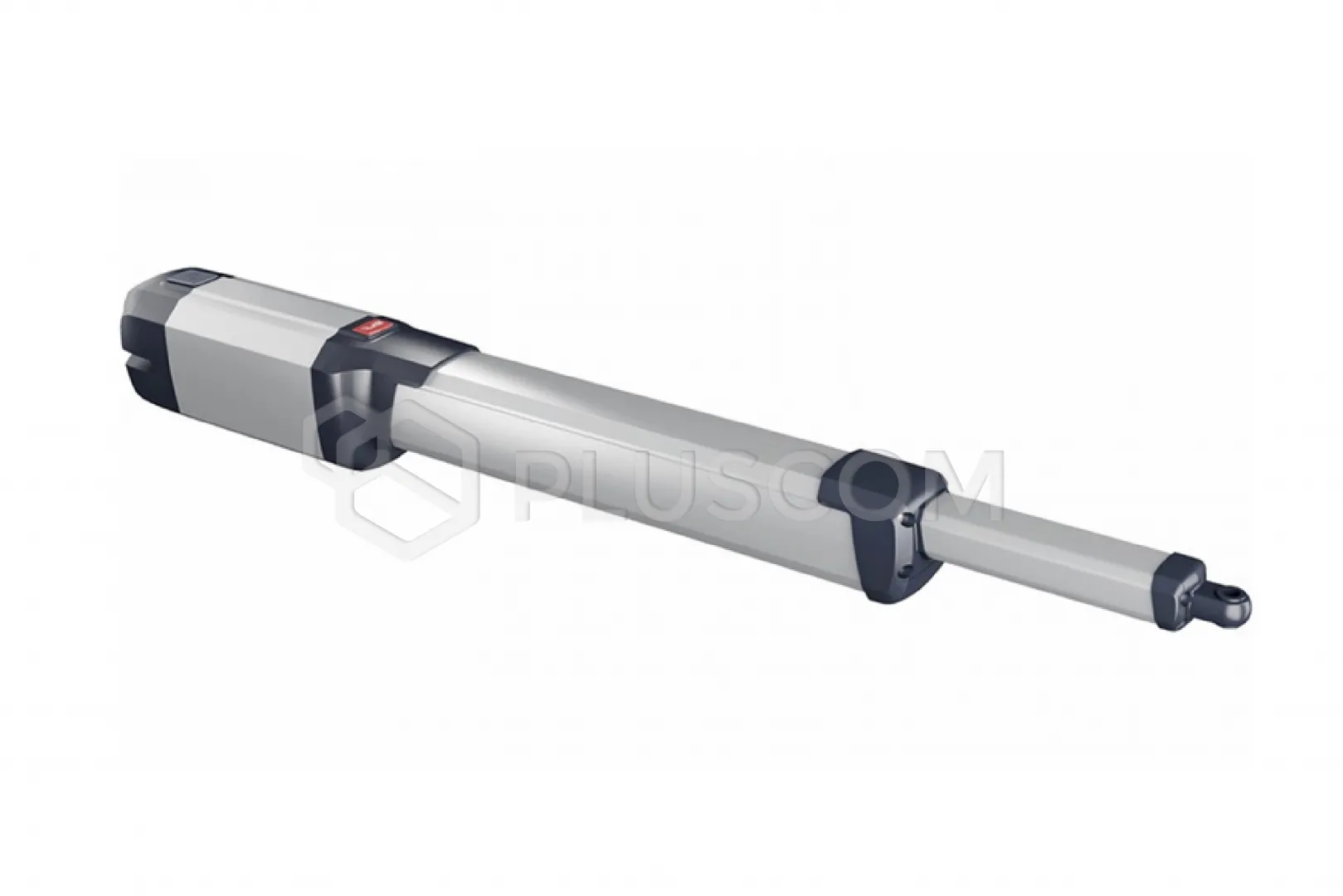

BFT 2600867 Self-locking tubular actuator KUSTOS ULTRA BT A25

427,20 EUR including 23.00% VAT
Product code: #37719
Manufacturer: BFT
  • Max. leaf length: 2m
  • Max. leaf weight: 400kg
  • Engine power supply: 24V
  • Frequency of use: Intensive (80 cycles/24h)
  • Magnetic limit switches
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2600867 Self-locking tubular actuator KUSTOS ULTRA BT A25


Self-locking electromechanical actuator 24V for swing gates weighing up to 400kg and 2.5m long. Quick and practical installation: the new KUSTOS BT A devices have been designed to enable quick and easy installation thanks to numerous important solutions, such as magnetic limit switches and a magnetic wedge blocking the handle.

In addition, the ULTRA version is equipped with two adjustable mechanical stops (opening and closing). The completely covered worm screw (IP44) allows you to enjoy the high operating culture of the actuators for longer.

FEATURES:

  • The actuator has magnetic limit switches for opening and closing
  • They have additional built-in mechanical stops
  • Disengagement by means of a personalised key
  • Safety is ensured by the amperometric obstacle detection function
  • Frequency of use up to 80 cycles per day
Protected worm screw: all the actuators in the KUSTOS BT A range are telescopic actuators with a completely protected worm screw. In this way, maximum protection against external agents (water, dust, dirt, etc.) and total protection for people are guaranteed, preventing access to the moving parts.

Magnetic limit switch and integrated locks: the magnetic limit switch system guarantees maximum precision of the manoeuvre and great ease and speed of adjustment. Together with integrated, adjustable mechanical locks, it enables precise installation without the need to prepare floor stops.

Technical data:

  • Max. door/gate leaf weight 400 kg
  • Usable piston stroke 250 mm
  • Maximum angle 118 °
  • Limit switch type Magnetic
  • Slowdown YES
  • Mechanical lock
  • Unlocking Personalized key
  • Impact response D-Track
  • Use frequency intensive
  • Protection class IP44
  • Control unit THALIA
  • Working environment (max.) -20 ÷ 55 °C
  • Board power supply 230 V
  • Communication no
  • Motor voltage 24 V
  • Power consumption 40 W
  • Maneuvering time (90°, without deceleration, with maximum leaf and maximum weight) Approx. 20 s
  • Max. door/gate leaf width 2m
