BFT 2600866 Self-locking gate actuator PHOBOS AC A25

354,03 EUR including 23.00% VAT
Product code: #37718
Manufacturer: BFT
  • Max. leaf length: 2.5m
  • Max. leaf weight: 400kg
  • Engine power supply: 230V
  • Frequency of use: Medium intensity
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2613836 AMIP Limit Switch Kit BFT 2610952 ARB PHOBOS 40 Adjustable front mounting bracket BFT 2610951 ARB PHOBOS 25 Adjustable front mounting bracket

BFT 2600866 Self-locking gate actuator PHOBOS AC A25

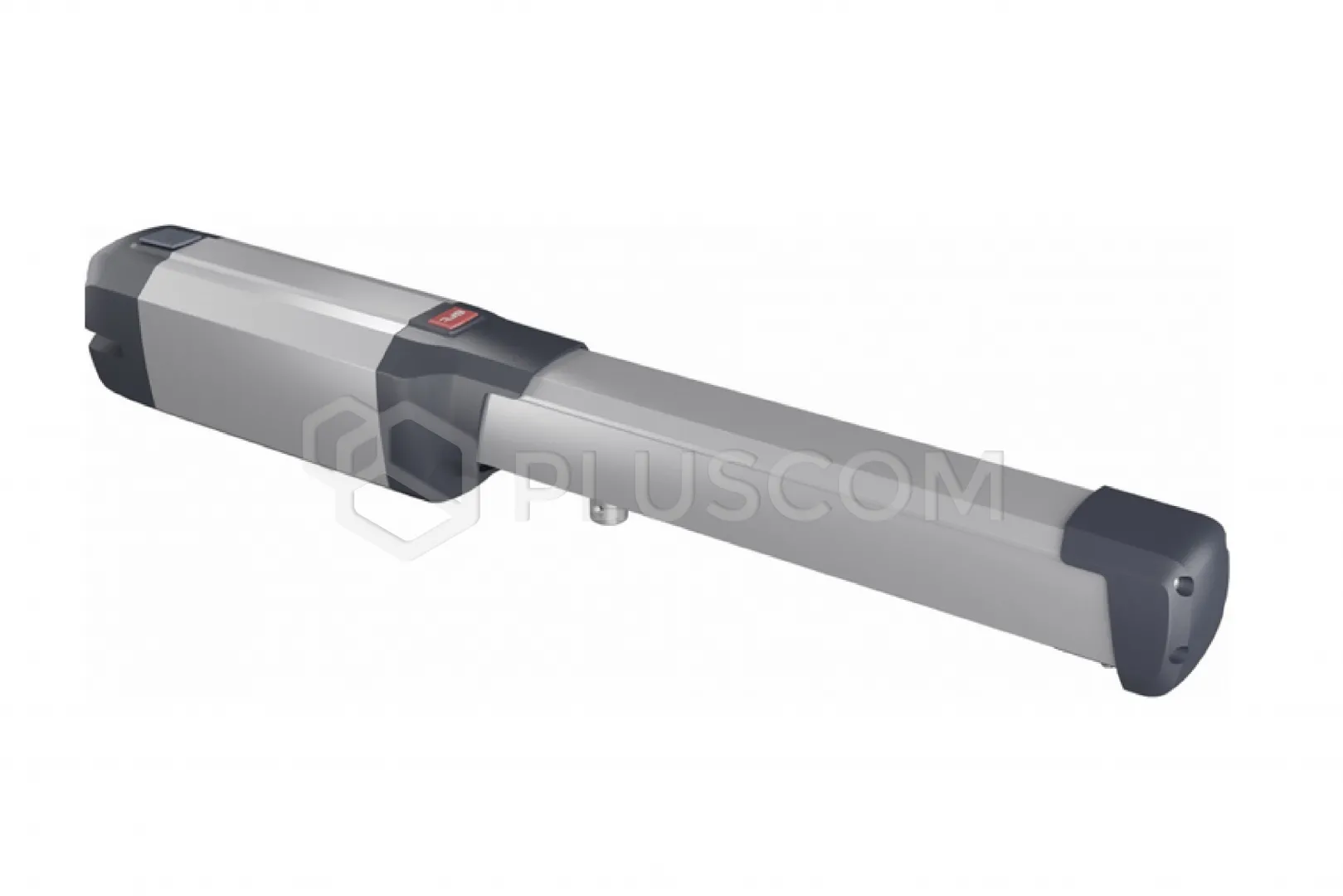

BFT PHOBOS AC A25 is a reliable, electromechanical actuator designed for the automation of swing gates. This model is characterized by high quality workmanship and solid construction, which guarantees long-term and trouble-free operation.

FEATURES:

  • The actuator does not have limit switches for opening and closing (requires mechanical stops)
  • Disengagement using a personalized key
  • Frequency of use up to 60 cycles per day
  • Mounting to a post holder with a magnetic pin, which facilitates assembly and improves the aesthetics of the installation

Technical data:

  • Maximum angle 120 °
  • Type of limit switch operating time
  • Control unit RIGEL 6. ALENA SW2
  • Slowdown YES
  • Maneuvering time (90°, without slowdowns, with maximum leaf and maximum weight) Approx. 18 s
  • Mechanical lock
  • Unlocking Personalized key
  • Impact response Electronic clutch
  • Use frequency Semi-intensive
  • Protection level IPX4
  • Working environment (max.) -20 ÷ 55 °C
  • Board power supply 230 V
  • Communication no
  • Motor voltage 230 V
  • Power consumption 210 W
  • Max. door/gate wing width 2.5 m
  • Max. door/gate wing weight 400 kg
  • Usable piston stroke 350 mm
Download
User manual 1.12 MB
User's Guide 2.78 MB
