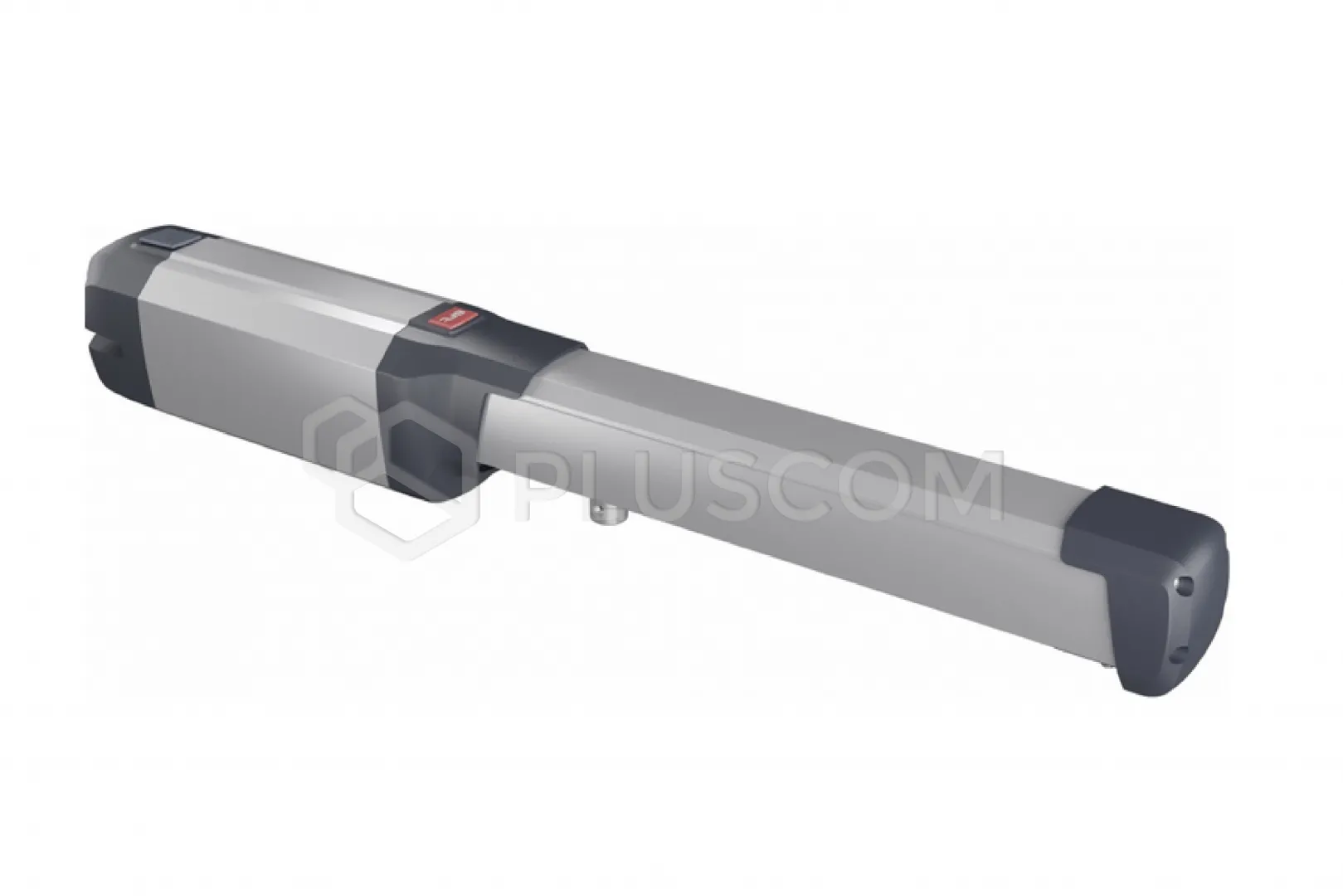

BFT 2600865 Self-locking gate actuator PHOBOS BT A25

BFT 2600865 Self-locking gate operator PHOBOS BT A25

Self-locking electromechanical 24V actuator for swing gates weighing up to 400kg and 2.5m long. Magnetic limit switch: the magnetic limit switch system guarantees maximum precision of the maneuver and great ease and speed of adjustment.

FEATURES:

• The actuator has magnetic limit switches for opening and closing
• Disengagement using a personalized key
• Safety is ensured by the amperometric obstacle detection function
• Frequency of use up to 80 cycles per day
• Mounting to a post holder with a magnetic pin, which facilitates assembly and improves the aesthetics of the installation

Magnetic limit switch: the magnetic limit switch system guarantees maximum precision of the maneuver and great ease and speed of adjustment.

Technical data:

• Max. door/gate leaf weight 400 kg
• Usable piston stroke 290 mm
• Maximum angle 116 °
• Manoeuvring time (90°, without deceleration, with maximum leaf and maximum weight) Approx. 15 s
• Limit switch type Magnetic
• Slowdown YES
• Mechanical lock
• Unlocking Personalised key
• Impact response D-Track
• Use frequency intensive
• Protection class IPX4
• Control unit THALIA BT A80. ZARA BT A 80. THALIA. ZARA
• Working environment (max.) -20 ÷ 55 °C
• Board power supply 230 V
• Communication no
• Motor voltage 24 V
• Power consumption 40 W
• Max. door/gate leaf width 2.5 m
