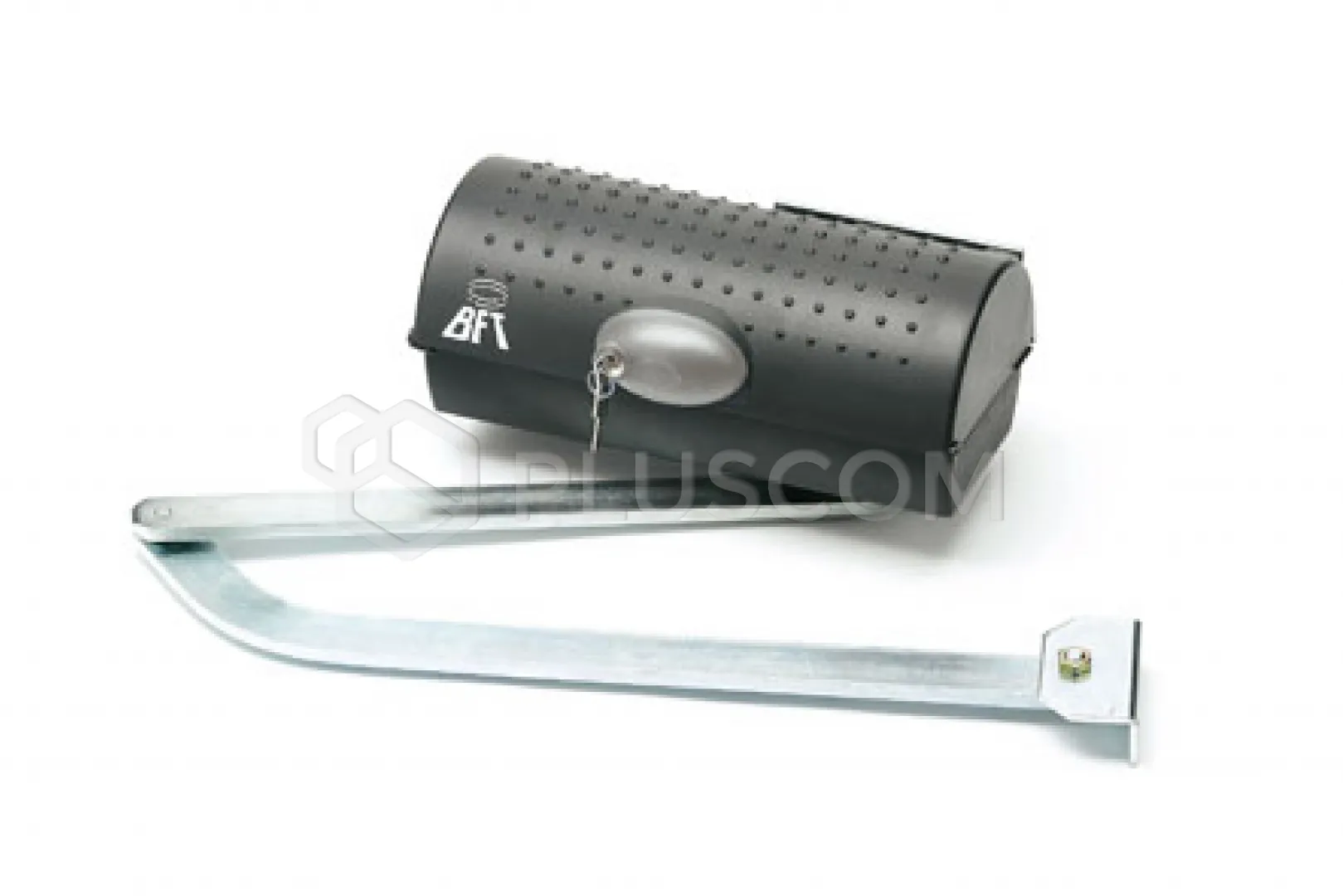

BFT 2600863 swing gate actuator IGEA

BFT 2600863 IGEA swing gate actuator

The BFT IGEA electromechanical actuator is an advanced device designed to automate swing gates. This model is characterized by a solid construction and high efficiency, ensuring reliable operation for many years.

FEATURES:

• Application: Designed for swing gates weighing up to 250 kg and up to 2.5 m long
• Power supply voltage: 230 V, making it easy to connect to a standard electrical network
• Power: Provides sufficient force for smooth and fast opening and closing of the gate
• Durability: The design of the actuator guarantees resistance to weather conditions and intensive use
• Safety: Built-in safety functions, such as obstacle detection, ensure the protection of people and property
• Easy installation: Intuitive assembly and configuration allow for quick system start-up
• Compatibility: The actuator can be easily integrated with other components of the gate automation system BFT

New coding system for direct cloning of remote controls Based on microprocessor technology, the system allows any MITTO remote control to be cloned and converted into a PITTO REPLAY remote control. The first radio remote control will "transmit" the correct code to the second remote control to be automatically stored in the receiver during first use. And thanks to the use of the Rolling Code secure data transmission system, maximum security is ensured during all these procedures.

Technical data:

• Manoeuvre time 15 s
• Limit switch type Electromechanical
• Slowdown no
• Mechanical lock
• Unlocking By means of a knob with personalized key
• Impact reaction Electronic clutch
• Use frequency intensive
• Protection degree IP44
• Working environment (max.) -15 ÷ 60 °C
• Control unit RIGEL 6
• Communication no
• Board power supply 230 V
• Motor voltage 230 V
• Acquired power 300 W
• Max. door/gate wing width 2.5 m
• Max. door/gate wing weight 250 kg
• Maximum angle 125 °
