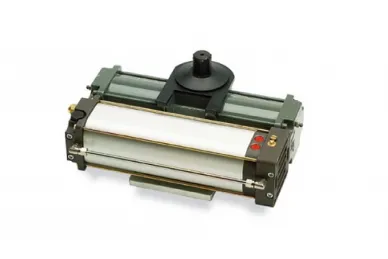

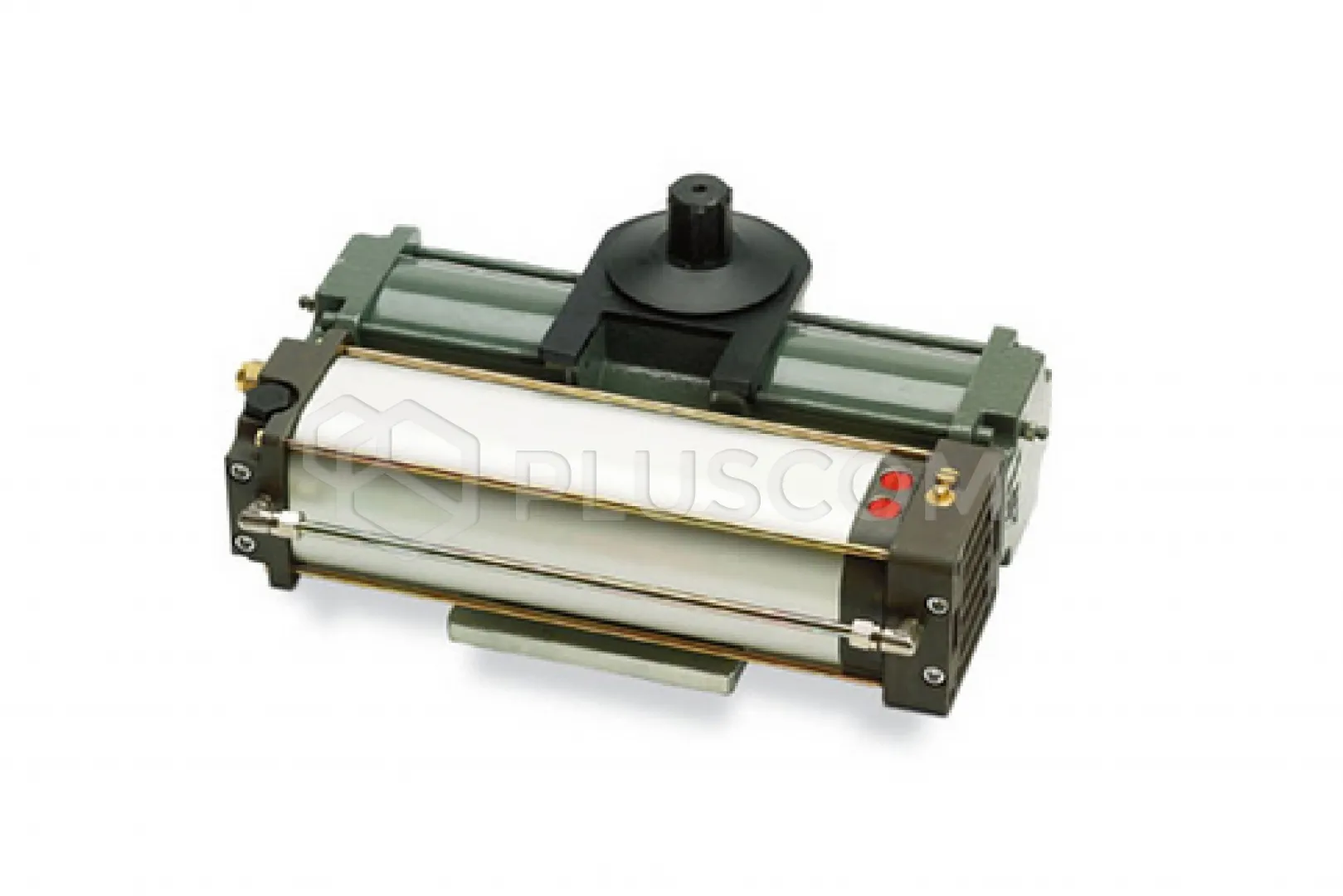

BFT 2600859 Underground self-locking hydraulic actuator (left) for SUB SX swing gates

BFT 2600859 Underground self-locking hydraulic actuator (left) for SUB SX swing gates

BFT 2600859 is an advanced underground hydraulic actuator designed specifically for the automation of left-wing gates. The SUB SX model features a solid construction and high efficiency, making it an ideal solution for demanding users.

Features:

• Hydraulic actuator for residential swing gates and for intensive use
• Designed for gates with a leaf weight of up to 800 kg
• Hydraulic force regulation and obstacle detection
• Frequency of use up to 500 cycles per day

The design consisting of a single block allows for aesthetic, exceptionally reliable installations despite the passage of time.

Slowing down during closing guarantees quiet and smooth movement even with the largest doors. The adjusting screw also allows the slowing down intensity to be adjusted to the requirements of any situation.

Control unit with programming display and new, simplified scenario-based programming.

Technical data:

• Communication no
• Board power supply 230 V
• Motor voltage 230 V
• Power consumption 250 W
• Max. door/gate leaf width 1.8 m
• Max. door/gate leaf weight 800 kg
• Maximum angle 130 °
• Manoeuvre time 24 s
• Limit switch type working time
• Slowdown no
• Lock Hydraulic opening/closing
• Unlocking Triangular key
• Impact reaction Hydraulic clutch
• Use frequency very intensive
• Protection class IP67
• Working environment (max.) -10 ÷ 60 °C
• Control unit RIGEL 6
