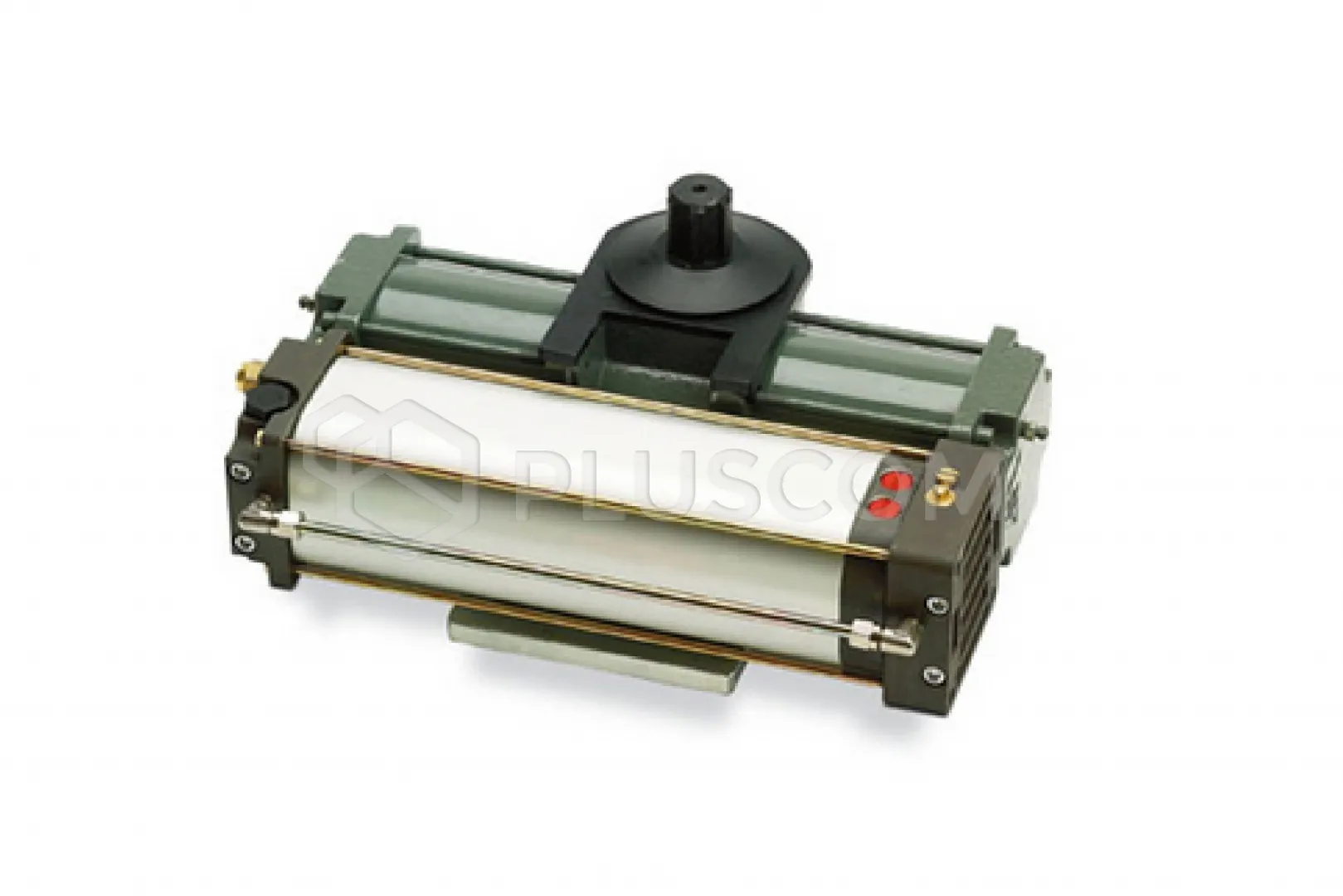

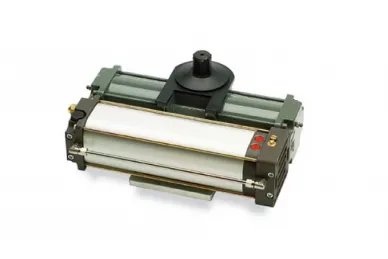

BFT 2600858 Underground self-locking hydraulic actuator (right) for swing gates SUB DX

BFT 2600858 Underground self-locking hydraulic actuator (right) for swing gates SUB DX

BFT 2600858 is an advanced, underground hydraulic actuator designed to automate right-wing gates. The SUB DX model is characterized by high efficiency and reliability, making it an ideal solution for single-family homes and industrial facilities where intensive automation work is required.

FEATURES:

• Hydraulic actuator for residential swing gates and for intensive work
• Designed for gates with a leaf weight of up to 800 kg
• Hydraulic force regulation and obstacle detection
• Frequency of use up to 500 cycles per day

The design allows for a very neat installation that is timeless.

The closing slowdown guarantees quiet and smooth movement of even the largest gates. In addition, the adjustment screw allows you to adjust the intensity of the slowdown to the needs of each situation.

Control unit with programming display and new, simplified scenario-based programming

Technical data:

• RIGEL 6 control unit
• Board power supply 230 V
• Motor power supply 230 V
• Power consumption 250 W
• Maximum door/gate leaf width 1.8 m
• Maximum door/gate leaf weight 800 kg
• Maximum opening angle 130 °
• Open cycle time 24 s
• Limit switch type Working time
• Release no
• Locking Opening/closing hydraulics
• Release Triangular key
• Impact reaction Hydraulic clutch
• Use frequency very intensive
• Protection class IP67
• Environmental conditions -10 ÷ 60 °C
• Connection no
