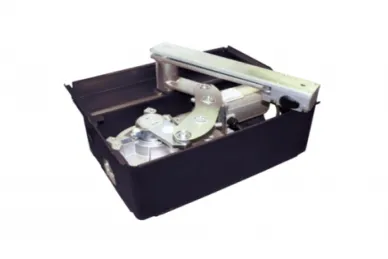

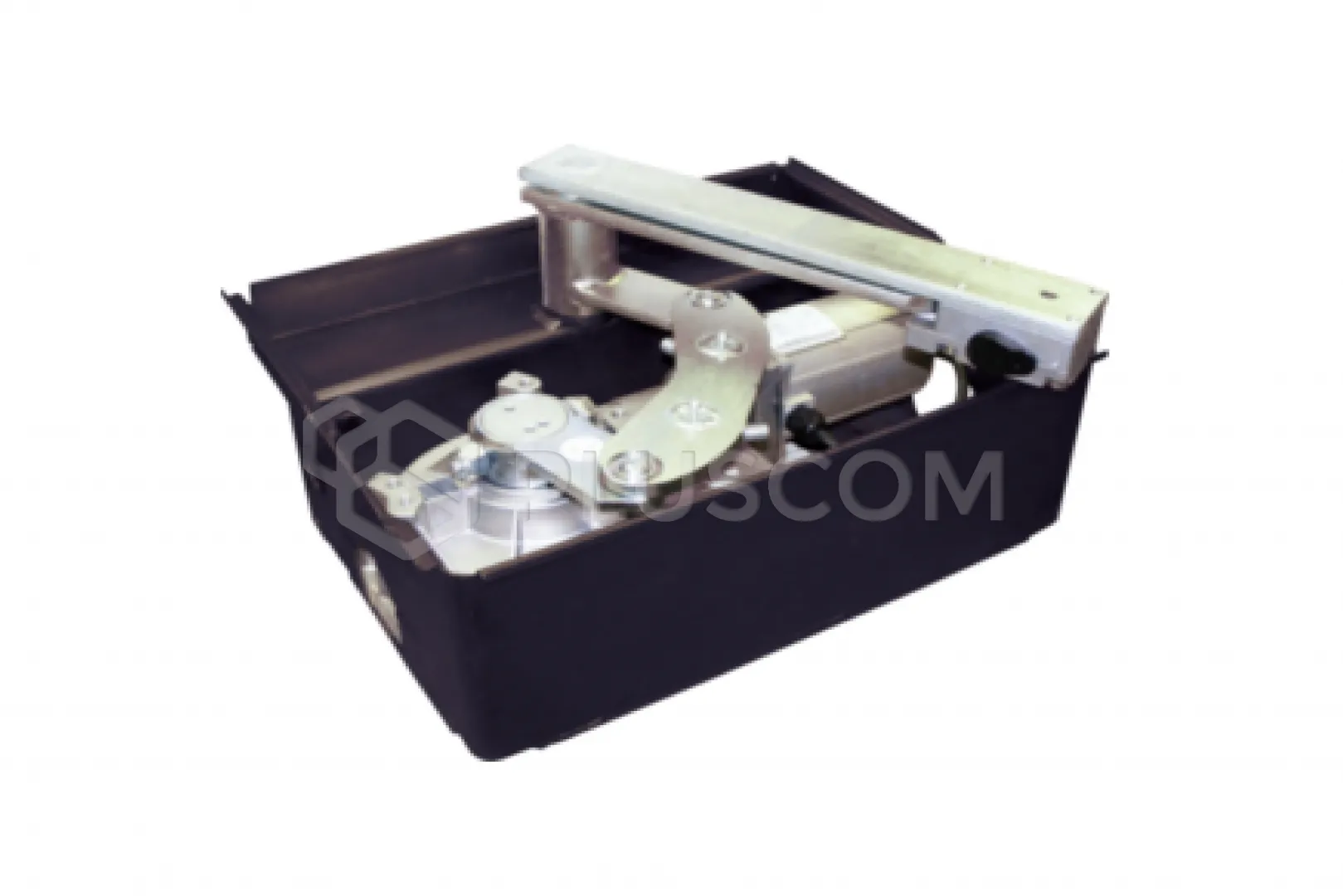

BFT 2600563 Underground swing gate operator ELI 250 N V

BFT 2600563 Underground swing gate operator ELI 250 N V

FEATURES:

• Power and efficiency: The actuator ensures smooth and safe operation of gates weighing up to 150 kg and with a leaf length of up to 2 meters. Thanks to its design, it can cope with various weather conditions
• Underground installation: Thanks to the underground installation, the actuator is aesthetic and does not take up additional space on the property
• Power supply voltage: The actuator operates on 230V, which makes it easy to connect it to a standard electrical network
• Integrated radio receiver: The built-in radio receiver allows you to control the gate using a remote control, which ensures convenience of use
• Compatibility: The actuator is compatible with the ALTAIR P control unit, which allows you to program many additional functions, such as:
• • Adjustable opening and closing speed
  • Partial opening function
  • Possibility to connect additional accessories (e.g. photocells, signal lamps)

• Technical data:

  • Protection class IP67
  • Maximum opening angle 120°
  • Operating environment -20 ÷ 50°C
  • Full opening time 14 s
  • Communication no
  • Type of limit switch working time
  • Slowdown no
  • Control unit RIGEL 6, ALENA SW2
  • Mechanical lock
  • Motor voltage 230 V
  • Unlocking release lever or lever with personalized key
  • Power consumption 300 W
  • Impact response Electronic clutch
  • Maximum door/gate wing width 2 m
  • Use frequency semi-intensive
  • Maximum door/gate wing weight 150 kg
