BFT 2600541 Self-locking gate actuator PHOBOS AC A50

389,21 EUR including 23.00% VAT
Product code: #37512
Manufacturer: BFT
  • Max. leaf length: 5m
  • Max. leaf weight: 500kg
  • Engine power supply: 230V
  • Frequency of use: Medium intensity
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2613836 AMIP Limit Switch Kit BFT 2610952 ARB PHOBOS 40 Adjustable front mounting bracket BFT 2610951 ARB PHOBOS 25 Adjustable front mounting bracket

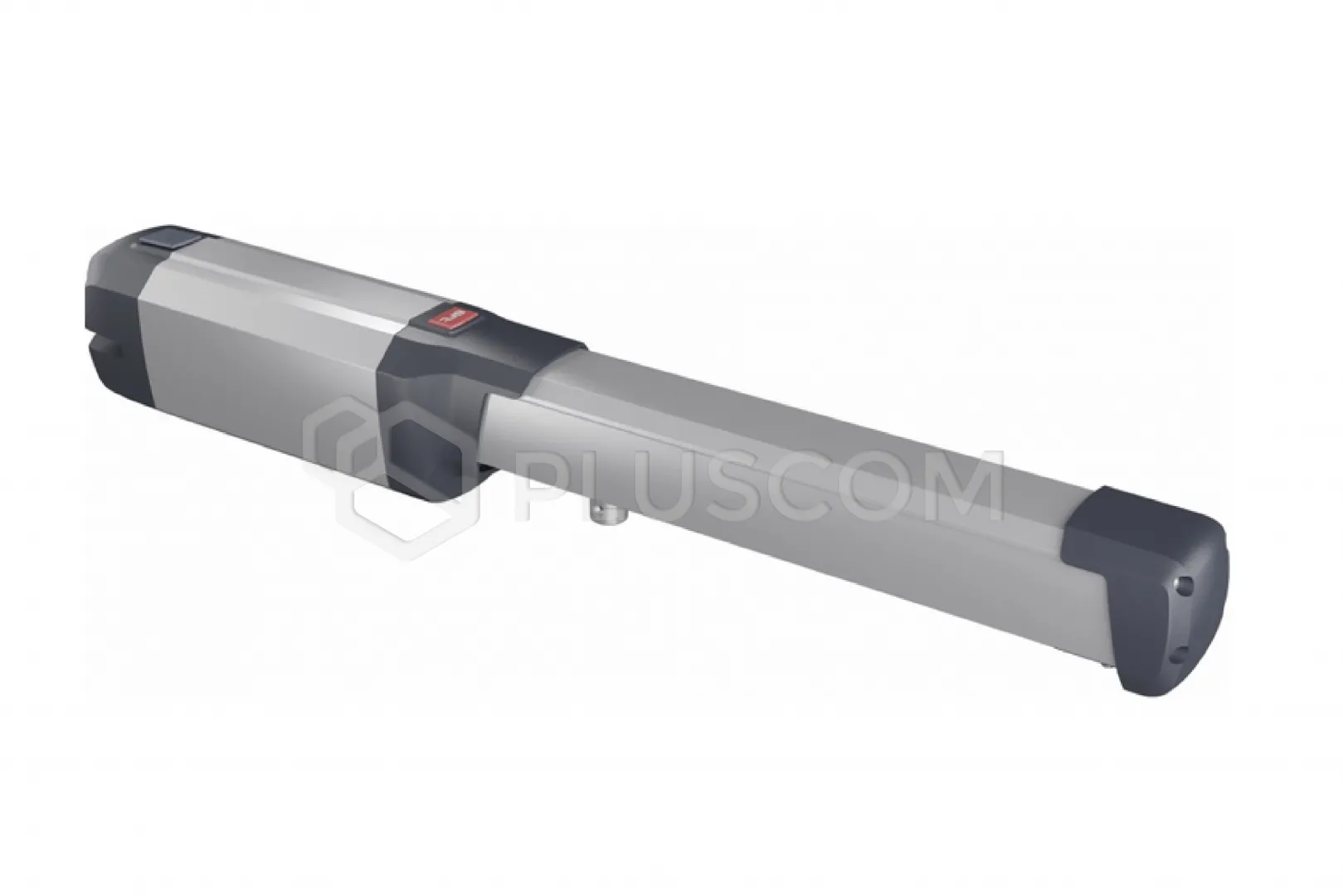

BFT 2600541 Self-locking gate operator PHOBOS AC A50


The BFT 2600541 PHOBOS AC A50 is a robust and reliable electromechanical operator, designed specifically for the automation of swing gates. This model is characterized by high performance and ease of installation, making it a popular choice among both professionals and individual users.

FEATURES:

  • The actuator does not have limit switches for opening and closing (requires mechanical stops)
  • Disengagement using a personalized key
  • Frequency of use up to 60 cycles per day
  • Mounting to a post holder with a magnetic pin, which facilitates assembly and improves the aesthetics of the installation

Technical data:

  • Max. door/gate leaf weight 500 kg
  • Usable piston stroke 460 mm
  • Maximum angle 129 °
  • Limit switch type working time
  • Manoeuvring time (90°, without releases, with maximum leaf and maximum weight) Approx. 22 s
  • Slowdown YES
  • Mechanical lock
  • Unlocking Personalized key
  • Impact reaction Electronic clutch
  • Use frequency Semi-intensive
  • Protection class IPX4
  • Control unit RIGEL 6. ALENA SW2
  • Working environment (max.) -20 ÷ 55 °C
  • Board power supply 230 V
  • Communication no
  • Motor voltage 230 V
  • Power consumption 210 W
  • Max. door/gate wing width 5 m
Download
User manual 1.12 MB
User's Guide 2.78 MB
