BFT 2600524 Michelangelo BT A 80 Barrier column up to 8m

2320,64 EUR including 23.00% VAT
Product code: #37505
Manufacturer: BFT
  • Permissible arm lengths: 8m
  • Opening time: 8s
  • Engine supply voltage: 24 V
  • MERAK BM control unit
  • Color gray RAL 7015
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2600525 ATT 704 First part of the horn arm complete with stickers BFT 2600367 Arm support - movable without shock absorber GA AQ AT BFT 2607544 RADIUS LED BT A R1 W Signal lamp with built-in antenna and interrupter BFT 2600352 Flat Arm Bracket OMEGA AQ 6 BFT 2605301 BMC A Adapter BFT 2600252 MICHELANGELO barrier mounting base BFT 2605192 Heater for THERMO barrier BFT 2600129 SB Protection of the passage under the barrier arm, so-called BFT 2601411 Photocells Compacta A20-180 BFT 2600826 PCA N6 Arm protection rubbers 6m

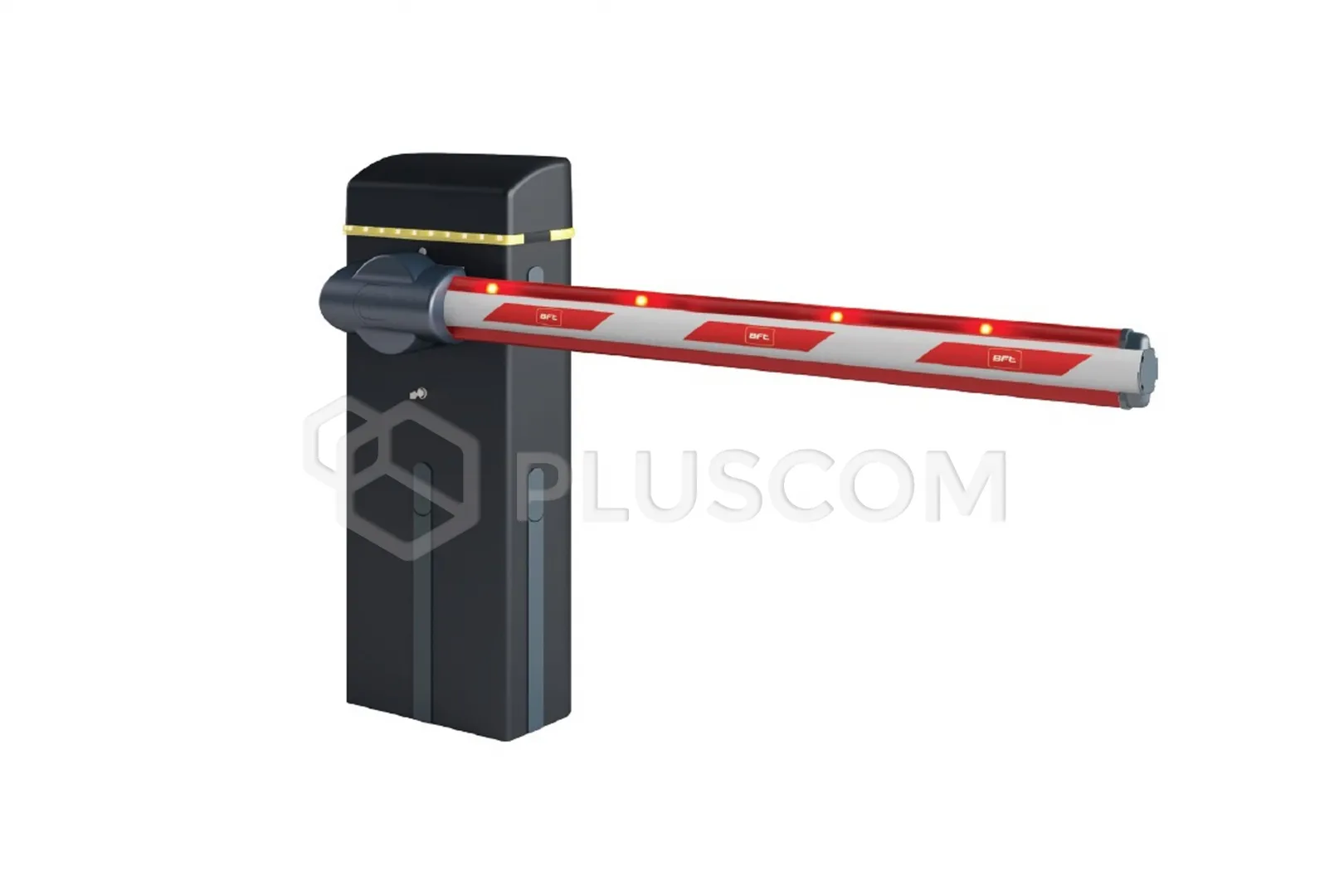

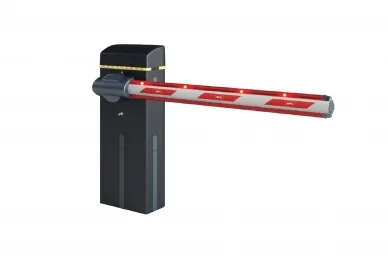

BFT 2600524 Michelangelo BT A 80 CENTRAL UNIT FOR ARM UP TO 8m (P940077 00002)


The barrier is designed for entrances with a width of 6 m or more. It has a 24 V motor and a built-in MERAK BM series control unit with U-Link connectivity, a programming display and a built-in two-channel radio receiver.

The integrated radio receiver with a dynamically changing code allows you to store up to 63 remote controls.
Safety is ensured by the obstacle detection function - encoder. The barrier immediately stops and reverses movement when it hits an obstacle.

The advanced functions of the control unit allow you to precisely set the arm position, operating speed and other required parameters. They are designed for medium-intensity work.

FEATURES:

  • 24V powered motor
  • built-in MERAK BM6 control unit with LCD display
  • when the barrier hits an obstacle, it immediately stops and reverses its movement
  • safety is ensured by the amperometric obstacle detection function
  • extensive control unit functions enable precise adjustment of the arm position and operating speed
  • integrated radio receiver with a dynamically changing code enables memorizing 63 remote controls
  • electronic adjustment of the arm position and force
  • barriers adapted to very intensive work, approx. 4500 cycles per day
  • opening time 6 seconds
  • RAL 7015 color
Download
User manual 7.18 MB
