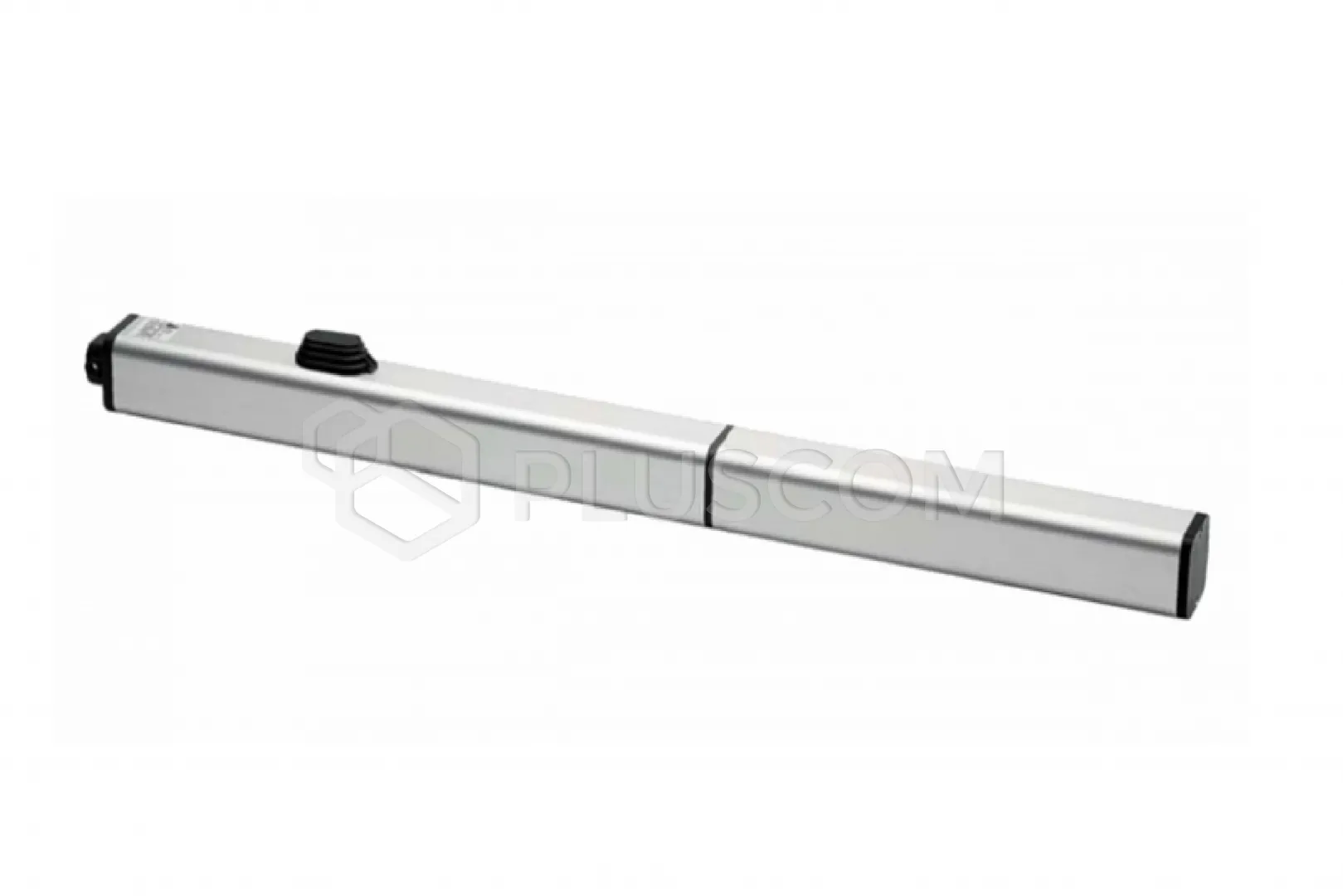

BFT P7 - Hydraulic actuator for swing gates for intensive use. Designed for gates with a leaf weight of up to 500 kg and a length of up to 7 m. This actuator does not have limit switches, it is required to install mechanical stops and use an electric lock. Frequency of use up to 500 cycles per day.

FEATURES:

• Motor powered by 230V
• The actuator does not have limit switches, it is required to install stops and use an electric lock
• Frequency of use up to 500 cycles per day
• Hydraulic force regulation and obstacle detection

Articulated rear brackets and an articulated post allow for simple and reliable installation in every situation.

A brass release knob, secured with an individual key, facilitates manual opening of the leaf in the event of a power failure.

Release during closing guarantees quiet and smooth movement even in the case of the largest leaf dimensions. The adjustment screw also allows the intensity of the release to be adjusted to the requirements of any situation.

Technical data:

• Maximum angle 123 °
• Manoeuvre time 42 + release. s
• Type of limit switch working time
• Slowdown during closing
• Lock Electric lock
• Unlocking With change of direction/position
• Impact reaction Hydraulic clutch
• Use frequency very intensive
• Protection class IP55
• Control unit RIGEL 6
• Operating environment (max.) -10 ÷ 60 °C
• Board power supply 230 V
• Communication no
• Motor voltage 230 V
• Power consumption 250 W
• Max. door/gate leaf width 7 m
• Max. door/gate leaf weight 500 kg

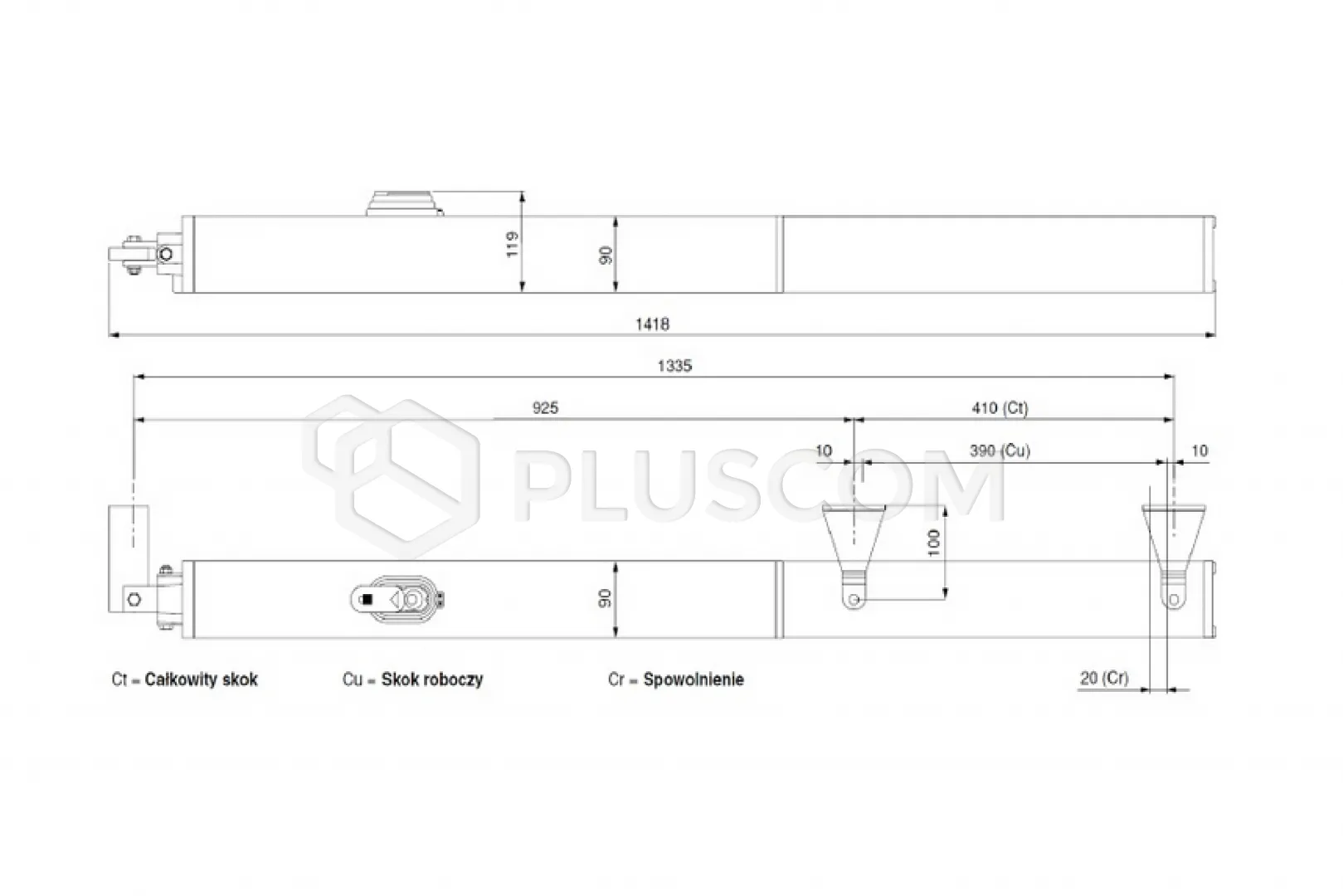

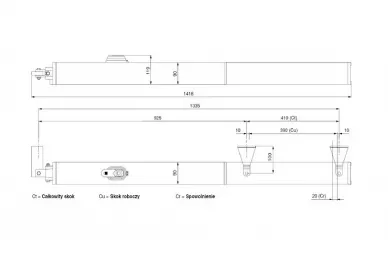

• Usable piston stroke 390 mm
