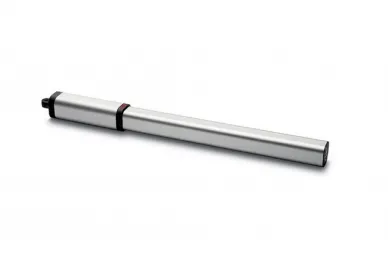

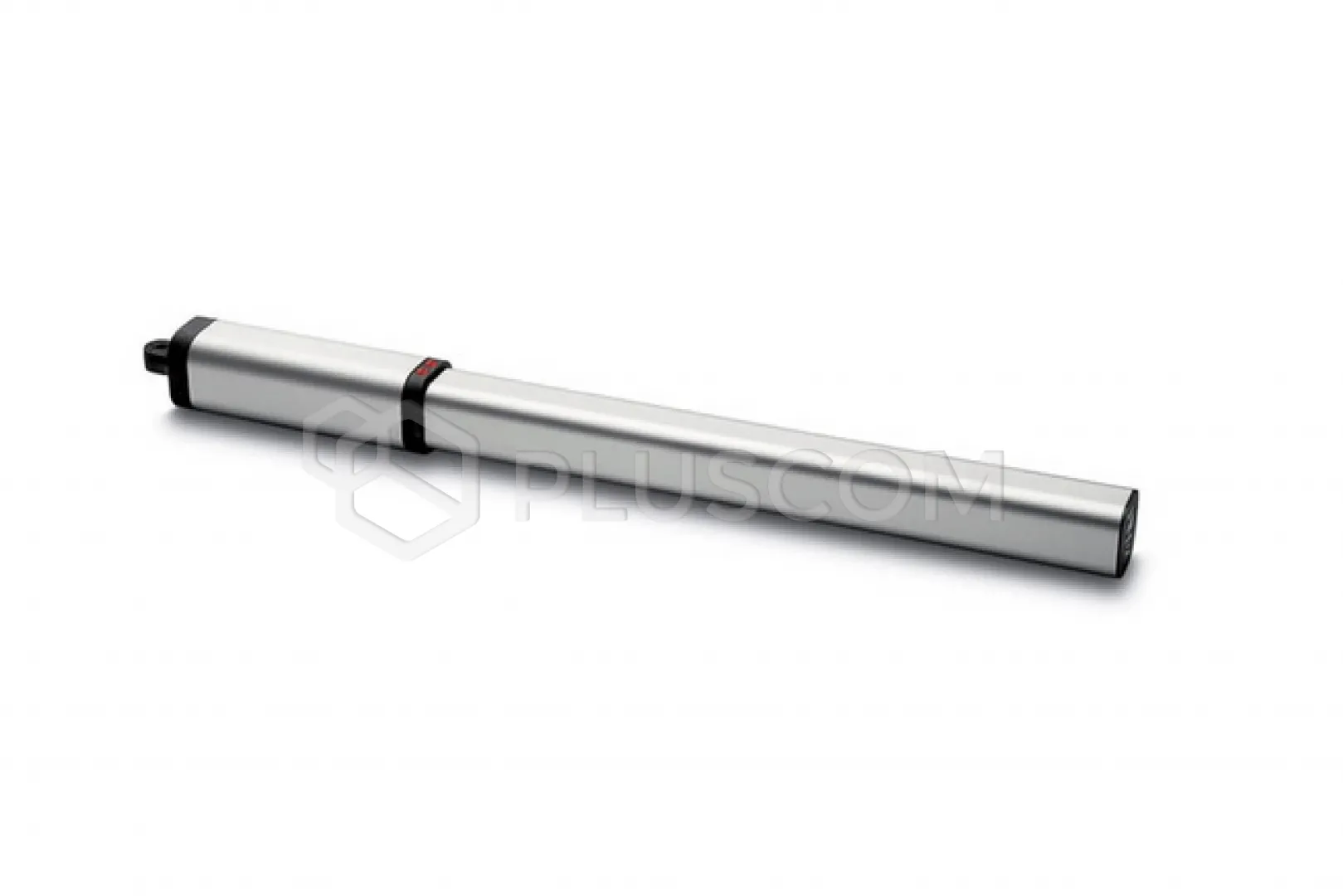

BFT 2600515 Hydraulic swing gate drive LUX GV-2B

BFT 2600515 Hydraulic drive for swing gates LUX GV-2B

BFT LUX GV-2B is an advanced, hydraulic drive designed to automate swing gates. This model is distinguished by its solid construction and high efficiency, making it an ideal solution for both single-family homes and industrial facilities.

FEATURES:

• Non-self-locking hydraulic cylinder
• Hydraulic force regulation and obstacle detection
• Frequency of use up to 500 cycles per day
• Does not have limit switches, bumper assembly required
• Has a hydraulic lock during opening and closing
• For gate lengths up to 3.0 m, it does not require the use of an electric lock
• Increased operating speed

Technical data:

• Motor voltage 230 V
• Board power supply 230 V
• Power consumption 250 W
• Max. leaf weight 300 kg
• Opening time 28s
• Hydraulic lock on closing and opening
• Usable working stroke 270 mm
• Slowing down no
• Unlocking Triangular key
• Reaction to impact Hydraulic clutch
• Frequency of use very intensive
• Protection class IP57
• Working environment (max.) -20 ÷ 60 °C
• Control unit RIGEL 6
