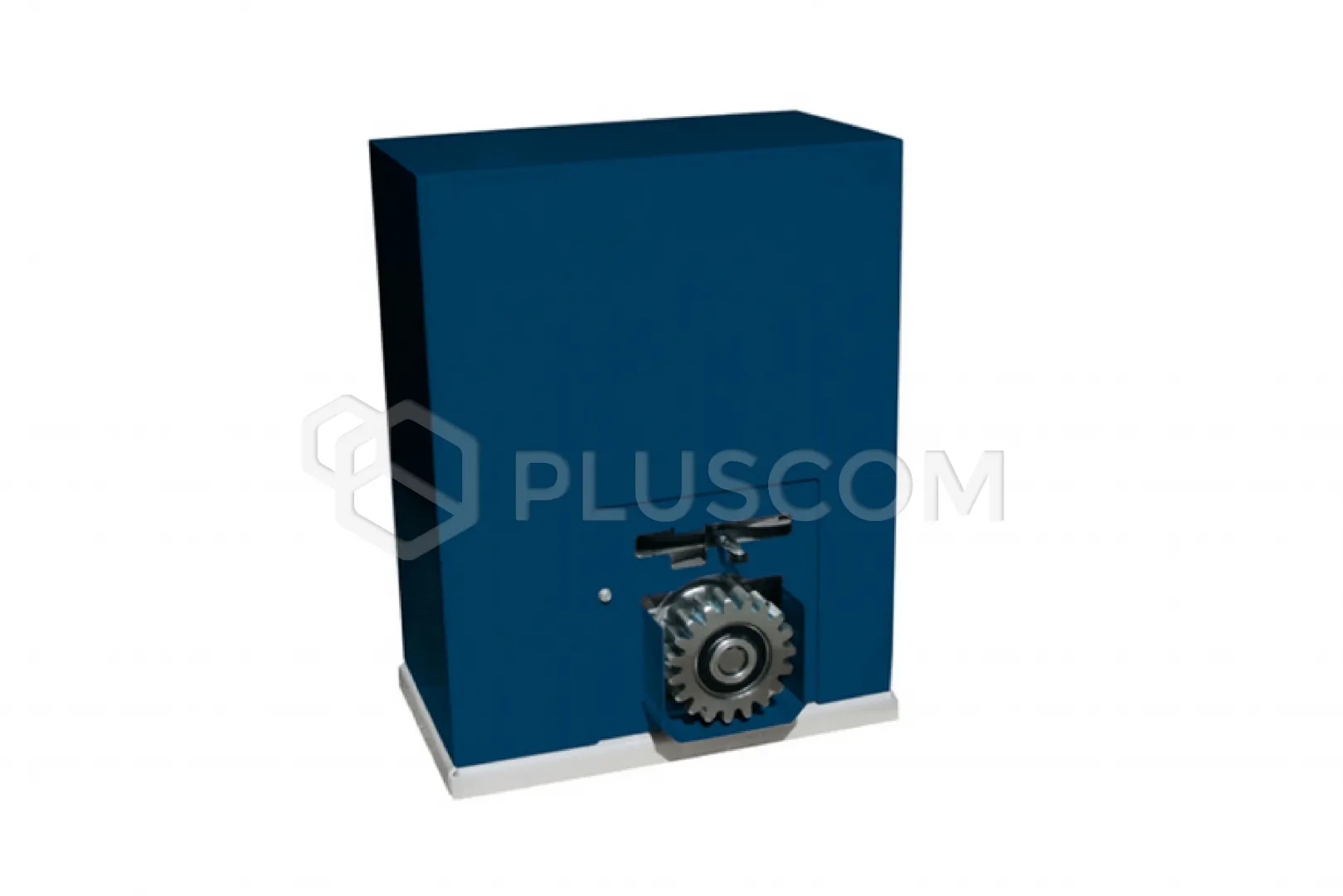

BFT 2600514 Industrial sliding gate operator SP3500 TRI 400

BFT 2600514 Industrial sliding gate drive SP3500 TRI 400

BFT PHOBOS AC A25 is a reliable, electromechanical actuator designed for the automation of swing gates. This model is characterized by high quality workmanship and solid construction, which guarantees long-term and trouble-free operation.

FEATURES:

• Powerful, robust 230V or 400V three-phase motors, specially designed for large and heavy gates
• Heavy-duty gear motor construction
• Painted galvanized steel casing
• Built-in SIRIO CBB control unit with display and comb connector
• With a gate up to 2200kg it can operate in continuous mode, above 2200kg the efficiency is 60%
• Powerful electric brake allows the leaf to be blocked after closing operations even in inclined installations

The travel limits can be easily adjusted using the electromechanical limit switch of the lever arm, ensuring absolute stopping precision.

A powerful electric brake allows the leaf to be blocked after the closing operation, guaranteeing perfect closure even in inclined installations.

Technical data:

• SIRIO CBB control unit
• Board power supply 400 V
• Power consumption 550 W
• Max. gate weight 3500 kg
• Gate panel travel speed 10 m/min
• Limit switch type Electromechanical
• Pinion module 6
• Slowdown no
• Locking Mechanical
• Release Hexagonal key
• Impact response Sensitive edge
• Use frequency very intensive
• Protection class IP54
• Operating environment -15 ÷ 50 °C
• Connections Yes
• Motor voltage 400 V
