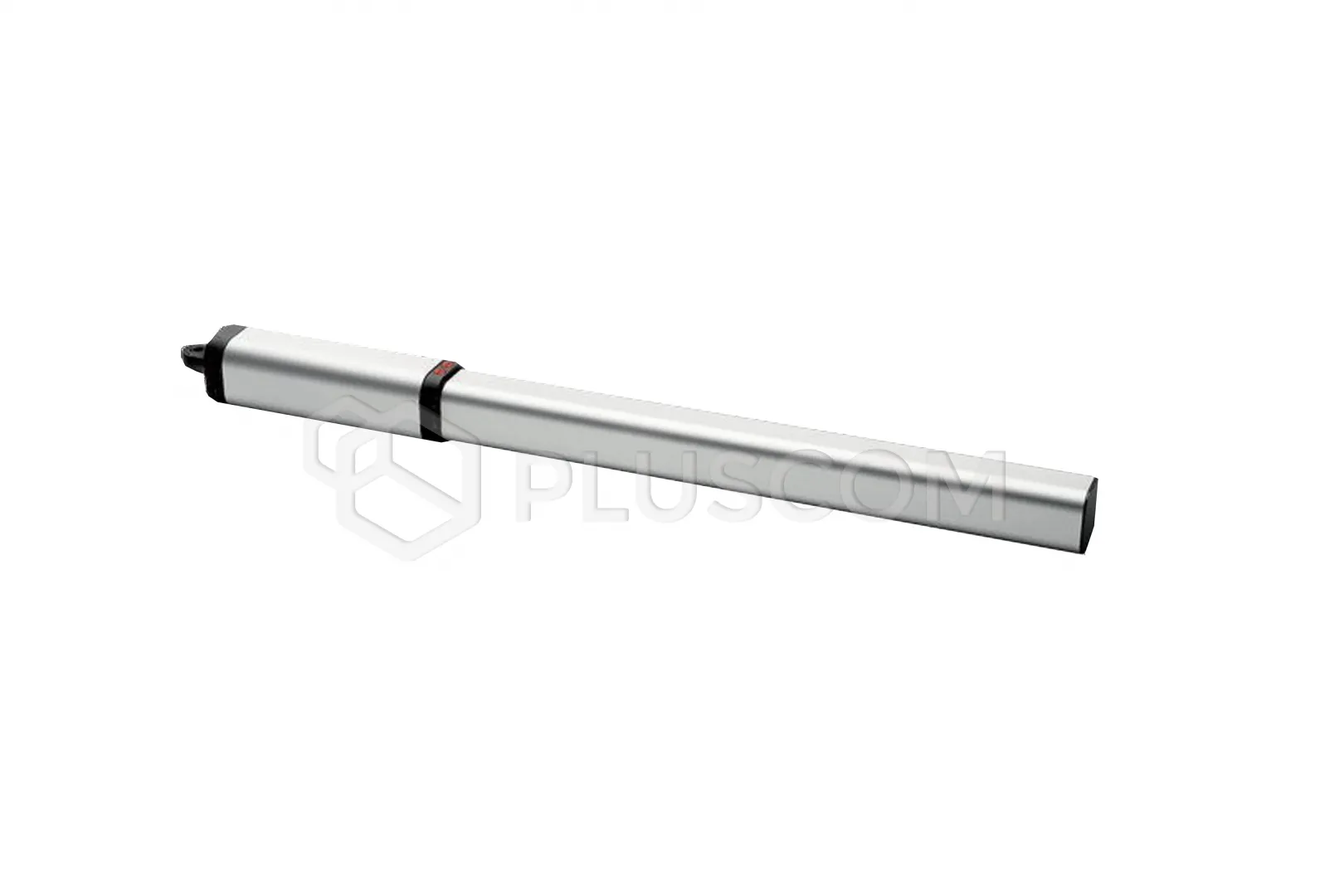

BFT 2600017 Self-locking actuator 230V for 2m/300kg leaf

740,90 EUR including 20.00% VAT
Product code: #37450
Manufacturer: BFT
  • leaf length up to2m
  • leaf weight up to 300kg
  • 230V engine power supply
  • useful stroke 270 mm
  • maximum angle 123°
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2600017 Self-locking 230V actuator for swing gates up to 2m/300kg


230V hydraulic actuator for swing gates up to 2m and weighing up to 300kg. Durable construction, made of anodized aluminum.
Bypass valves allow precise torque adjustment during opening and closing in a separate and independent manner.

The actuator does not have limit switches, therefore the installation of mechanical stops is required. The drive has hydraulic locks for closing and opening.

TECHNICAL DATA:

  • Power supply voltage: 230V ±10% 50 Hz
  • Motor supply voltage: 230 V (6.3uF capacitor)
  • Power consumption: 250 W
  • Max. wing length: 2 m
  • Max. leaf weight: 300 kg
  • Usable working stroke: 270 mm
  • Opening time: 17 s
  • Limit type: working time, mechanical stops required
  • Slowdown: no
  • Hydraulic lock: on closing and opening
  • Unlocking: triangular key
  • Reaction to obstacle: hydraulic clutch
  • Use frequency: 500c/24
  • Tightness class: IP57
  • Operating temperature range: from -20°C to +60°C
  • Dimensions: 83x83x1025mm
