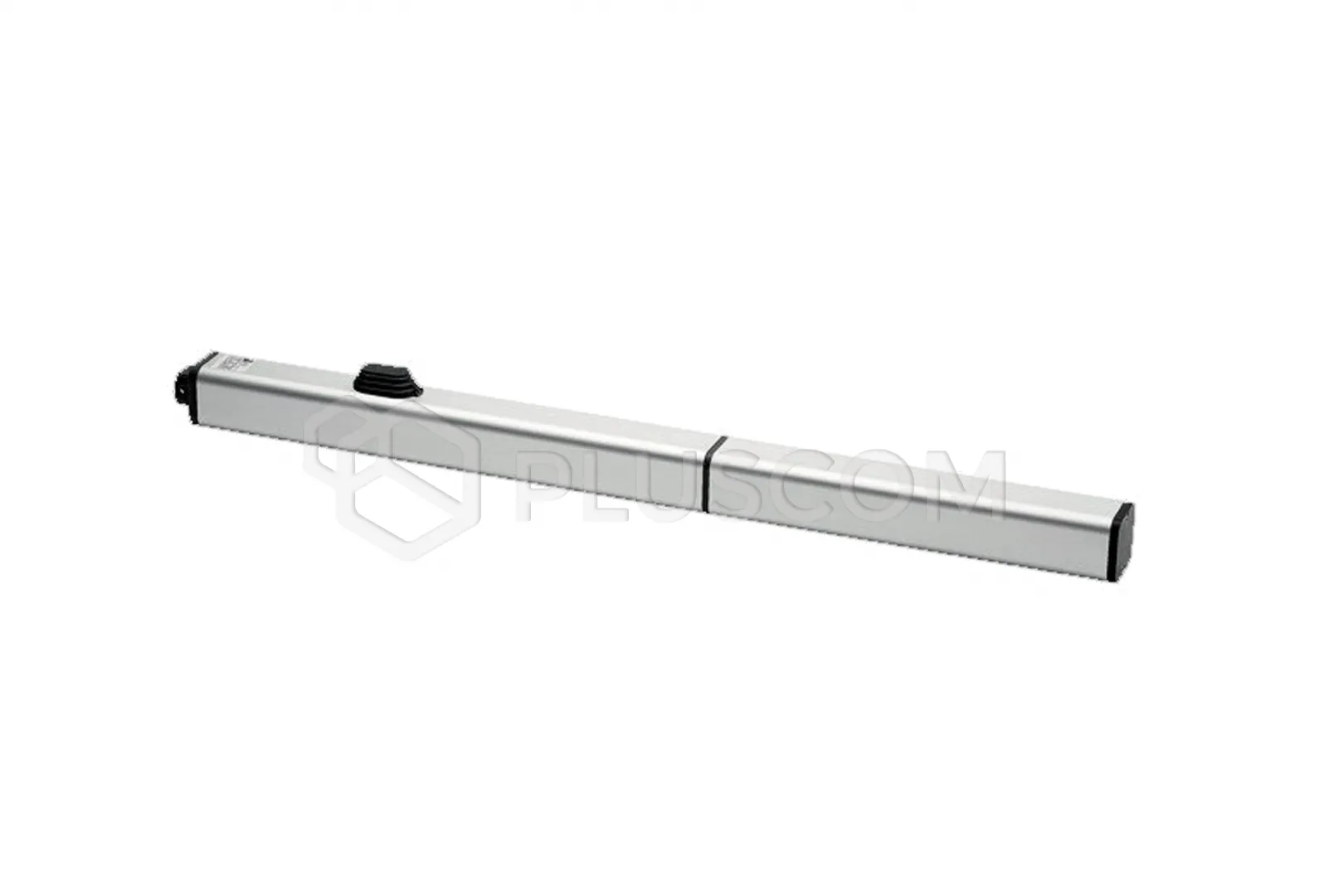

BFT 2600016 Actuator 230V for sash 4.5m/500 kg

1198,16 EUR including 23.00% VAT
Product code: #37449
Manufacturer: BFT
  • leaf length up to 4.5m
  • leaf weight up to 500kg
  • 230V engine power supply
  • useful stroke 390 mm
  • maximum angle 123°
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2600016 230V actuator for swing gates with a wing up to 4.5m/500 kg


Hydraulic actuator with a direction change mechanism for wings weighing up to 4.5m 500 kg.
Extremely durable and reliable hydraulic for industrial and housing estate applications.
Slowing down during the closing phase guarantees quiet and smooth movement even for the largest wings. The adjusting screw also allows you to adjust the intensity of the slowing down to the requirements of any situation.

The brass unlocking knob, secured with an individual key, facilitates manual opening of the wing in the event of a power failure.

TECHNICAL DATA:

  • Power supply voltage: 230V ±10% 50 Hz
  • Motor supply voltage: 230 V (8uF capacitor)
  • Power consumption: 250 W
  • Max. wing length: 4.5 m
  • Max. leaf weight: 500 kg
  • Usable working stroke: 390 mm
  • Max opening angle: 123°
  • Opening time: 28s + slowdown
  • Type of limit switches: working time, bumpers required
  • Slowdown: on closing, 20mm
  • Lock: electric lock
  • Unlocking: personalized key
  • Reaction to obstacle: electric clutch
  • Use frequency: 500c/24, thermal switch 160°C
  • Tightness class: IP55
  • Operating temperature range: from -10°C to +60°C
  • Dimensions: 90x90x1418mm
Download
User manual 1.76 MB
