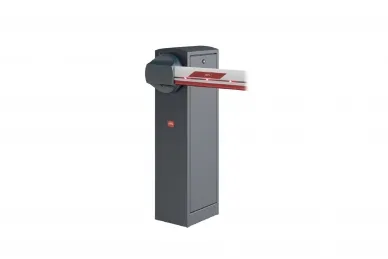

BFT 2450125 MAXIMA 30 Electromechanical barrier up to 3m

3016,49 EUR including 20.00% VAT
Product code: #37445
Manufacturer: BFT
  • Permissible arm lengths: 3m
  • Opening time: 1.7s
  • Single-phase motor in oil bath
  • Control unit: CSB-BR
  • For intensive work

Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2613057 ATM30 Aluminum arm, elliptical 3 m BFT 2605252 ATM30 90 Boom bar articulated 3m

BFT 2450125 MAXIMA 30 barrier central unit for 3m arm (P940070)


230 V electromechanical barrier for controlling entrances from 1.7 to 3.0 m. The opening time depends on the width of the barrier (approx. 1.7 s) with slowdown. It is adapted for installation in areas with high traffic frequency and frequent reversal of the direction of traffic (e.g. car parks with high traffic frequency, etc.).

The unit is equipped with a single-phase motor powered by 230 V, in an oil bath. This solution guarantees exceptional durability and does not require maintenance. What's more, it ensures exceptionally quiet operation.

To ensure secure data transmission, BFT transmitters use a Rolling Code coding system (rolling code), which manages control in a completely secure way and prevents any external interference. Pressing the transmitter button sends a different code to the control unit each time, which can only be identified by the transmitter and accepted only once.

The central unit is equipped with an inductive encoder, used to detect obstacles, which guarantees a quick change in direction of movement and improves the overall fluidity of movement during acceleration and deceleration.

TECHNICAL DATA:

  • Motor power supply: 230 V
  • Motor type: Single-phase
  • Opening time (depending on the width of the barrier): 1.7 s
  • Slowing down: YES
  • Lock: mechanical
  • Internal lubrication: in oil bath
  • Usable passage (max.): from 1.7 to 3.0 m
  • Connectivity: no
  • Control unit: CSB-BR
  • Unlocking: inside the structure
  • Use frequency: very intensive
  • Cataphoretic coating: RAL7015 and paint
  • Protection class: IP54
  • Operating environment (max.): -30 ÷ 60 °C
  • Dimensions: 1110x480x280mm

Download
