Beninca KTOM4024E.P 24V swing gate kit, leaves up to 4.0m

Beninca KTOM4024E.P 24V swing gate kit, leaves up to 4.0m

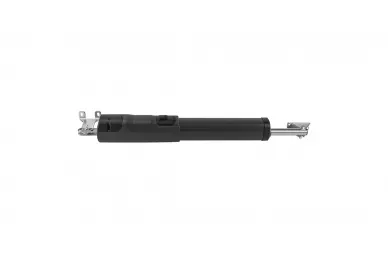

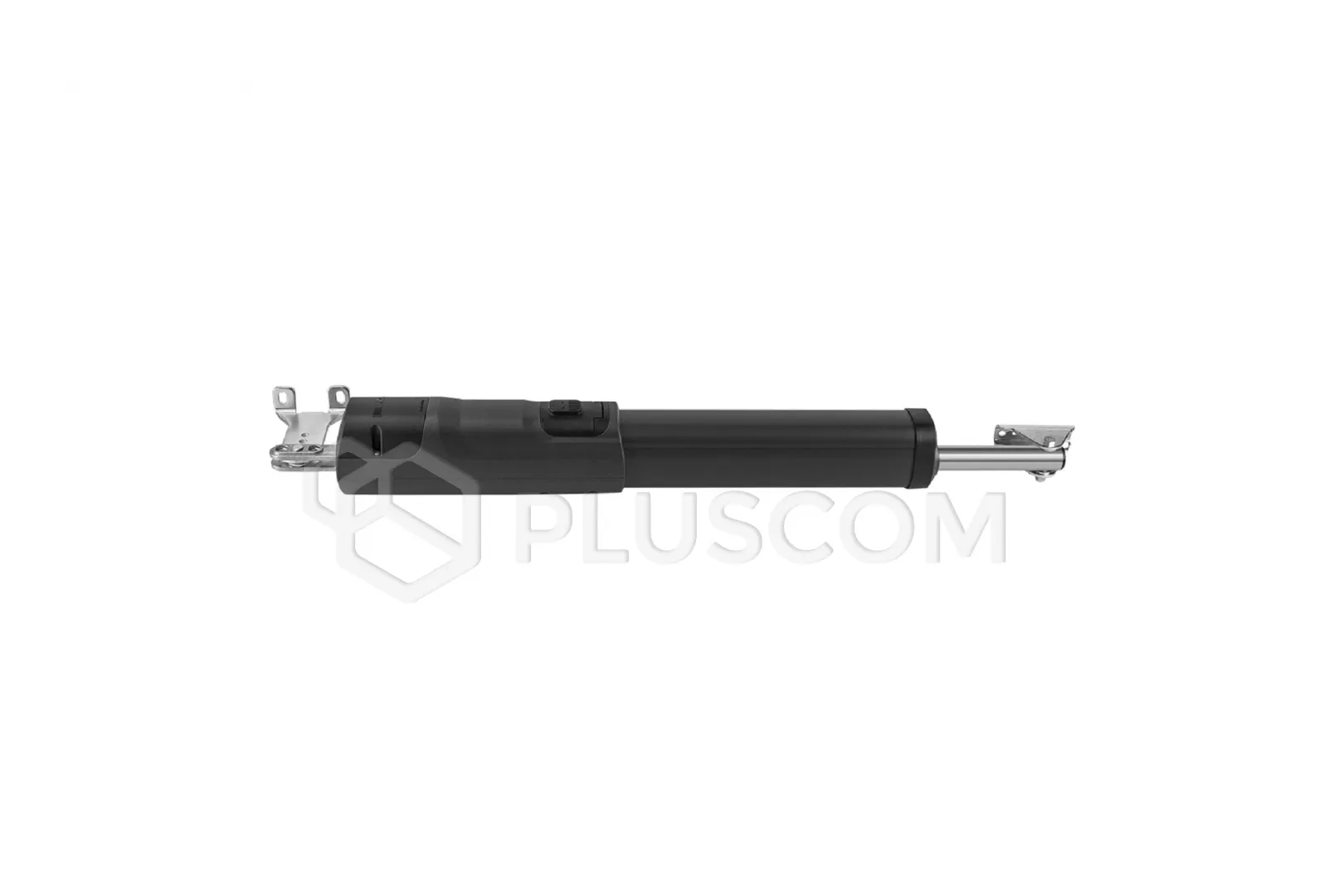

TOM40M / TOM4024E
Telescopic actuator for 230 Vac and 24 Vdc
Irreversible electromechanical telescopic actuator with a built-in encoder (24Vdc version) or with 2 adjustable mechanical opening and closing stops, accessible from above and located under a metal cover (230 Vac version).
Ideal for every type of swing gate, thanks in part to its compact dimensions (only 96 mm wide) and universal mounting brackets. The 45° angle of the power cable minimises the distance from the ground. The rear and front brackets, aligned on the same axis, distribute loads better and optimise actuator life. The worm screw protected by a cleaning ring and the stainless steel shaft make it suitable for dusty or sandy environments and locations with aggressive weather conditions. Manual release secured with a personalised key.
Product features:
Leaf length: 3m, 4m or 5m
230 Vac or 24Vdc supply
Opening time 11" (TOM3024E)
Mechanical stops and limit switches adjustable from above
Available with limit switches (TOM40M) or an encoder (TOM40ME)
Adjustable mounting bracket – three fixing points
45° cable outlet
Supplied with the TRUST24 or HEADY control unit
Standby power consumption < 0.8 W
Can be integrated with a KNX system
Programmed via PRO.UP
