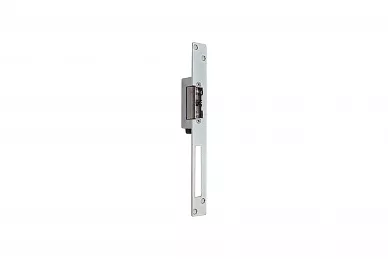

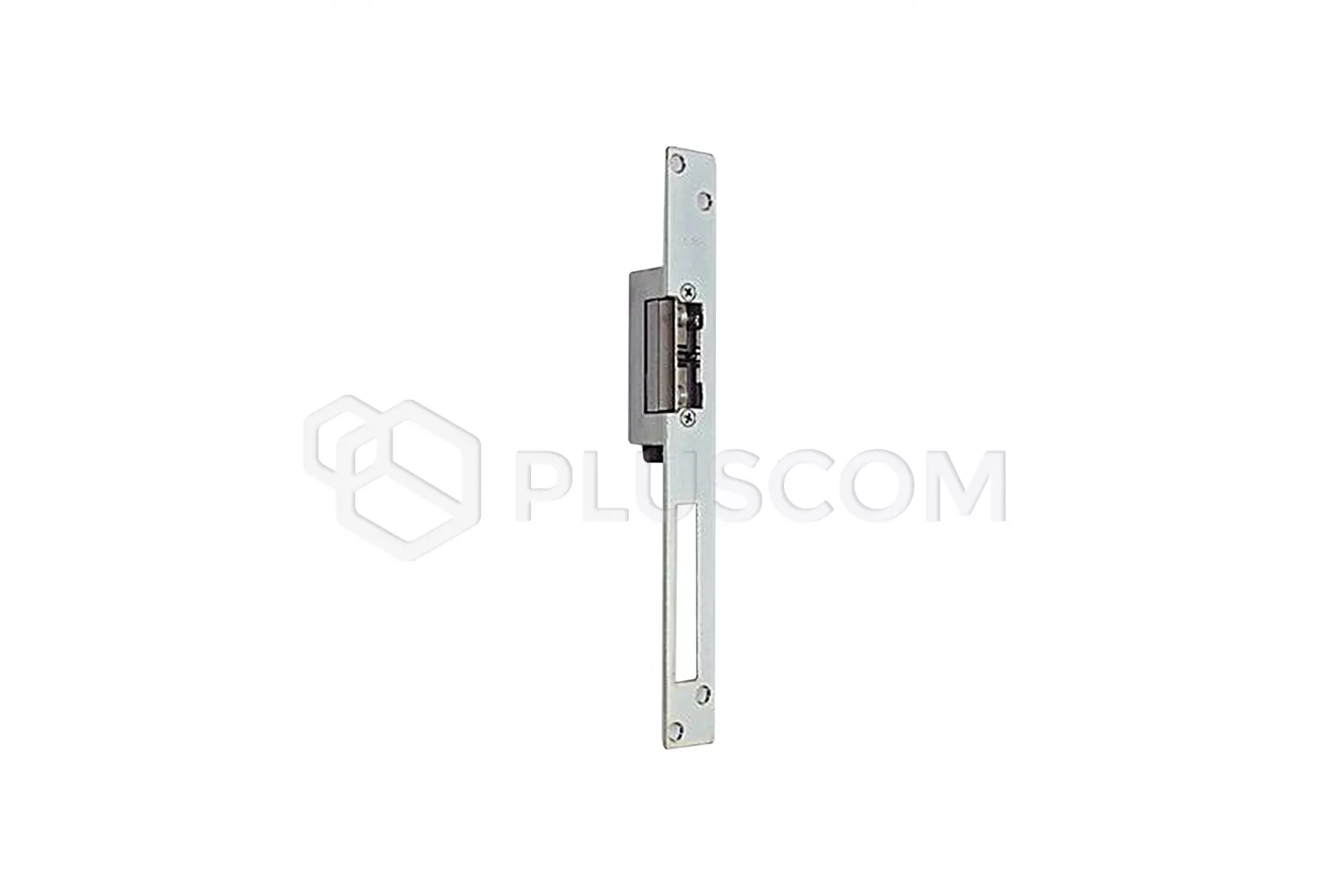

BeFo 321211 Electric strike reverse, with signaling 12V DC

88,42 EUR including 23.00% VAT
Product code: #22077
  • Reversible with signaling, left/right
  • Door opening signaling
  • Power: 12V DC
  • Regulation: 4mm
  • Width: 20mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

ASSA ABLOY BEFO 321211 Electric strike, reversible left/right with door opening signaling 12V DC


BEFO 321211 is an electric strike with a reverse opening function and door status signaling.

PRINCIPLE OF OPERATION:

Electrocatch reversible type, its normal state is open (NO) If voltage is applied to the coil to lock the electro, loss of power will unlock the door. Door lock was closed to the voltage must be present at all times at the terminals.
The status of the door OPEN or CLOSED is signaled.
This mode of operation is used in evacuation systems in public buildings, offices, schools or cinemas, where loss of power to open the door.

Dimensions:

Dimensions:

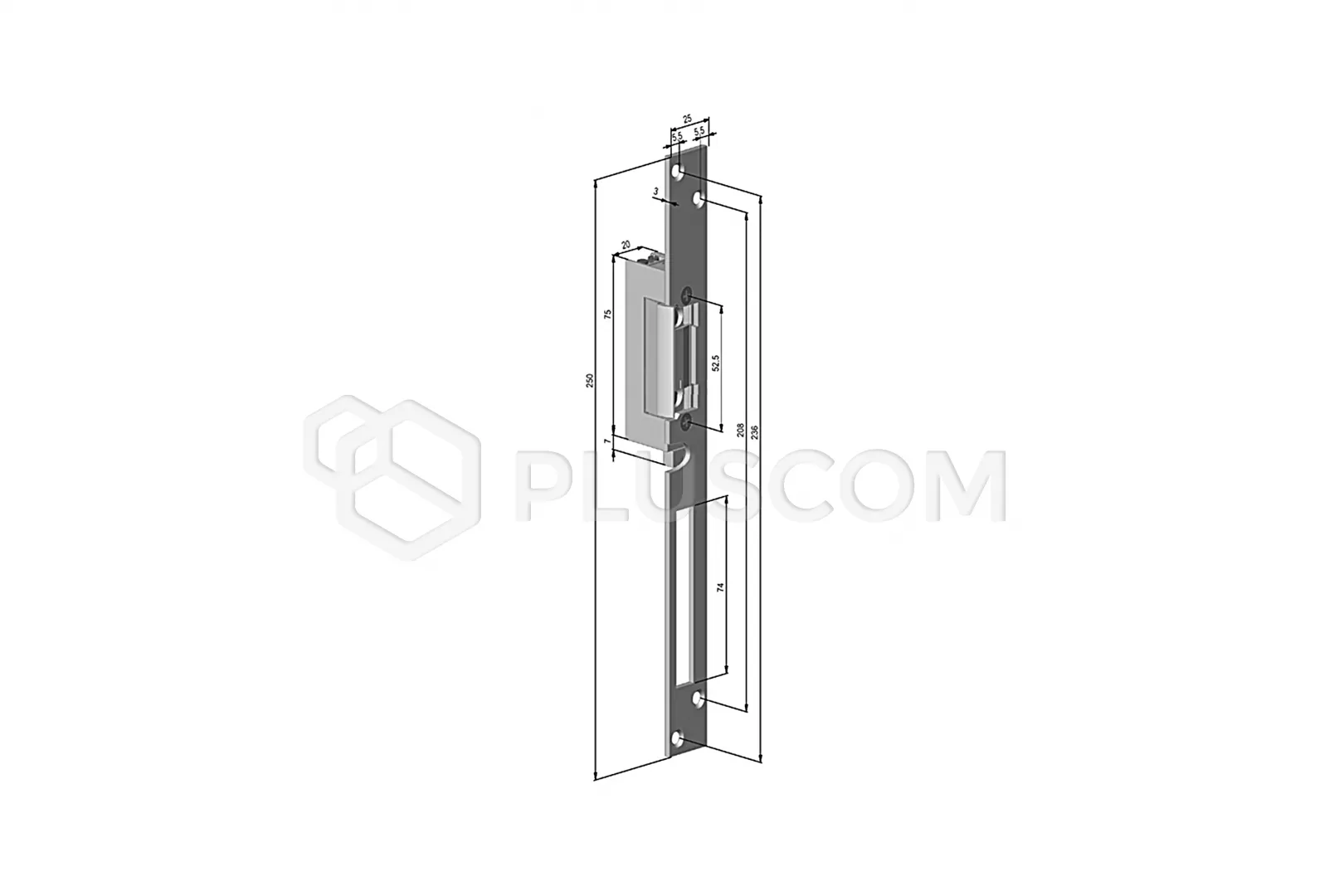

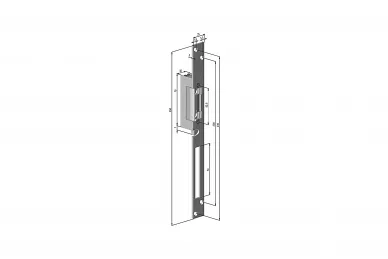

DIMENSIONS AND ADJUSTMENTS:
  • electric latch releases can be adjusted in the range of 4 mm
  • 52.5mm spacing of the mounting screws
  • universal left/right
  • width 20mm

  • dimensions of the electric strike: 75x20x28mm
  • sheet dimensions: 250x3x25mm
Working temperature 35 ° C (when closed, the coil is under constant voltage).
