BeFo 21211 Electric strike with signaling

75,95 EUR including 20.00% VAT
Product code: #22081
  • Universal, left/right
  • Door opening signaling
  • Power: 12V AC/DC
  • Regulation: 4mm
  • Width: 20mm
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

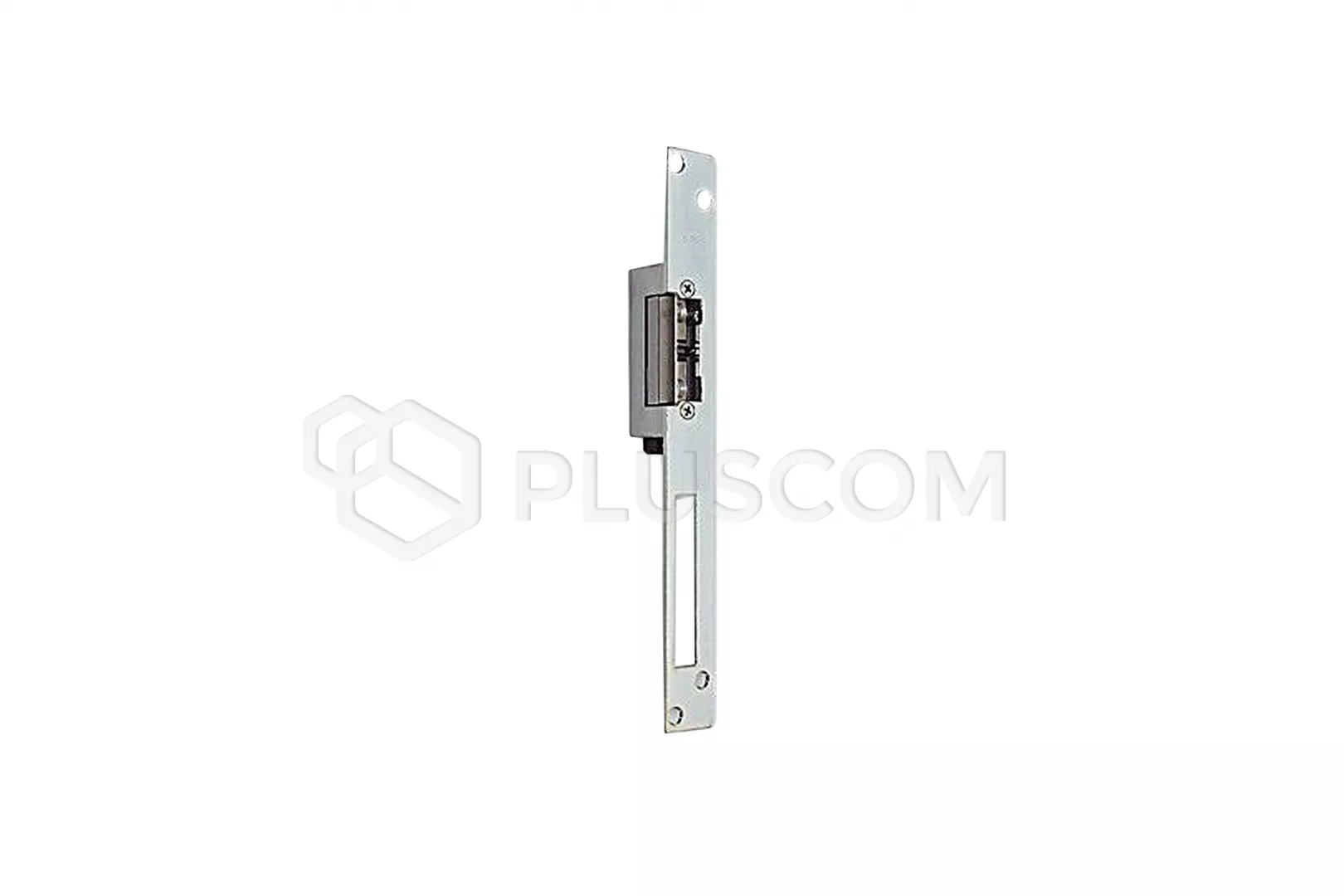

ASSA ABLOY BEFO 21211 Electric strike with with signaling opening the door


The electric strike is in the OPEN position only when the impulse is triggered. otherwise the door is closed. BEFO 21211 is equipped with a microswitch with terminals that completely replaces the additional electromagnets installed in the door.

The electric strike can be controlled by voltage:
  • constant: 12V, 600mA
  • variable: 12V, 300mA
PRINCIPLE OF OPERATION:
The electric strike will be perfect for places where there is a need to control the number of people during the day and monitoring whether the door is closed or open.

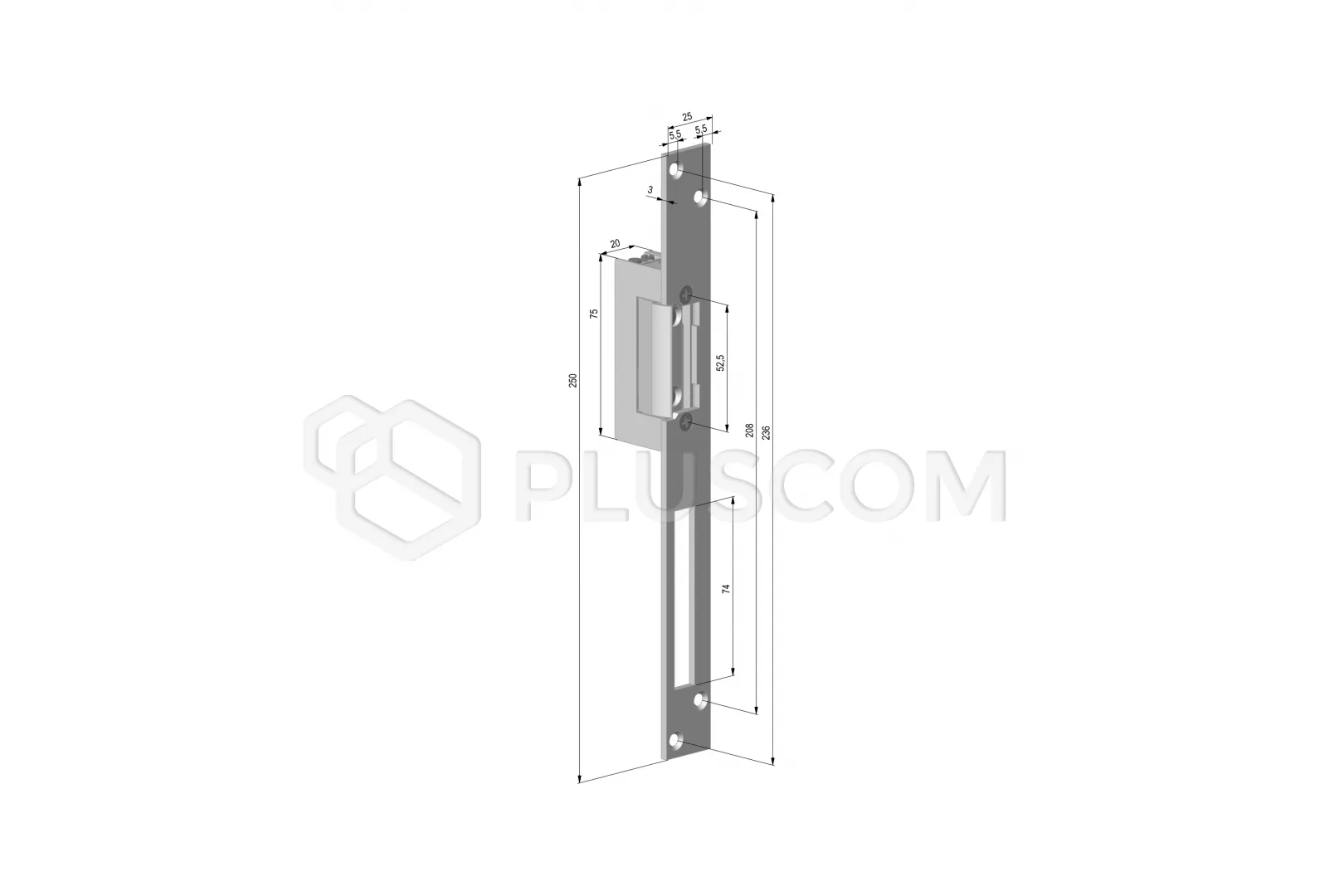

Dimensions:

Dimensions:


DIMENSIONS AND ADJUSTMENT:
  • electric strike latch can be adjustable within 4mm
  • universal, left / right
  • 52.5mm spacing of the mounting screws
  • 20mm width

  • dimensions of the electric strike: 75x20x28mm
  • sheet dimensions: 250x3x25mm
  • working temperature: -15 ° C ~ 50 ° C
