BeFo 211211 Electric strike with signaling and regulation

56,95 EUR including 20.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #27762
  • Universal, left/right
  • Door opening signaling
  • Power: 12V AC/DC
  • Regulation: 4mm
  • Width: 20mm
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

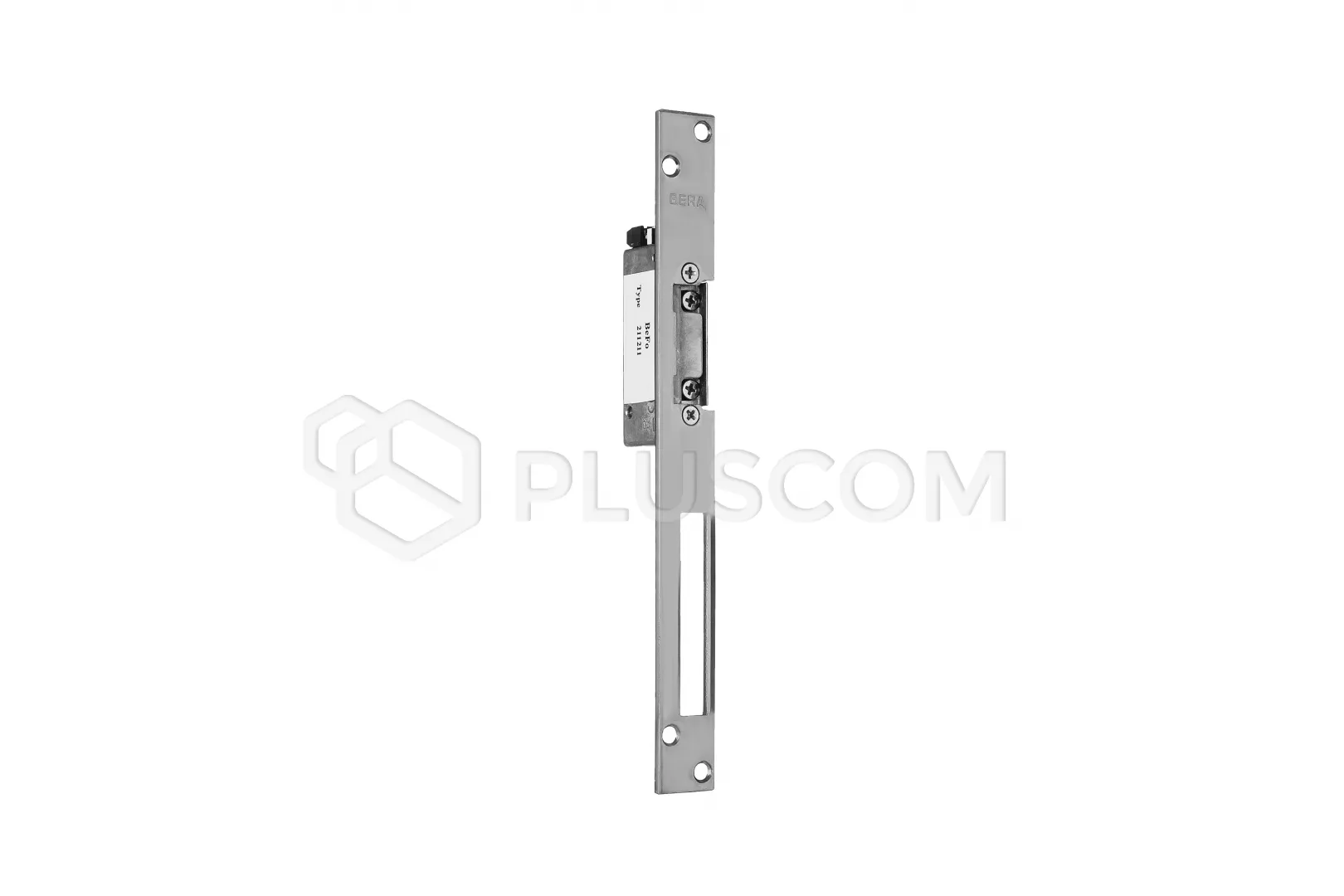

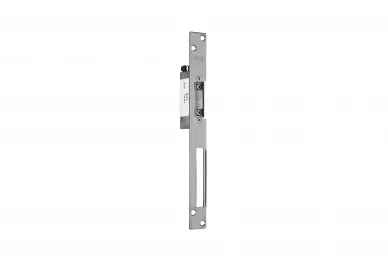

ASSA ABLOY BEFO 21211 Electric strike with signaling and regulation


BEFO 211211 is a standard model of electric strike with latch position signaling, which can be installed in left/right door frames, with latch adjustment in 4mm range.
The electric strike can be controlled with a DC voltage of 12V, 0.22 - 0.23A. It is used in demanding installations low power consumption

OPERATING PRINCIPLE:
The electric strike is in the OPEN position only when the impulse is triggered. Apart from this time, the door is closed. BEFO 211211 is equipped with a microswitch z terminals, which completely replaces the additional solenoids installed in door.
The electric strike will be perfect for places where there is a need during the day controlling the number of people and monitoring whether the door is closed or open.
BEFO 211211 Electric strike with signaling and regulation

BEFO 211211 Electric strike with signaling and regulation

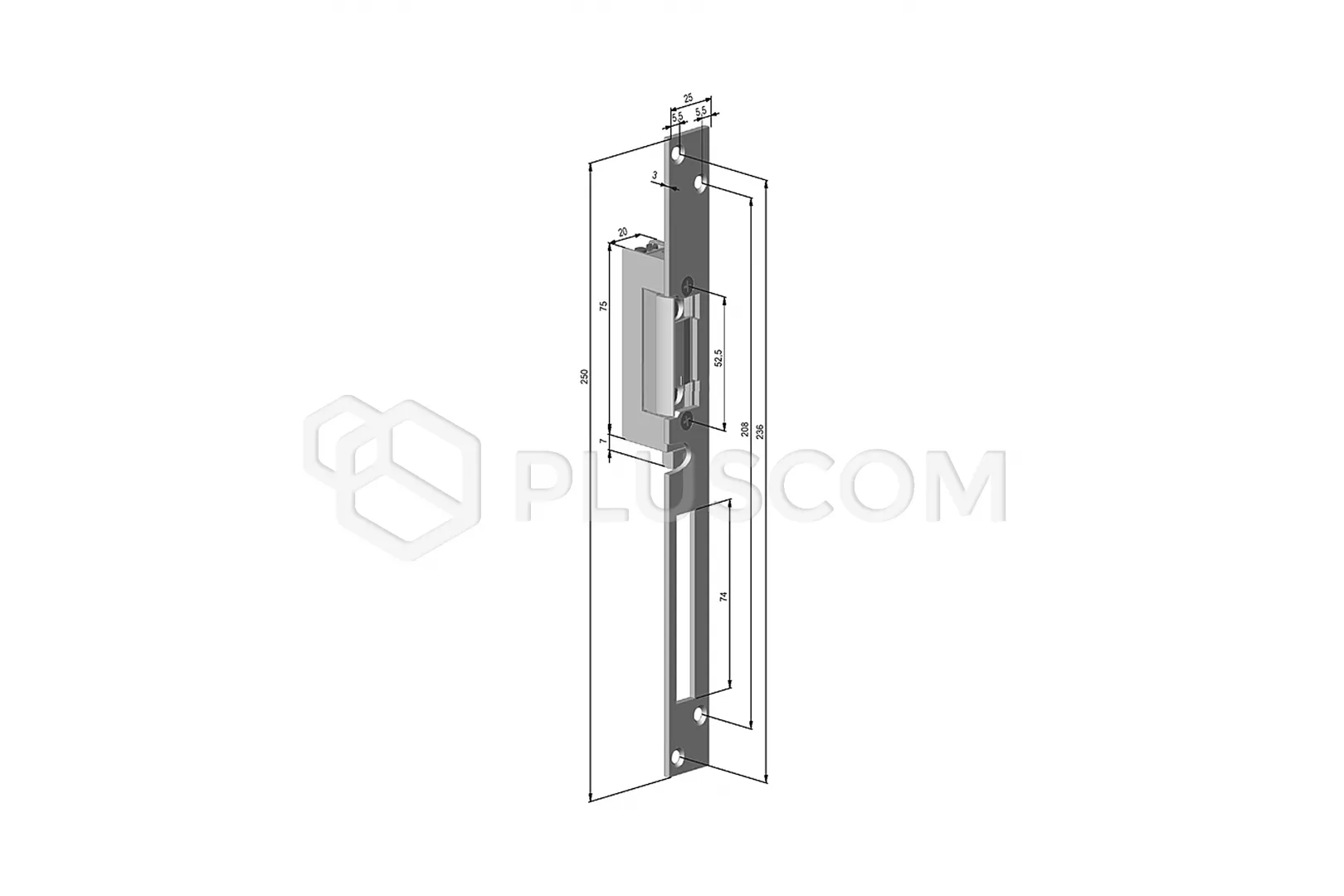

DIMENSIONS AND ADJUSTMENT:
  • "language" the electric strike can be adjusted in the range of 4 mm
  • universal, left/right
  • spacing of mounting screws 52.5mm
  • width 20mm

  • electric strike dimensions: 75x20x28mm
  • sheet dimensions: 250x3x25mm
  • operating temperature: -15°C ~ 50°C
