BeFo 11211 Low power electric strike12V AC/DC

53,74 EUR including 22.00% VAT
Product code: #22078
  • Universal, left/right
  • Power: 12V AC/DC
  • Low power
  • Regulation: 4mm
  • Width: 20mm
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

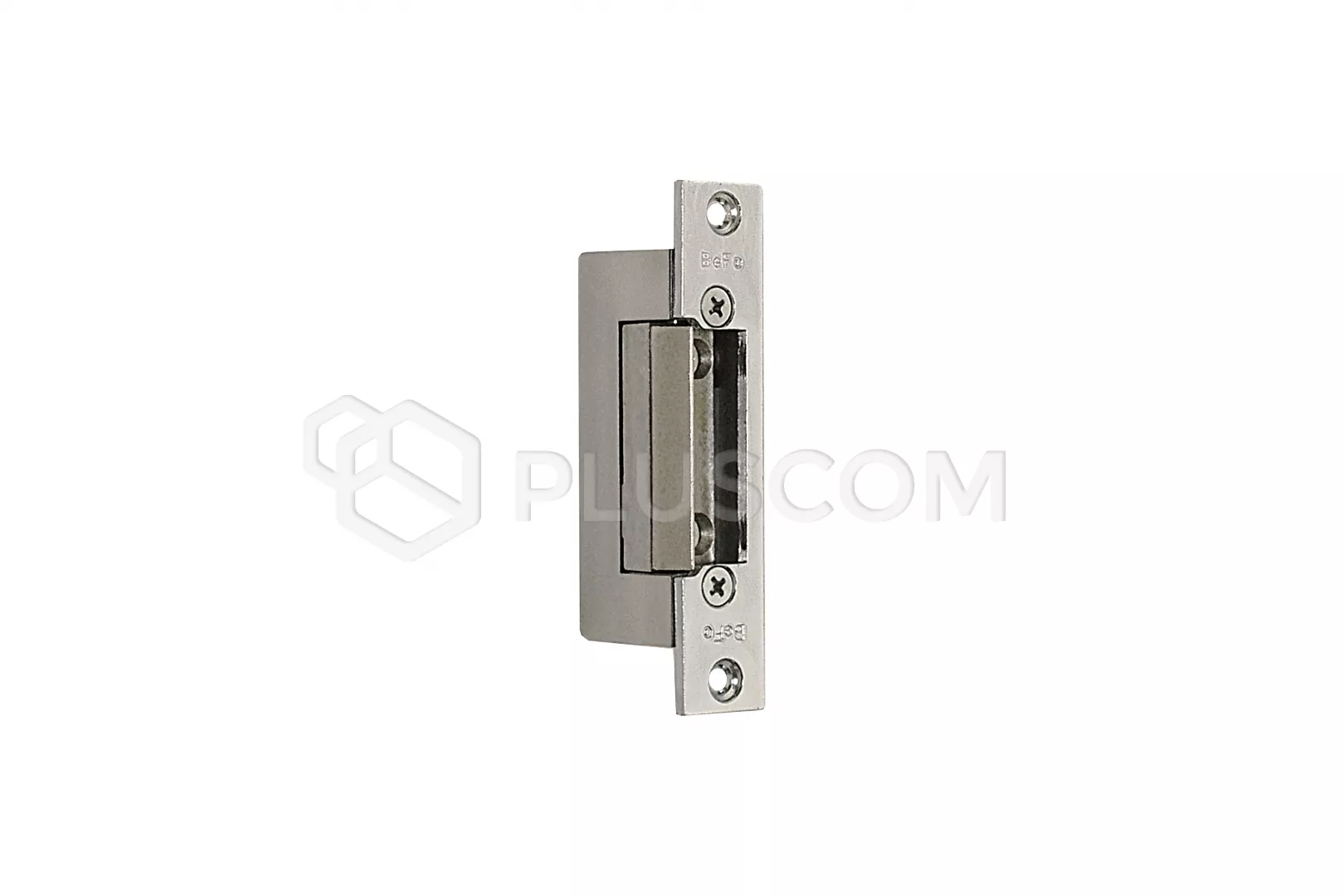

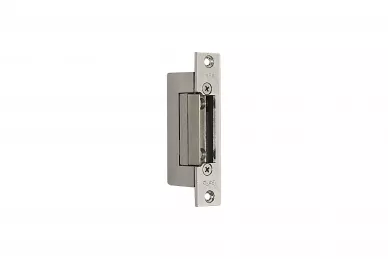

ASSA ABLOY BEFO 11211 Electric strike, low-power 12V AC/DC


BEFO 11211 is a basic model of an electric strike without a switch and memory, with low power consumption, may be installed in left / right door frames, with a latch adjustment within the range of 4mm.
The electric strike can be controlled by voltage:
  • constant: 12V, 230mA
  • variable: 12V
It is in the OPEN position only for the duration of the impulse - i.e. for the time when the corresponding button of the control device is pressed. Besides, sometimes the door is CLOSED.

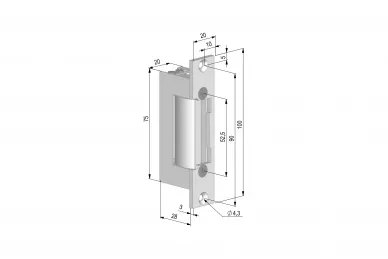

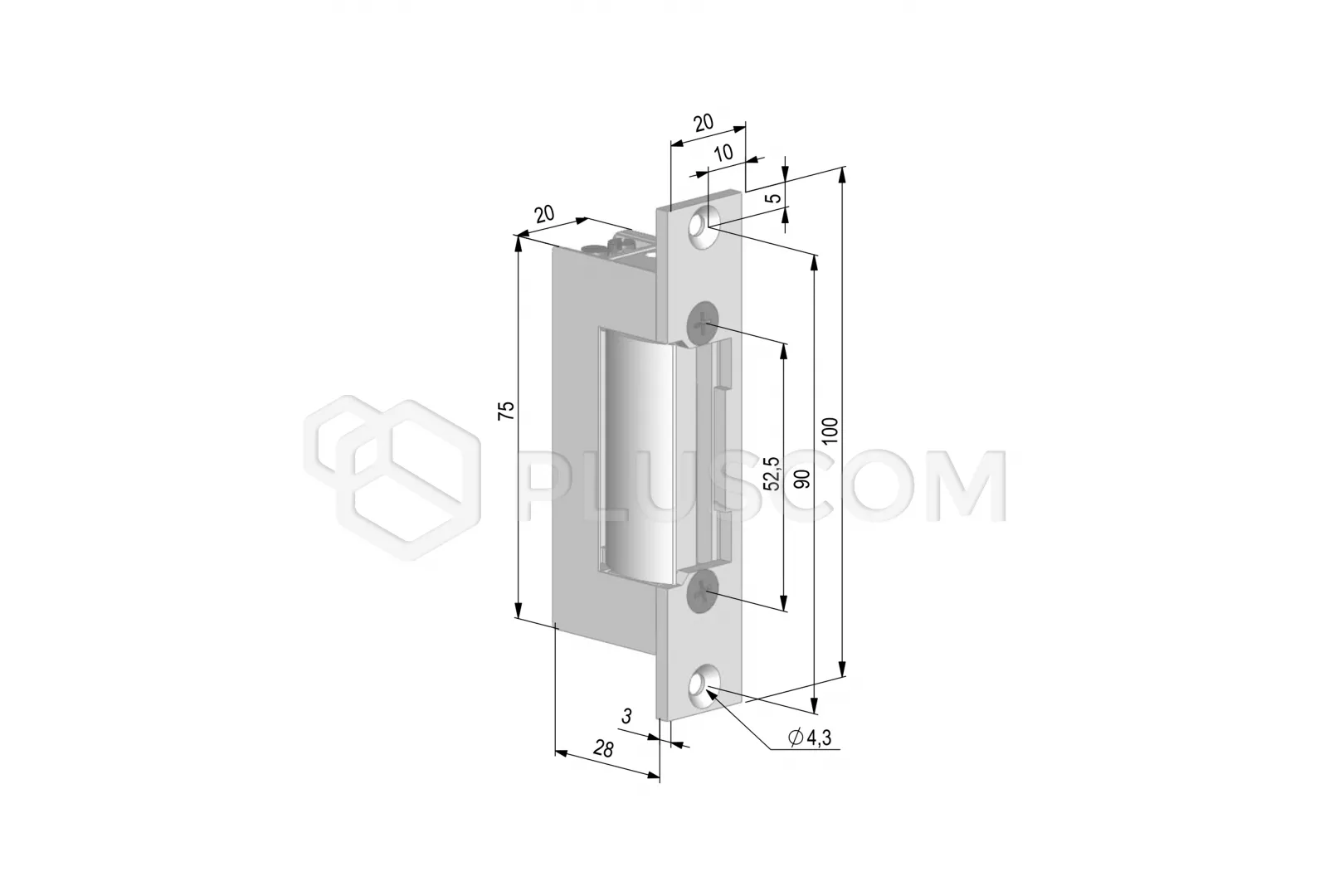

Dimensions:

Dimensions:


DIMENSIONS AND ADJUSTMENT:
  • electric strike latch can be adjustable within 4mm
  • universal, left / right
  • 52.5mm spacing of the mounting screws
  • 20mm width

  • dimensions of the electric strike: 75x20x28mm
  • sheet dimensions: 100x3x20mm
  • working temperature: -15 ° C ~ 50 ° C
