BCS-PAN9201S-S Multi-family IP outdoor panel

597,52 EUR including 23.00% VAT
Product code: #22098
Manufacturer: BCS
  • Flush or surface mounting
  • Built-in Mifare 13.56 MHz proximity card reader
  • Backlit keyboard with Braille markings
  • 1/2.9 "CMOS color camera
  • TCP/IP/SIP protocol
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BCS-PP16 Flush-mounted housing BCS-MODKD2 Access control module

BCS-PAN9201S-S Multi-family IP outdoor panel

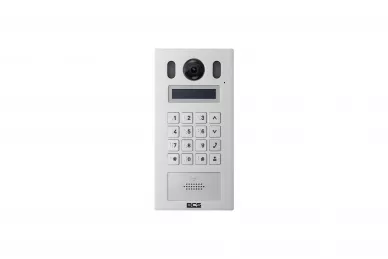

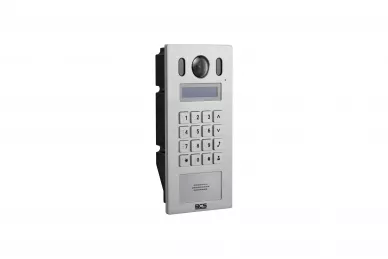

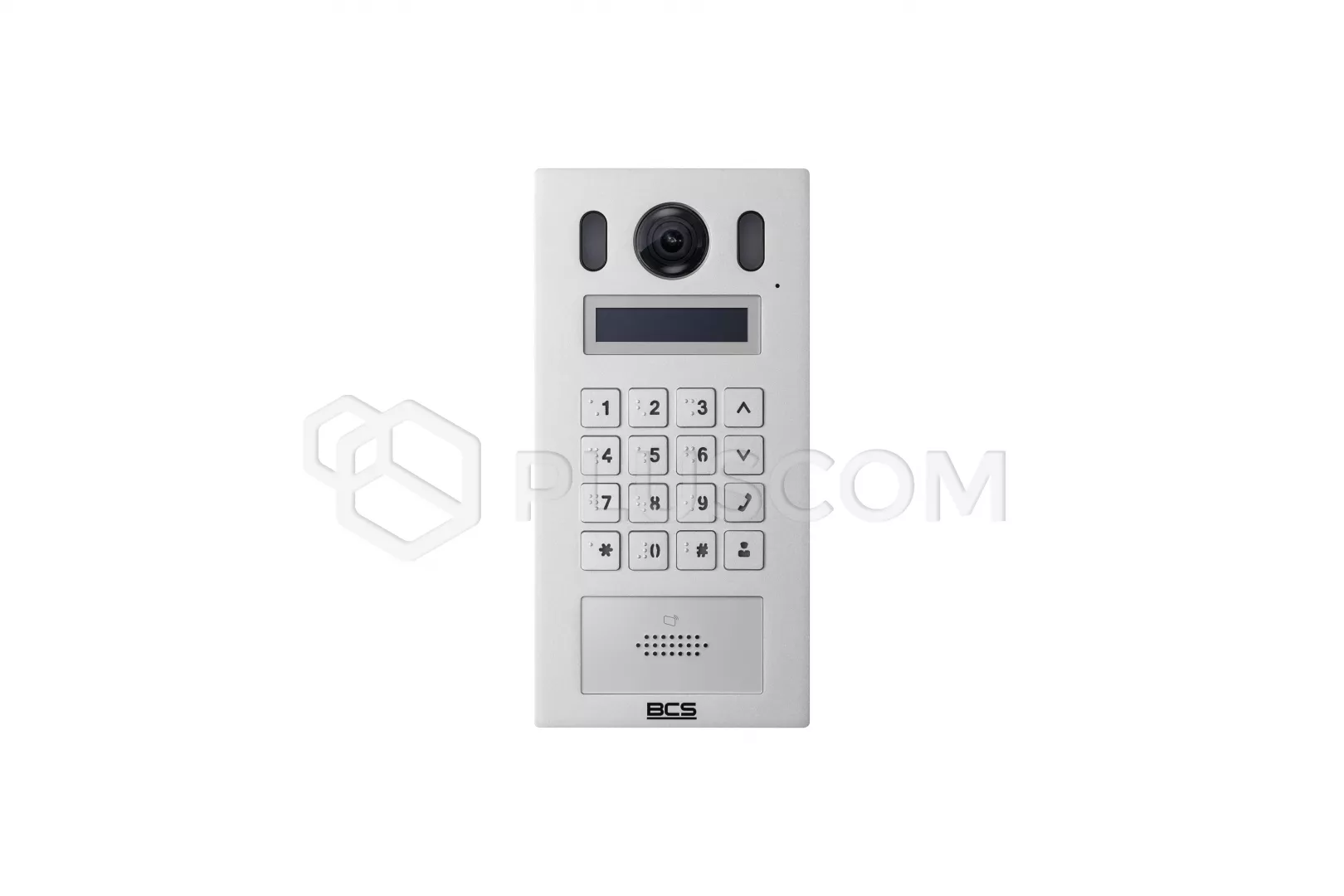

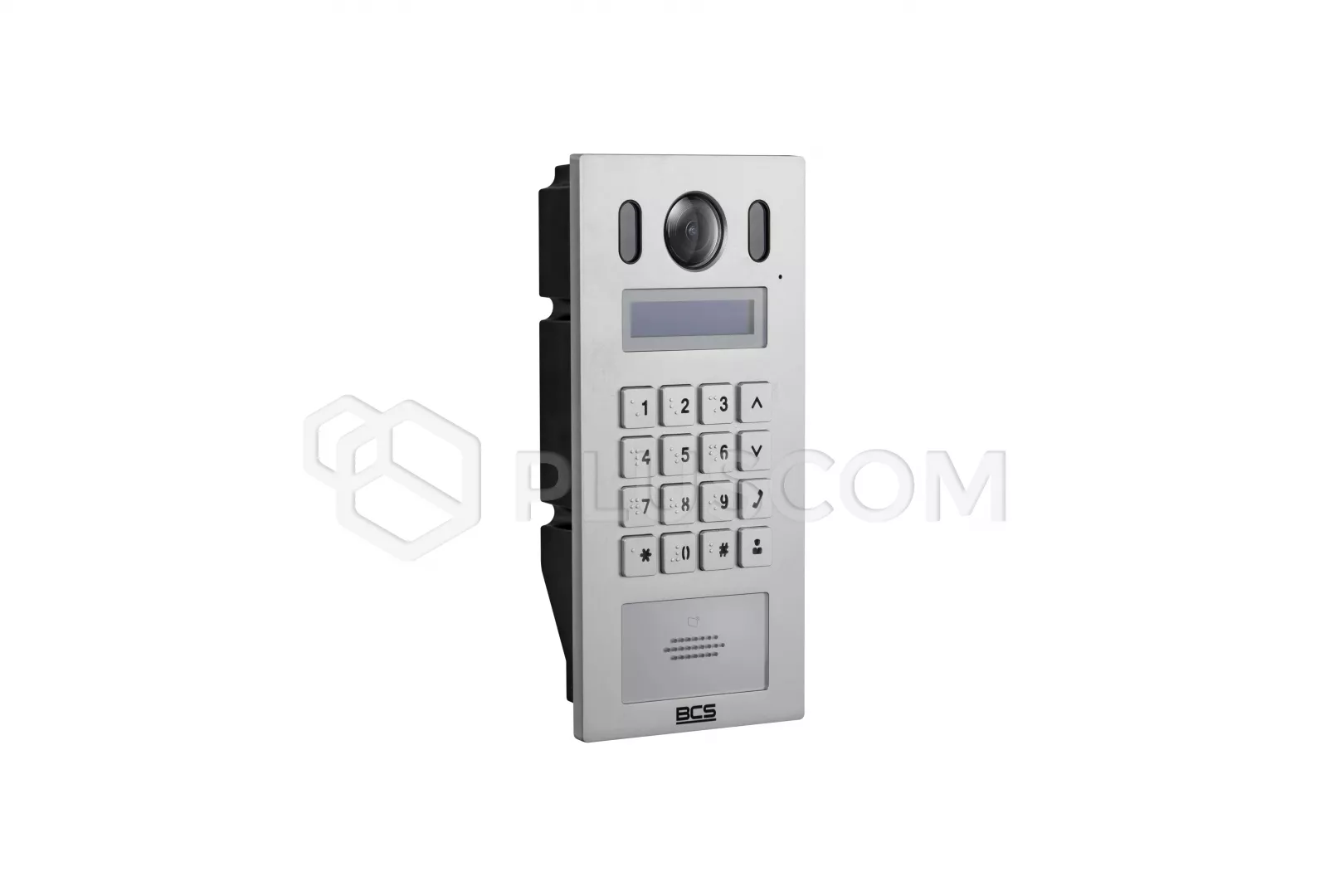

BCS-PAN9201S-S is an external panel equipped with a color CMOS camera 1 / 2.9 "with automatic LED backlight and 2mm lens. Dedicated is for multi-family houses.
We have the option of mounting the panel both flush and surface. Down selected mounting method, we must select a dedicated housing model.

BCS-PAN9201S-S is equipped with a numeric keypad with LED backlight and signs in Braille, Mifare card reader and also has OLED display with a diagonal of 2.3 ".

FEATURES AND FUNCTIONS
  • possibility to assign a default or additional relay to a given one proximity transponder or opening codee
  • management via a web browser - embedded web service Service
  • adjustment of image parameters, live view via Web Service
  • built-in Mifare 13.56 MHz proximity card reader
  • cooperation with BCS LINE recorders (supporting IP channels), RTSP, Onvif
  • TCP / IP / SIP protocol
  • opening codes support
  • calling any place in the system
  • possibility to connect to BCS-CP1 porter's switchboard
  • built-in voice prompts for easy operation
  • menu and voice messages in Polish or English
  • built-in tamper switch
  • function of recording audio-video messages for the tenant
  • built-in relay (C, No, Nc), support for exit button
  • expandable system up to 10 zones
  • maximum number of serviced flats: 200
  • RS485 output for connecting the BCS-MODKD2 relay module
  • output for connecting an additional active access control reader in the Wiegand
  • standard
