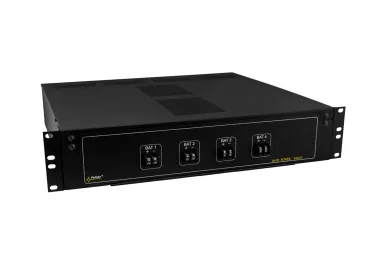

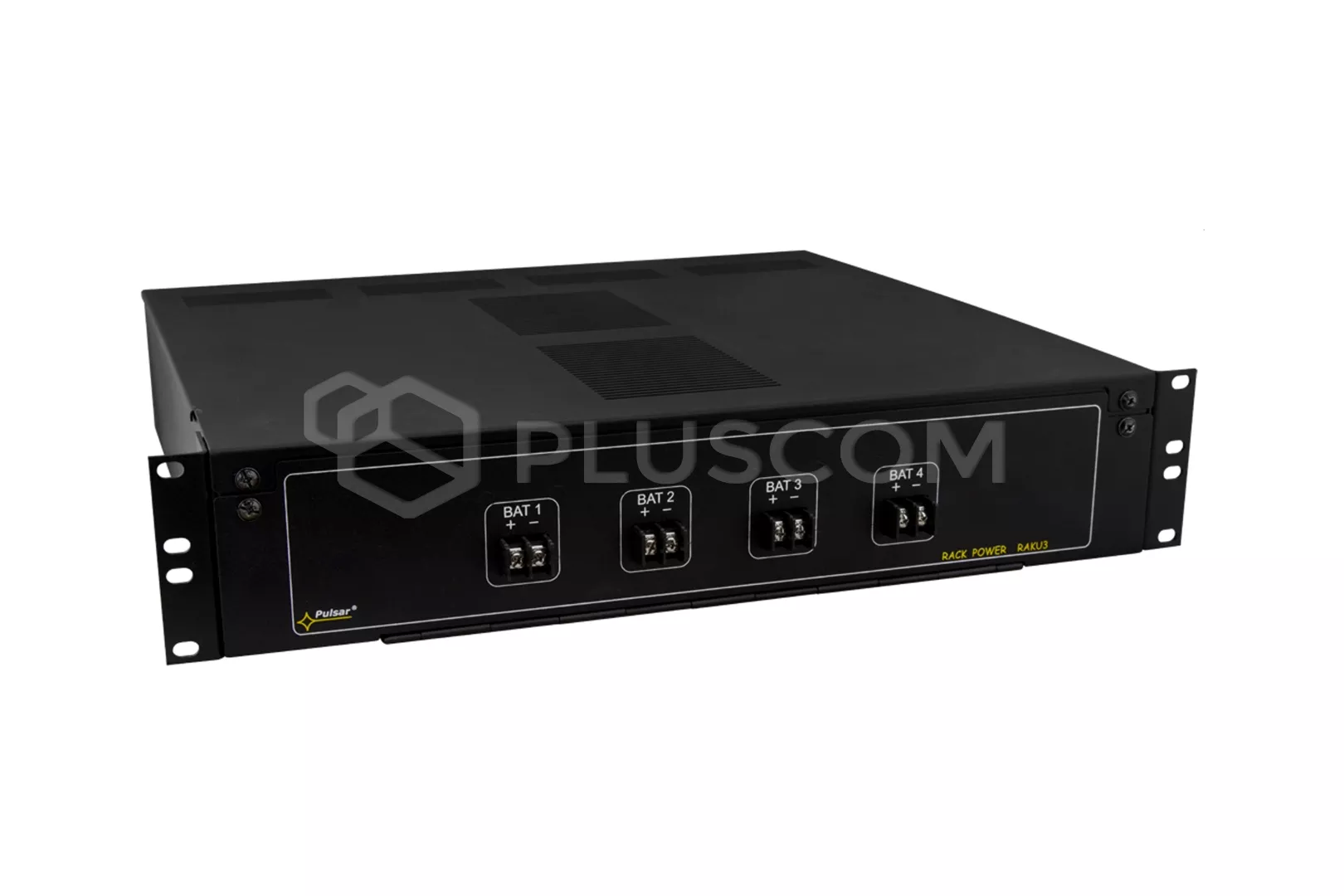

Pulsar RAKU3 battery enclosure 4x17Ah for RACK cabinets

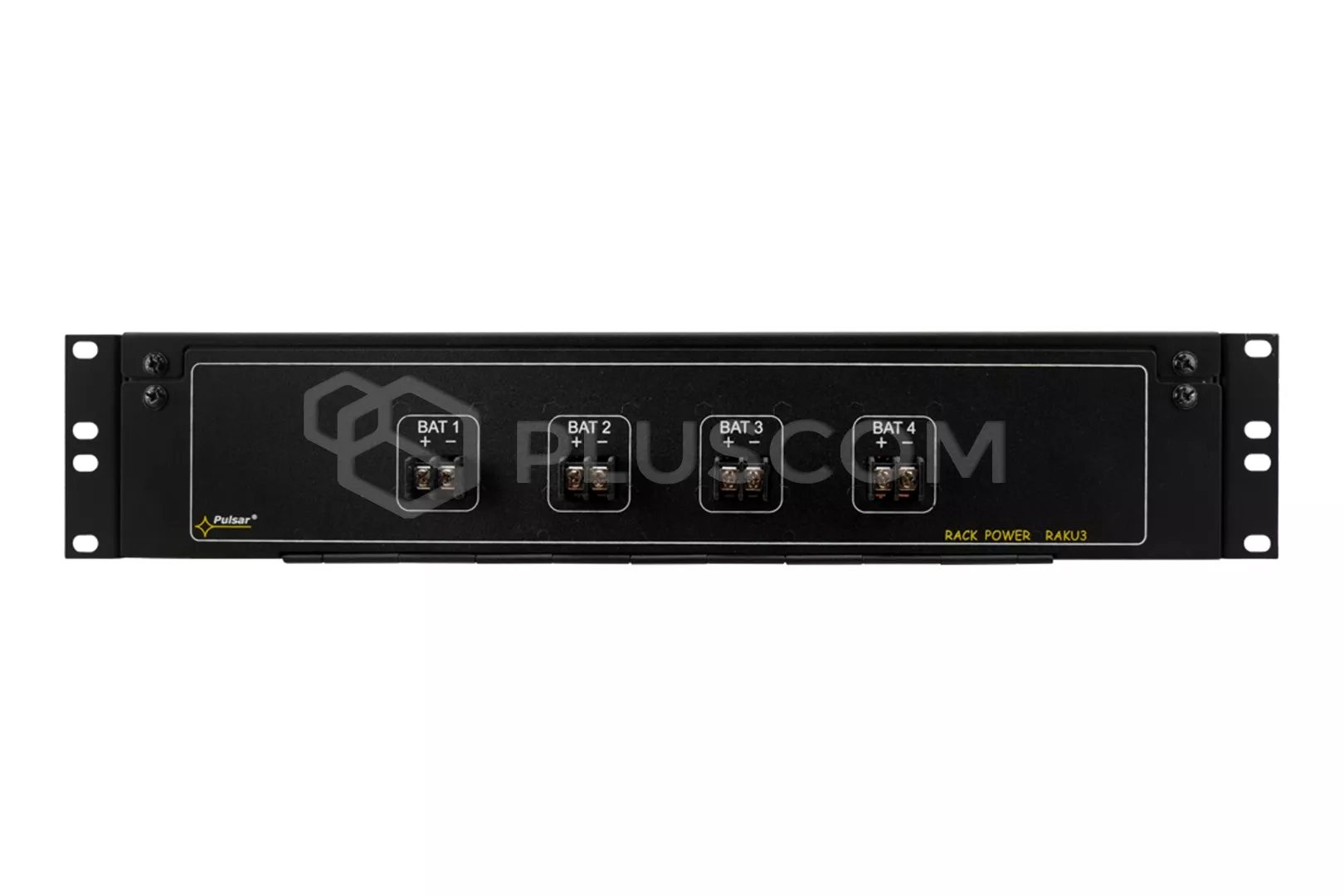

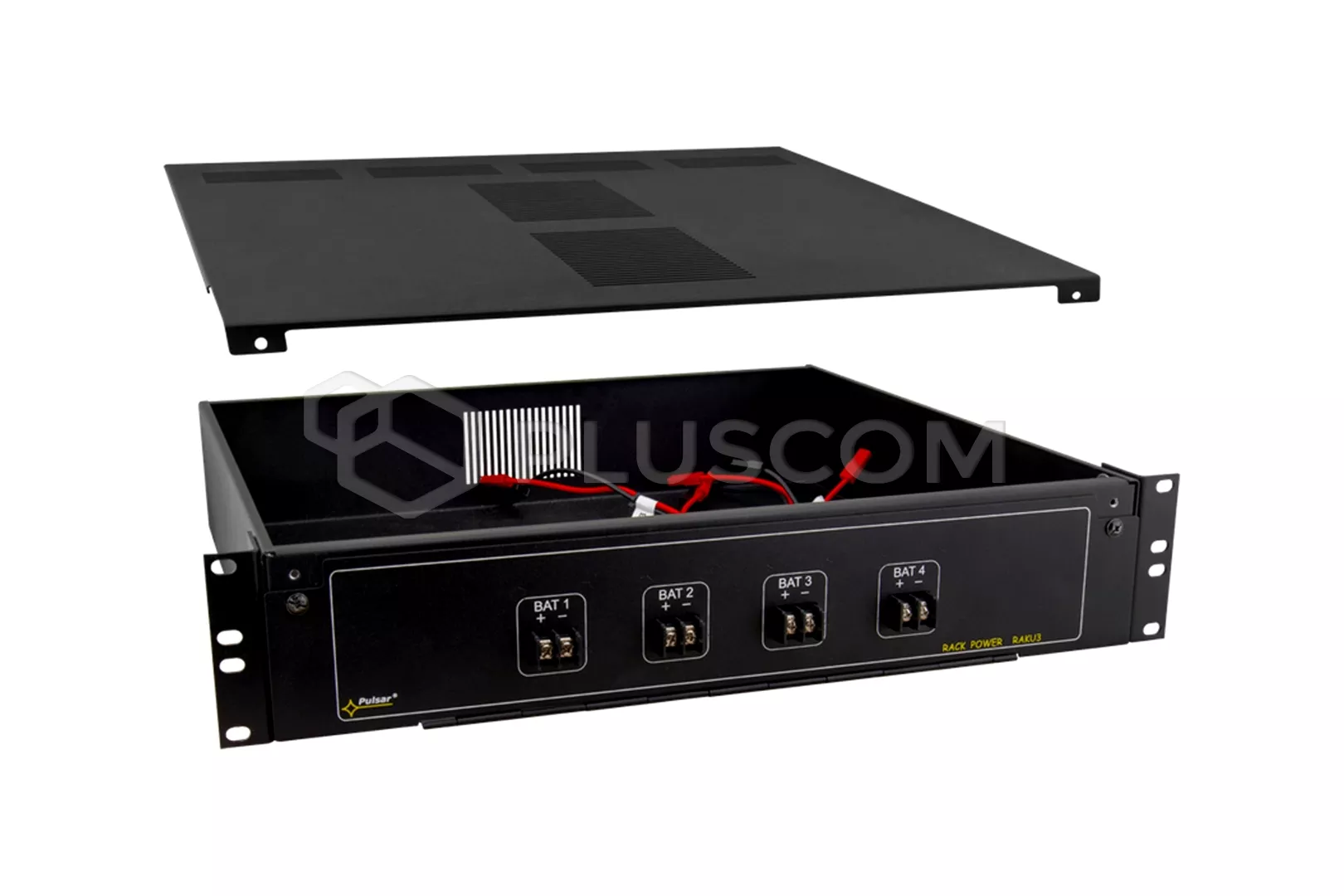

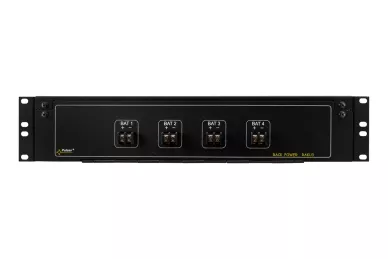

The RAKU3 battery enclosure is designed for installation 1÷4 of 7Ah / 17Ah/12V (SLA) batteries inside RACK 19" cabinets. Battery outputs are located at the front panel of the housing. It is fitted with four BAT1÷BAT4 connectors for capacity and voltage configuration of batteries inside enclosure.

Pulsar RAKU3

Pulsar RAKU3

TECHNICAL DATA:
  • Battery compartment 4x17Ah/12V (SLA) max.
  • Output load 20A max.
  • Output voltage 60V DC max.
  • Mounting dimensions: W=19'', H=2U, D=425
  • Dimensions: 483x88x425mm(+/- 2mm)
  • Weight: 5.9kg
Pulsar RAKU3

Pulsar RAKU3

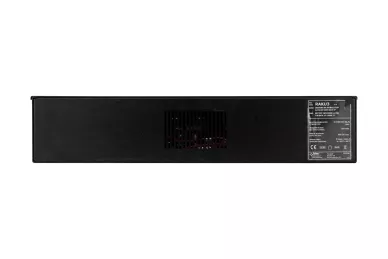

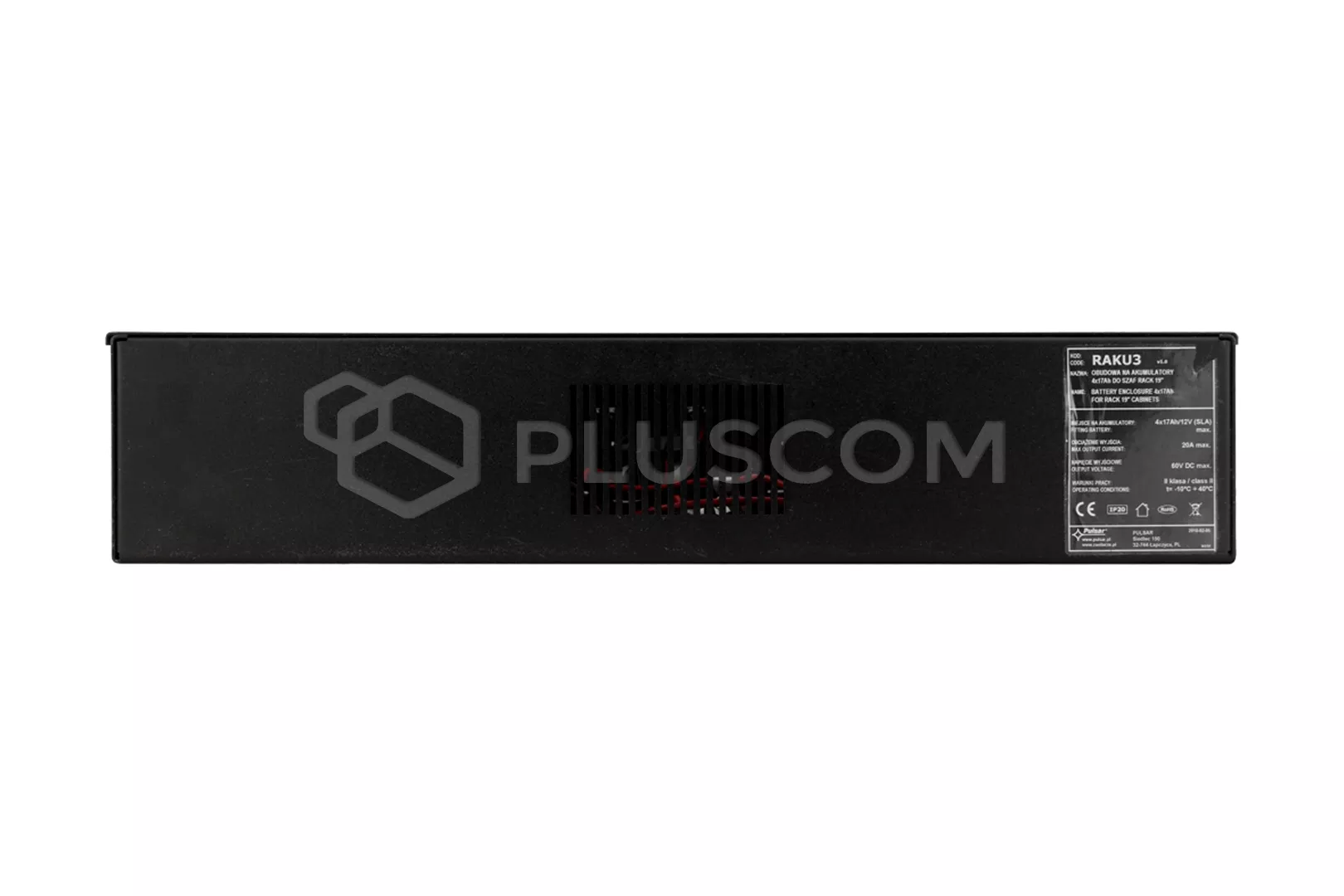

View from the back:

View from the back:

The enclosure is dedicated to standing cabinets
