AVO CONNECT Single-family video intercom set

AVO CONNECT Single-family video intercom set

AVO video intercoms are modern devices that combine the functions of traditional intercoms with the ability to transmit video, thereby increasing user safety and comfort.

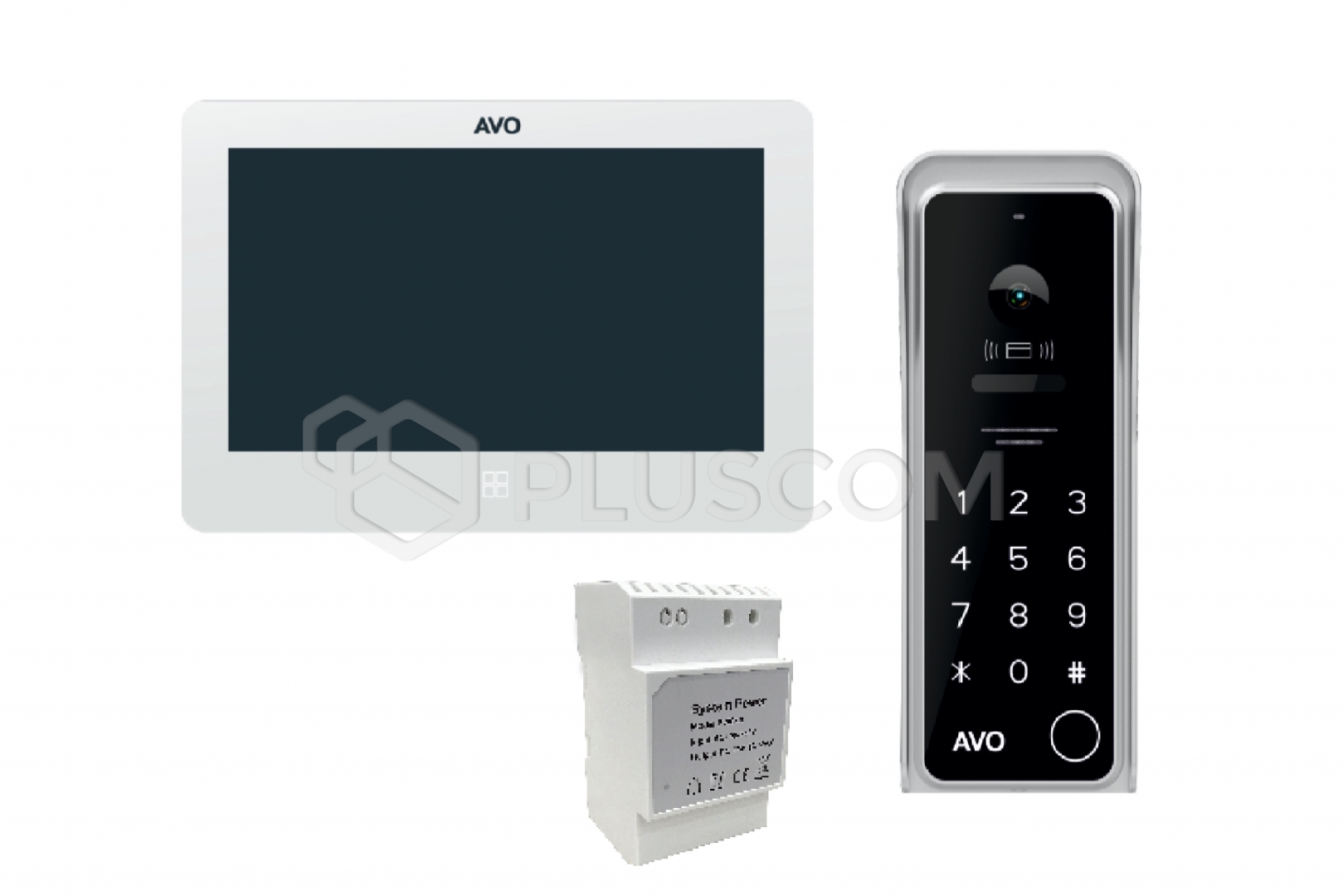

The kit includes:

• 7” white monitor (AVO M7)
• Black intercom with digital keypad and card reader (AVO PK)
• 2 125 kHz RFID key fobs

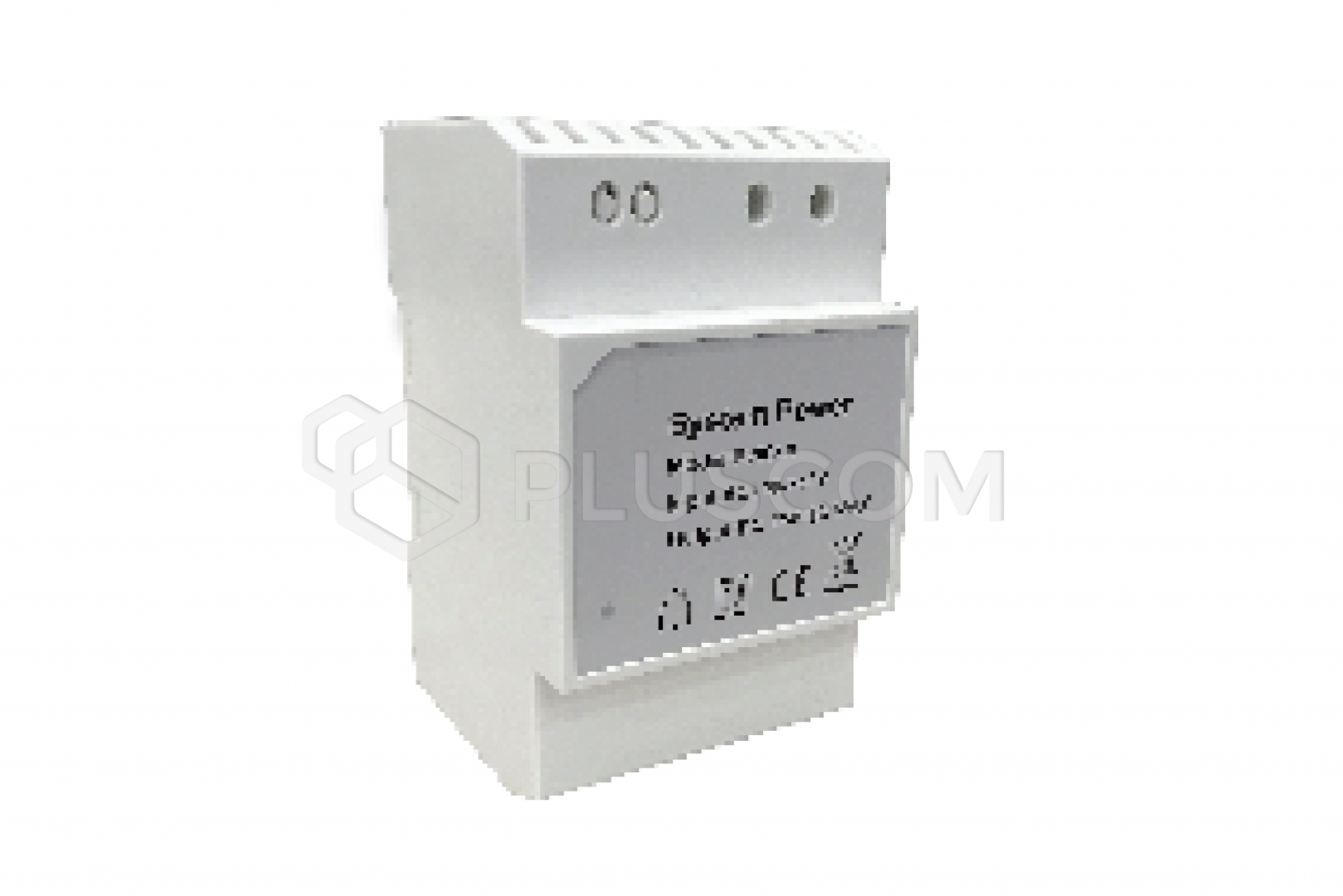

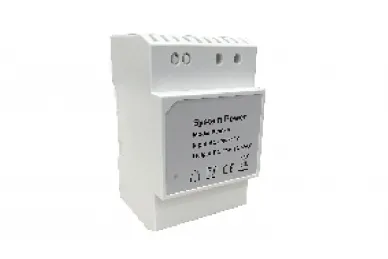

• DIN power supply (AVO 03A)

High image and sound quality: Advanced technologies guarantee clear and smooth communication, regardless of lighting conditions.

Intuitive interface: Simple and convenient operation for users of all ages.

Modern design: Stylish design that blends perfectly with various styles Architectural features.

AVO video intercoms offer the ability to talk to and monitor visitors in real time. The image recording function allows for later review of recordings, ensuring full control over access to the property.

Integration with other systems: Easy integration with gate automation systems for even greater security. Remote control via the TUYA app.

By choosing AVO CONNECT, you're investing in:

• Family Safety: Full control over who has access to your home
• Convenience: Ability to control the device from a smartphone or tablet
• Reliability: Proven and solidly built devices
• Functionality: AVO CONNECT can work with a gate (opening and closing) and a wicket gate (operating the electric strike)

Technical specifications:

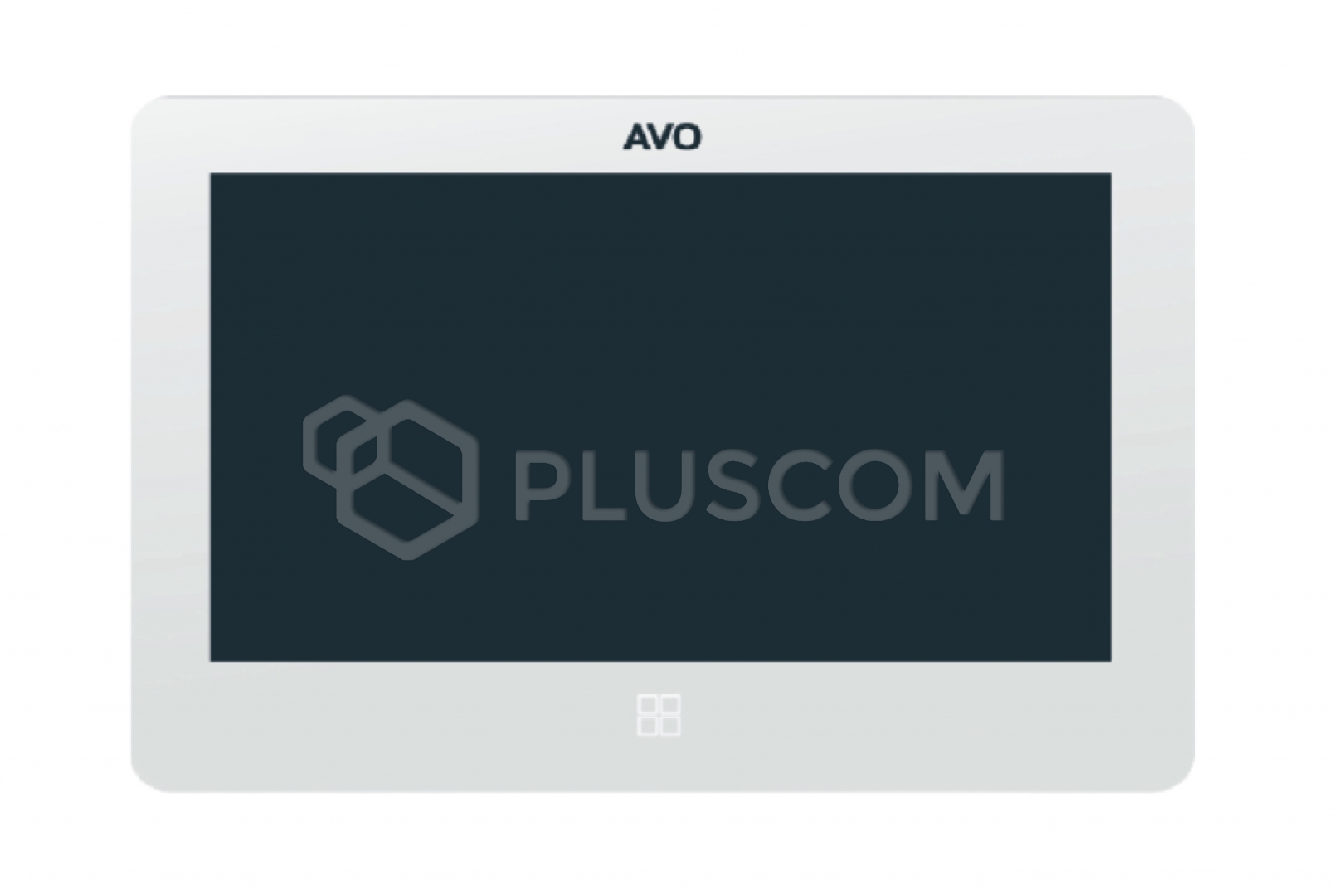

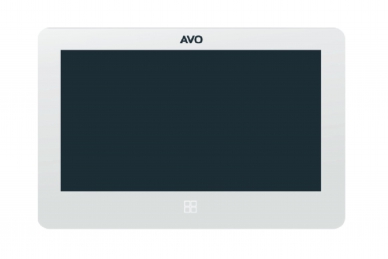

M7 monitor

• LCD display: 7-inch digital (800*480)
• Intercom type: touchscreen
• Digital, two-wire communication
• Audio distortion: less than 3%
• Cable length: Less than 200 meters (see panel manual) (external)
• Audio: digital signal (bidirectional)
• Video: digital signal (input)
• Button: touchscreen
• Internal connection: support
• Expansion monitors: up to 4 monitors
• Power supply: DC 15-30V
• Power consumption: 4W (MAX), 1.5W (Standby)
• Operating temperature: -10°C +40°C
• Storage temperature: -30°C +60°C
• Dimensions: 185x127x17 mm

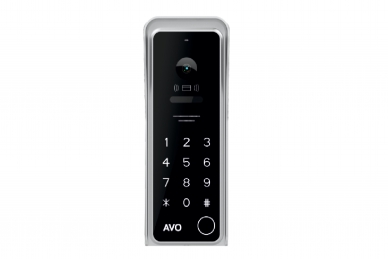

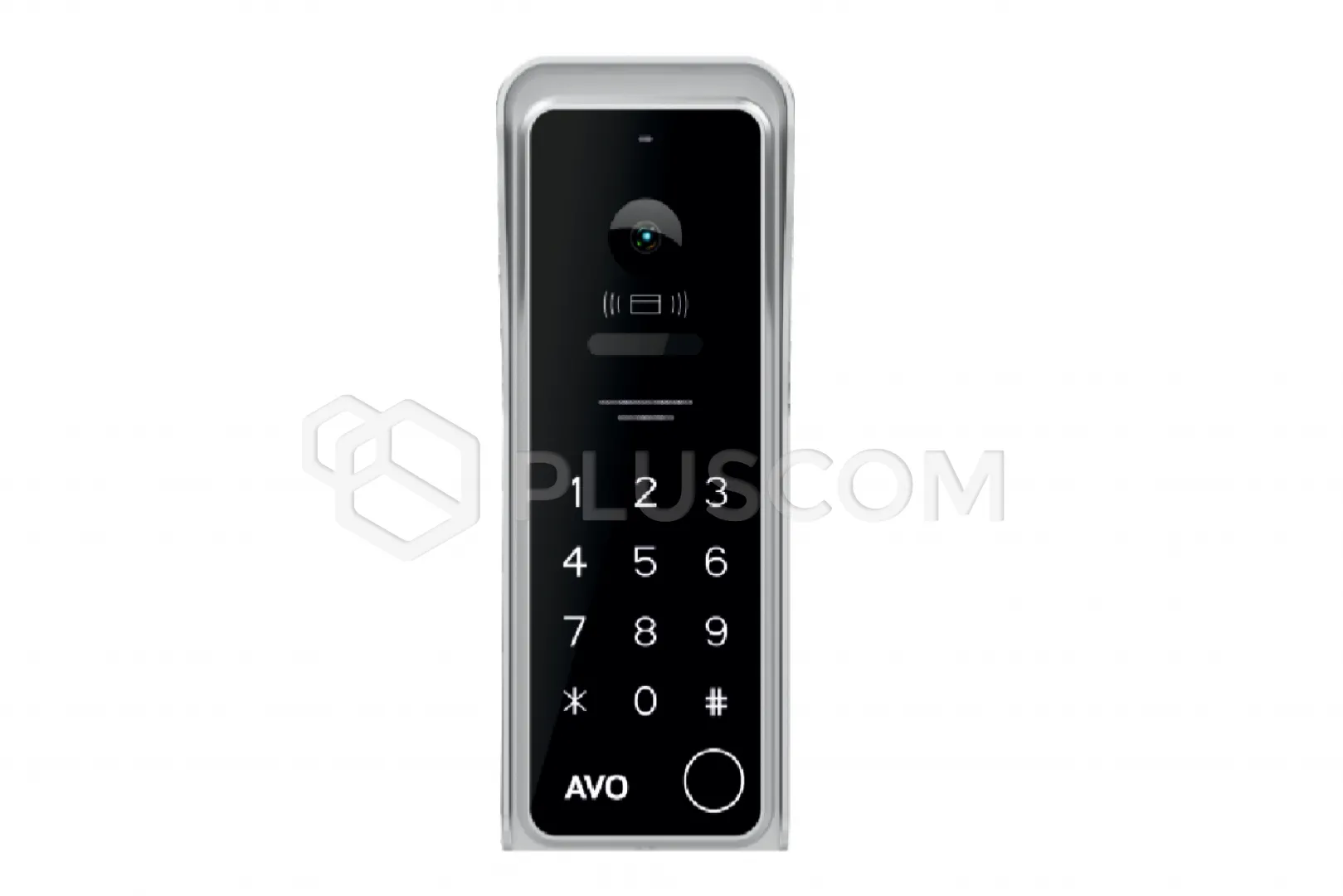

PK Intercom

• Digital, two-wire communication
• Number of 1 subscriber
• Two-way digital audio
• Camera: 1080p HD color CMOS camera
• Night vision: infrared LEDs with automatic intensity adjustment
• Effective distance (0 lux): 0.5 meters
• Camera viewing angle: 110° horizontal, 50° vertical
• Numeric buttons: touchscreen
• Call button: mechanical
• Operating voltage: 12-24V DC, 0.3A max
• Electric lock support: NC – 12V DC, 0.35A NO – 12V DC, max 2A
• Gate control: potential-free contact, load capacity: AC – 125V, max 1A DC – max 30V, max 4A
• RFID card/key fob type: 125 KHz
• Card/key fob reading capacity: up to 20 mm
• Card/key fob reader memory: up to 1000 pcs
• Power consumption: 3W
• Operating temperature: -25°C +60°C
• Storage temperature: -30°C +60°C
• Dimensions: without canopy: 147x51x21 mm, with canopy: 159x63x34 mm
• Protection rating: IP 66
• Durability class: IK 07
