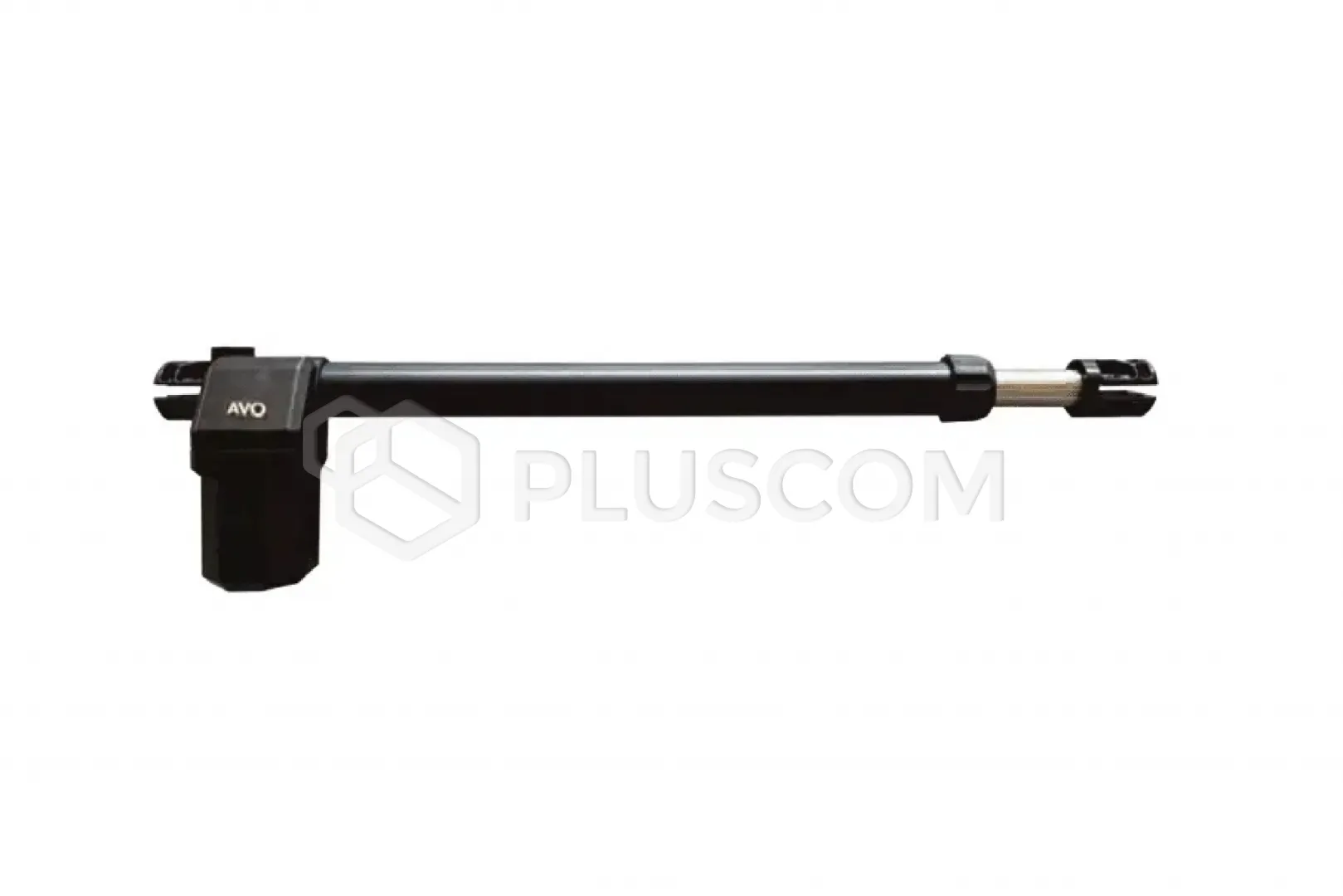

Avo ATO 4 Actuator for swing gates, 4 m long and weighing 200 kg

Product code: #36524
Manufacturer: Avo
  • Maximum gate leaf width: 4 m
  • Maximum leaf weight: 200 kg
  • Power supply: 230V AC
  • Protection class: IP 54
  • Opening time to 90°: 18-25 s
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Avo ATO 4 Actuator for swing gates, 4 m long and weighing 200 kg


Electromechanical, self-locking 230V telescopic actuator for swing gates with a leaf length of up to 4 m.

Quiet:

Exceptionally quiet operation of the actuators guarantees high comfort of use.

Durable:

A robust construction with mechanical parts made of metal and a waterproof housing guarantees efficient operation and long life.

Components protected against weather conditions guarantee trouble-free operation.

Programming:

Possible using the buttons on the control unit. Simple installation thanks to the included metal mounting brackets that require no welding.

Photocells:

An adjustable pair of external photocells designed for mounting on narrow posts, with 180-degree adjustment, is standard equipment in each set.

Technical Specifications:

  • Speed cm/s: 1.8
  • Thrust force N: 1600
  • Work intensity %: 35
  • Open time to 90° s: 18-25*
  • Control unit: ACT202
  • Power supply V AC: 230
  • Consumption A: 0.9
  • Motor power W: 180
  • IP protection class: 54
  • Dimensions (L-H) mm: 1180 - 185
  • Weight kg: 6
  • Operating temperature °C: -25 + 60
  • Maximum gate leaf weight kg: 200
