AVO ATEL 324 Set of two 24V actuators for 3m swing gates

715,40 EUR including 23.00% VAT
Product code: #43265
  • Maximum gate leaf width: 3 m
  • Maximum leaf weight: 400 kg
  • Power supply: 24V DC
  • Control unit: ACT20224
  • Opening time to 90°: 18-25 s
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

AVO ATEL 324 Set of two 24V actuators for 3m swing gates

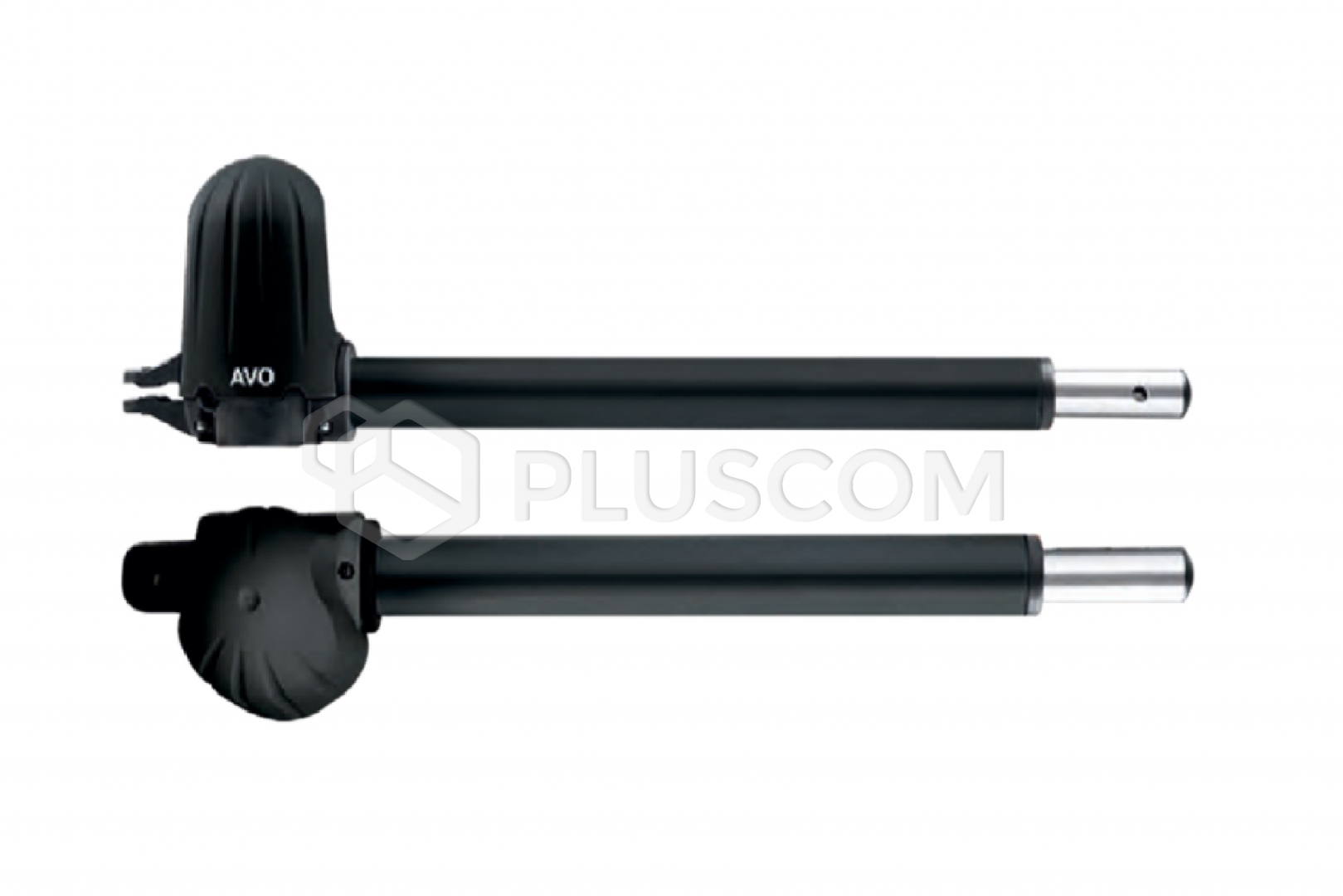

Electromechanical, self-locking 24V telescopic actuator for swing gates with a leaf length of up to 3 m.

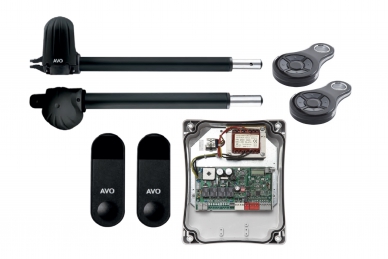

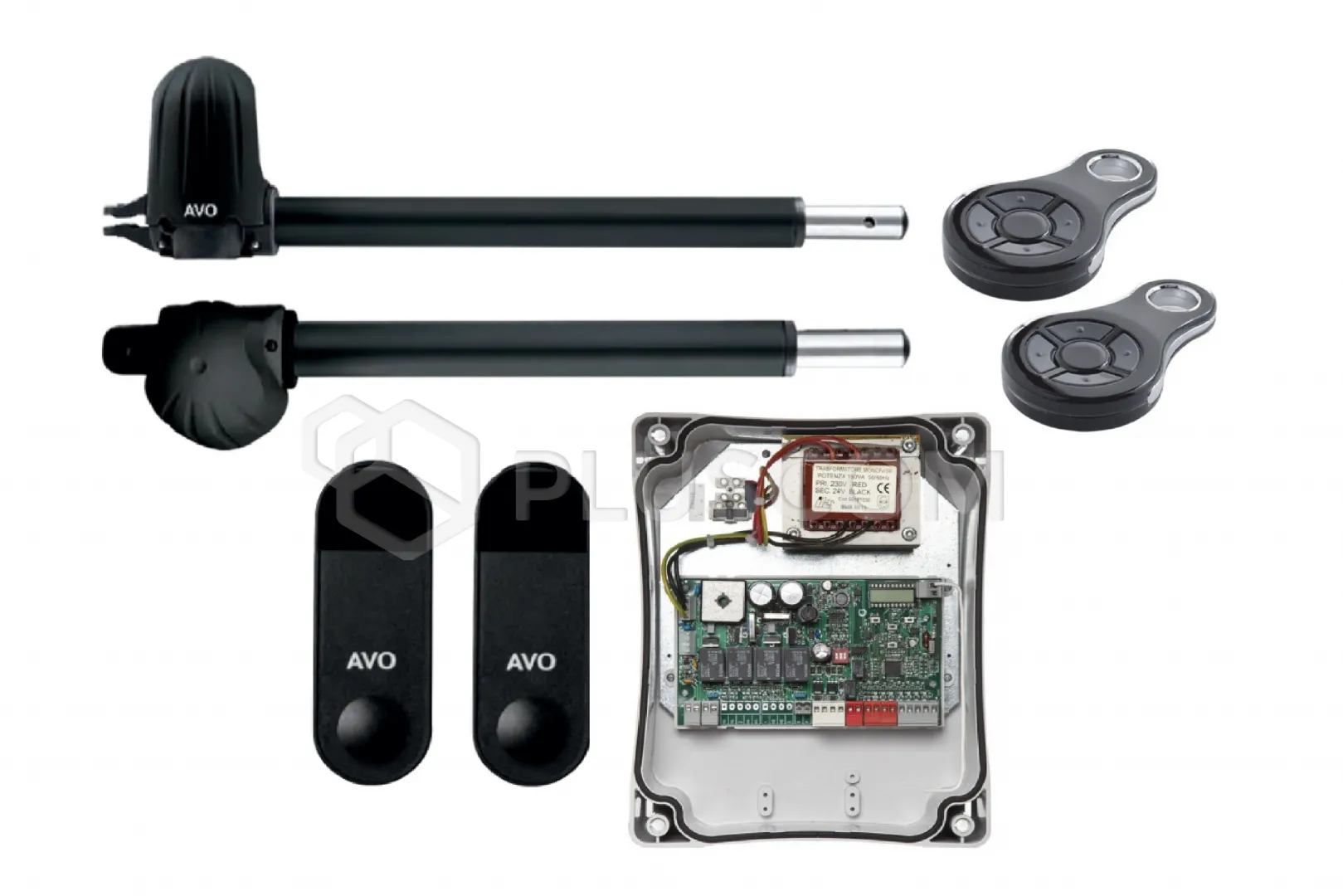

The set includes:

  • 2 ATEL 324 actuators
  • ACT20224 control unit
  • AFT180 photocells

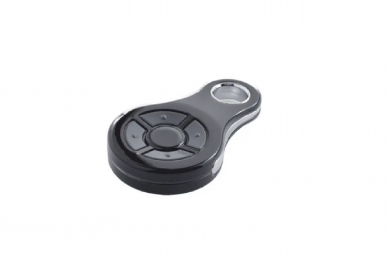

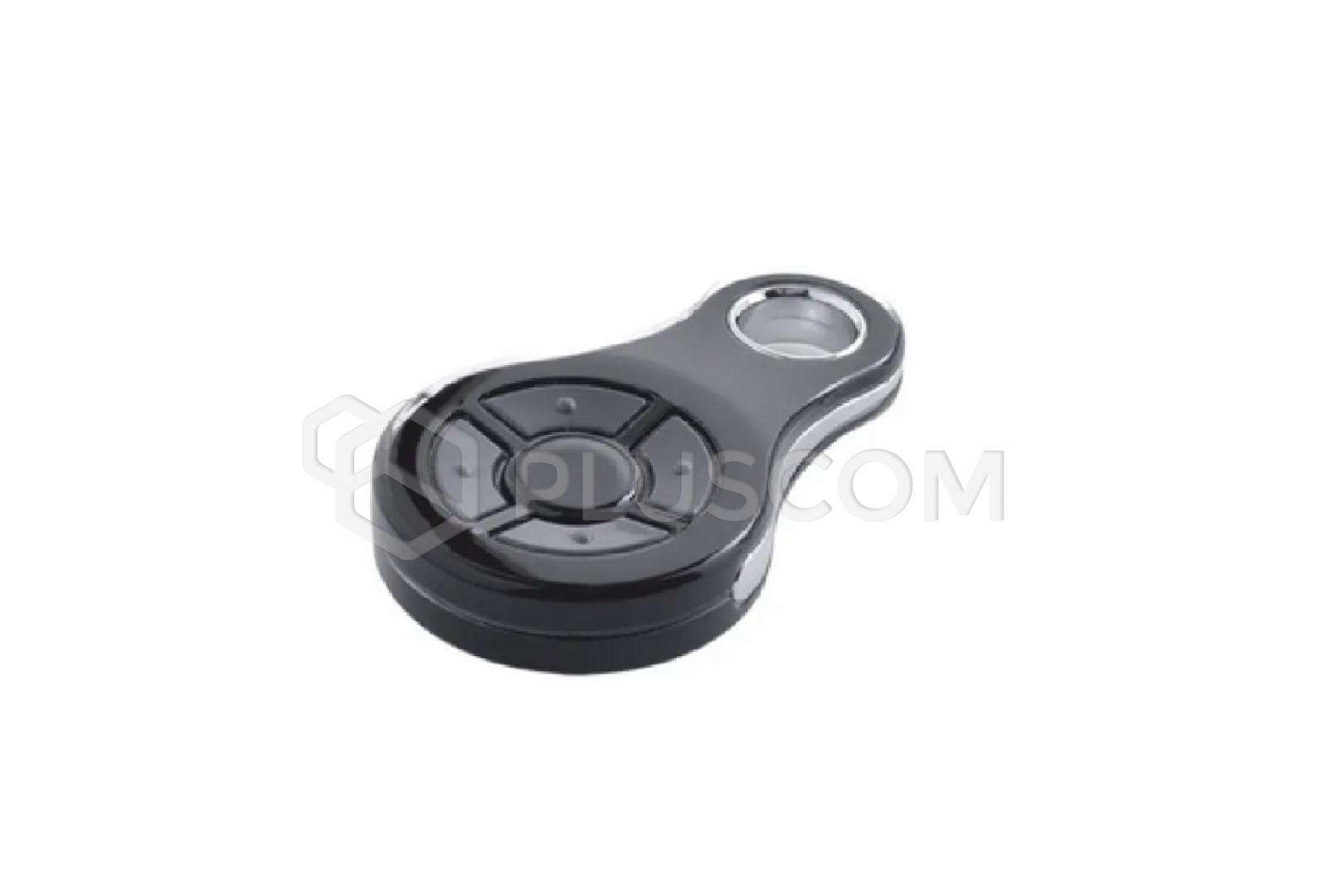

  • 2 AVAK 4-channel remote controls
  • Adjustable, screw-on mounting brackets

Innovative:

The new encoder-free design ensures easy programming and enables smooth start and stop (an external stopper is required when closing).
This is another step forward in gate automation and long-term, trouble-free operation.

Durable:

Mechanical components protected against external factors and a robust, metal release system, convenient and effective even in the most difficult climatic conditions (snow).

Photocells:

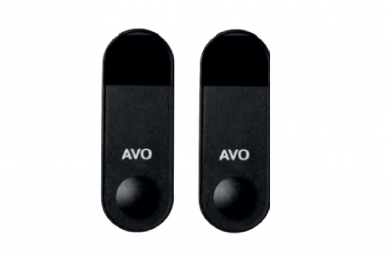

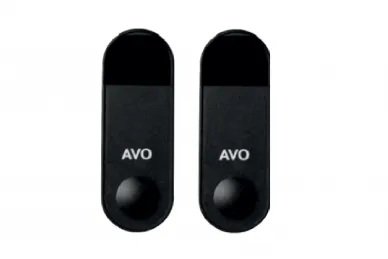

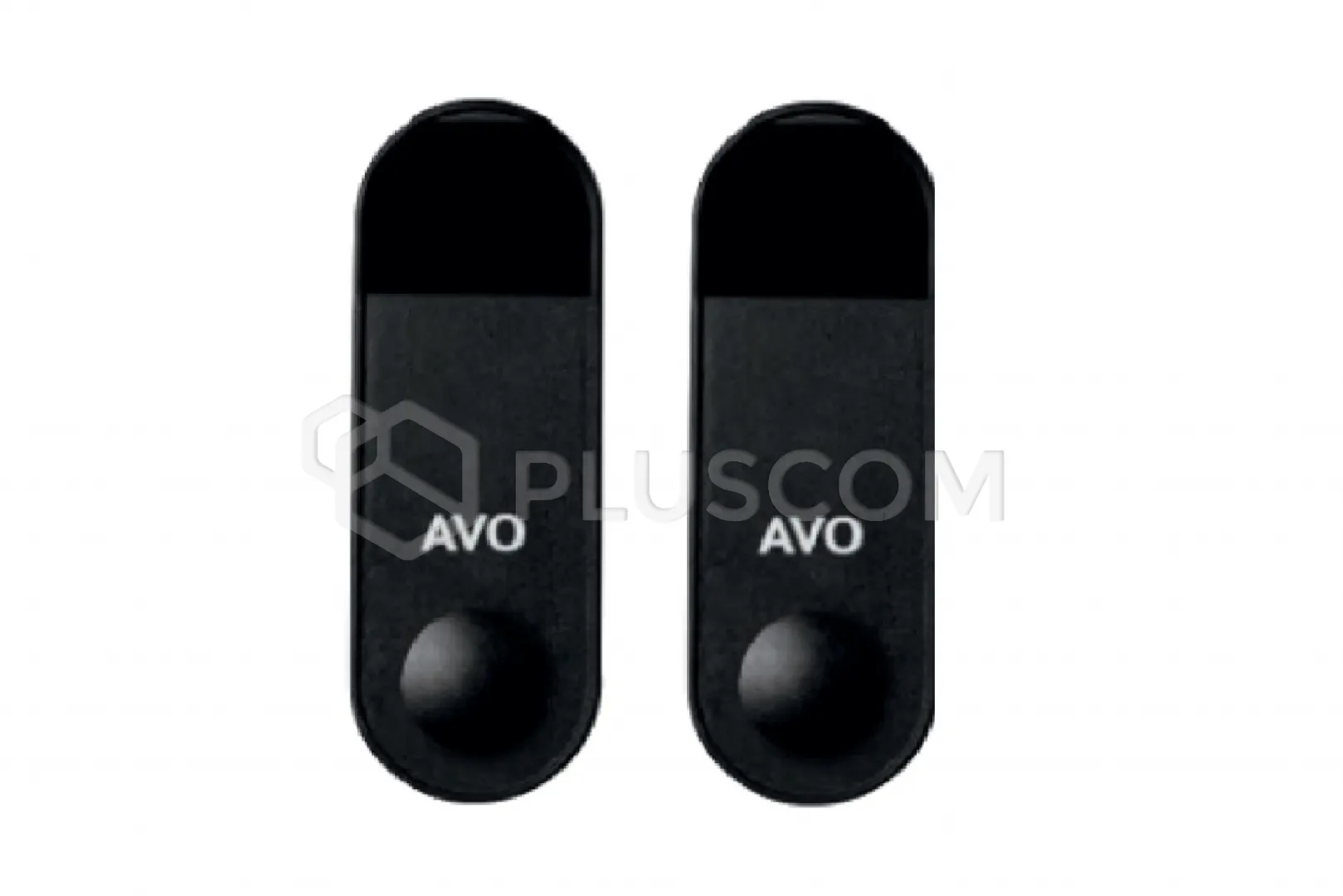

An adjustable pair of external photocells designed for mounting on narrow posts, with 180-degree adjustment, is standard equipment with each set.

Modern:

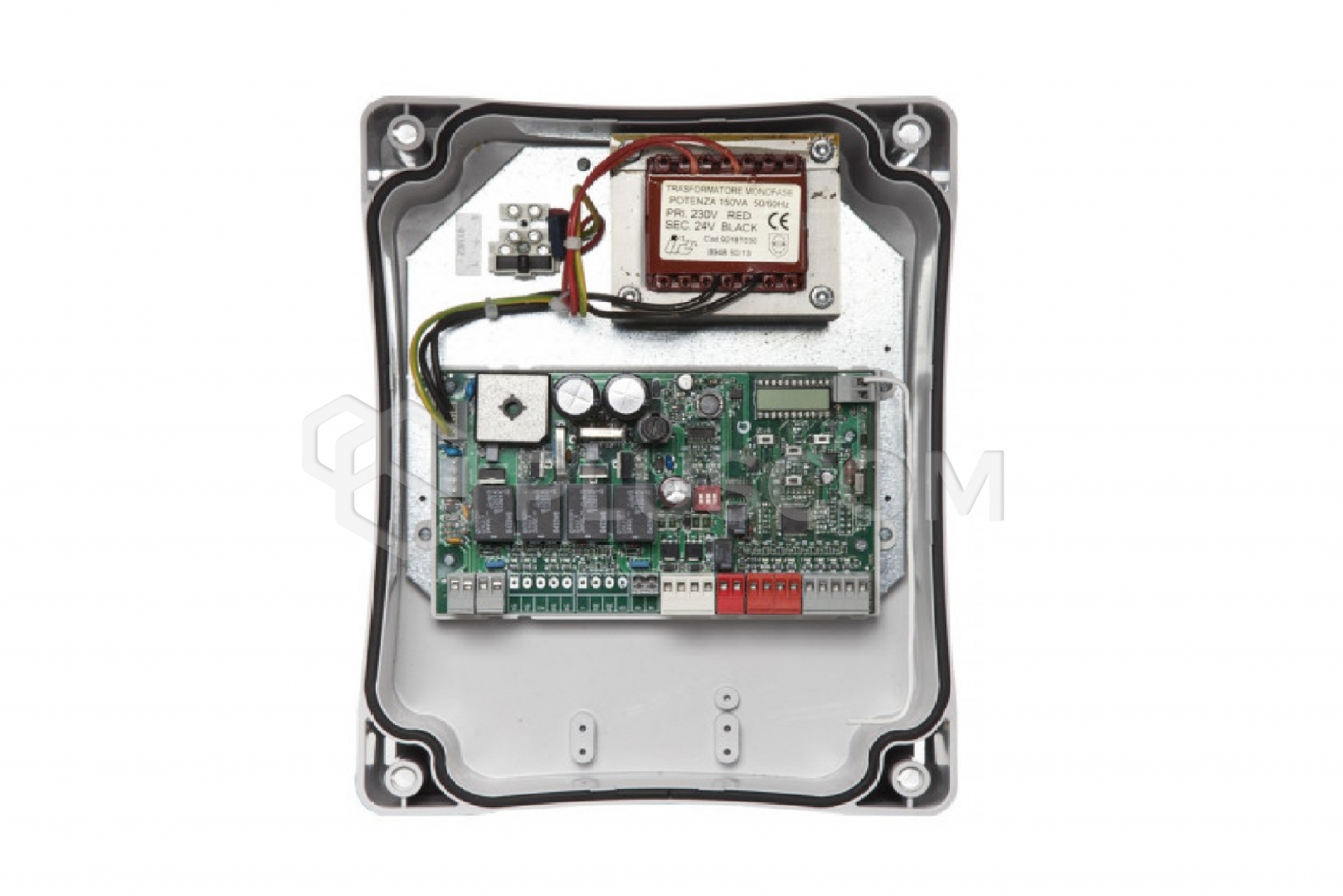

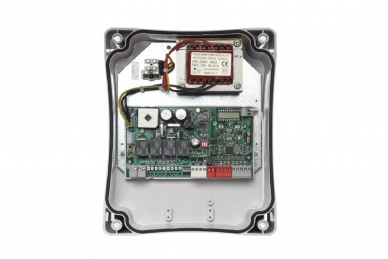

Control is provided by the modern ACT20224 control unit, which ensures easy operation and full control over the gate's functionality.

Programming:

Using the buttons on the control unit.

Technical specifications:

  • Speed cm/s: 2.5
  • Thrust force N: 1400
  • Work intensity %: 50
  • Opening time to 90° s: 18-25
  • Control unit: ACT20224
  • Power supply V DC: 24
  • Consumption A: 3.5
  • Motor power W: 85
  • IP protection class: 54
  • Dimensions (L-D-H) mm: 741 - 115 - 177
  • Weight kg: 3.2
  • Operating temperature °C: -20 + 55
  • Maximum gate leaf weight kg: 400
