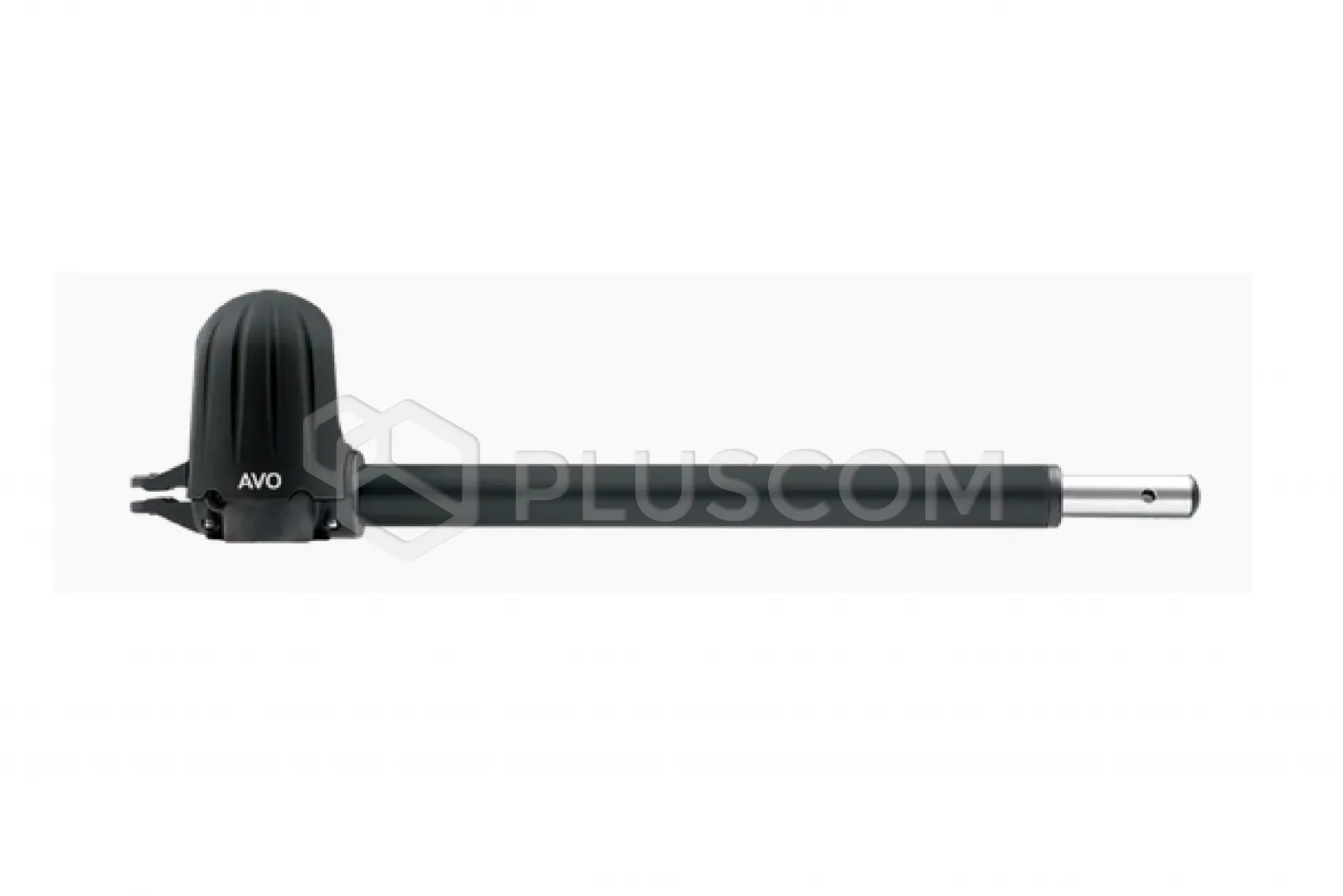

AVO ATEL 324 24V actuator for swing gates with a length of 3 m and a weight of 400 kg

Product code: #36522
Manufacturer: Avo
  • Maximum gate leaf width: 3 m
  • Maximum leaf weight: 400 kg
  • Power supply: 24V DC
  • Opening time to 90°: 18-25 s
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

AVO ATEL 324 24V actuator for swing gates with a length of 3 m and a weight of 400 kg


Electromechanical, self-locking 24V telescopic actuator for swing gates with a leaf length of up to 3 m.

Innovative:

The new encoder-free design ensures easy programming and enables smooth start and stop (an external limit switch is required at closing).
This is another step forward in gate automation and long-term, trouble-free operation.

Durable:

Mechanical components protected against external factors and a robust, metal release system, convenient and effective even in the harshest climatic conditions (snow).

Photocells:

An adjustable pair of external photocells designed for installation on narrow posts, with 180-degree adjustment, is standard with each set.

Modern:

Control is provided by the modern ACT20224 control unit, which ensures easy operation and full control over the gate's functionality.

Programming:

Using the buttons on the control unit.

Technical Specifications:

  • Speed cm/s: 2.5
  • Thrust force N: 1400
  • Work intensity %: 50
  • Open time to 90° s: 18-25
  • Control unit: ACT20224
  • Power supply V DC: 24
  • Consumption A: 3.5
  • Motor power W: 85
  • IP protection class: 54
  • Dimensions (L-D-H) mm: 741 - 115 - 177
  • Weight kg: 3.2
  • Temperature Operating temperature °C: -20 + 55
  • Maximum gate leaf weight kg: 400
