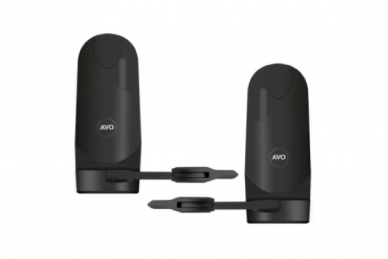

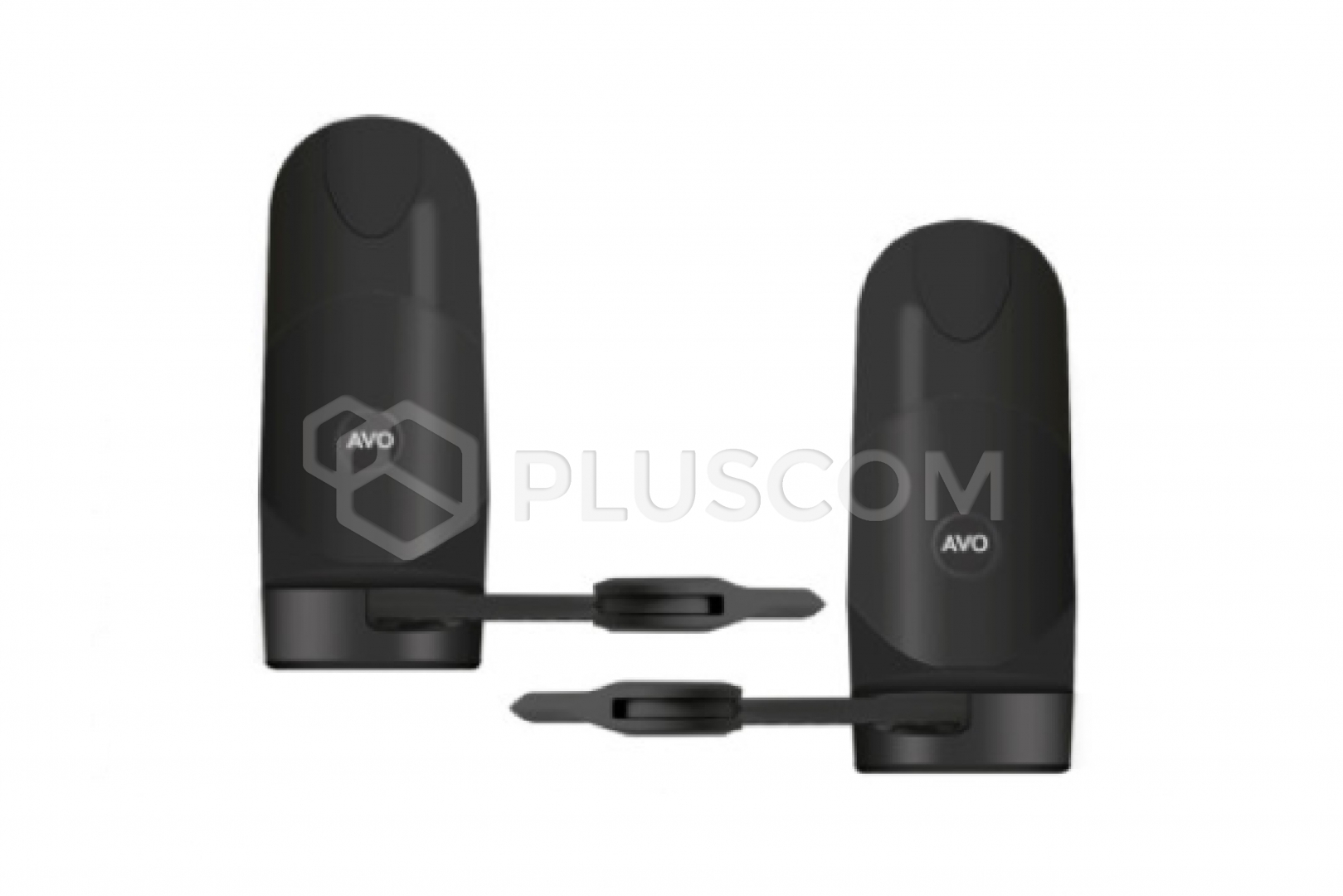

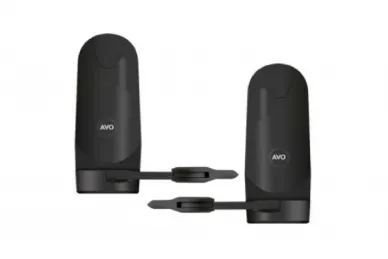

AVO ARTO Set of actuators with a folding arm for swing gates up to 2.3 m
Electromechanical, self-locking 24V actuator with a folding arm
for swing gates with a leaf length of up to 2.3 m.

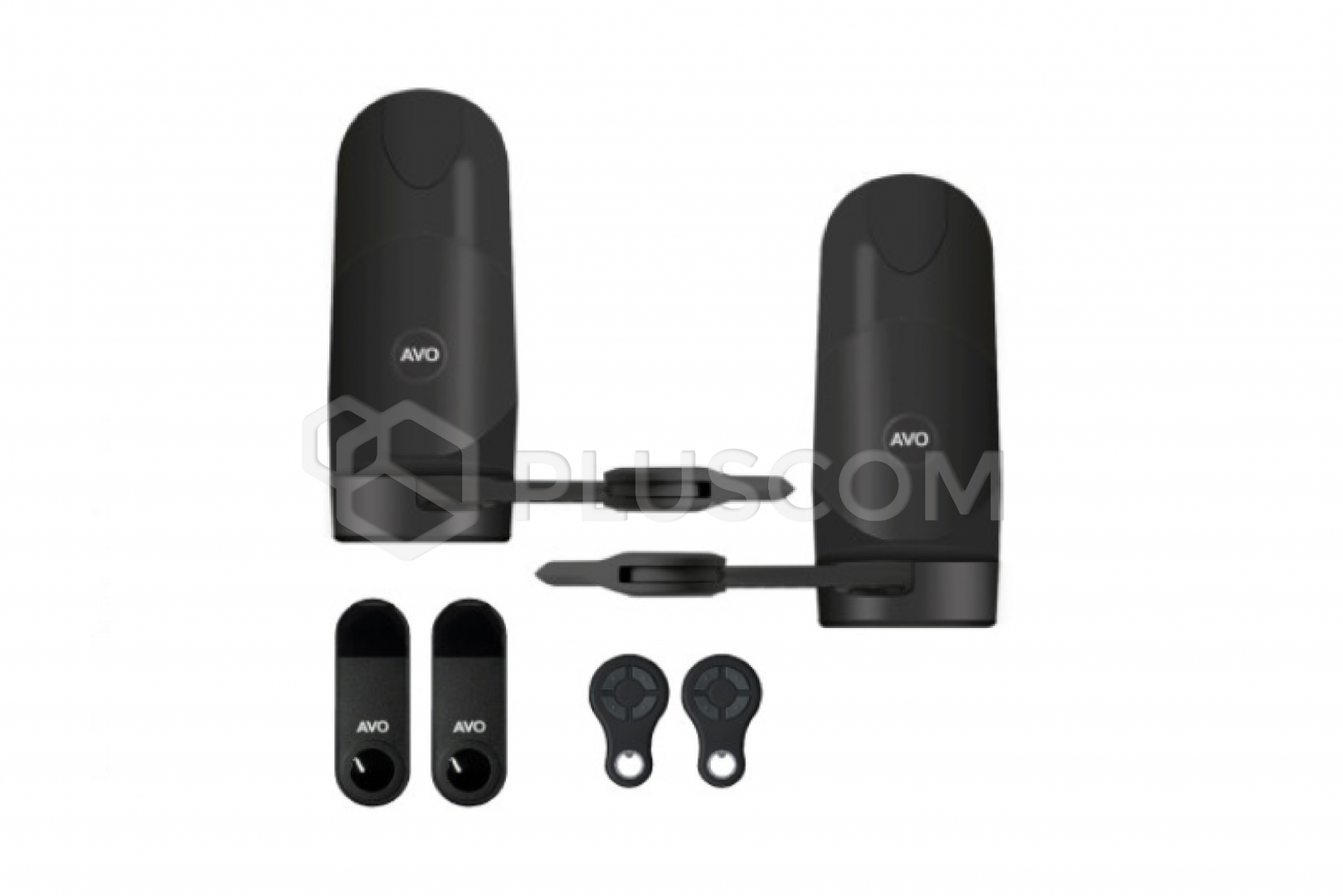

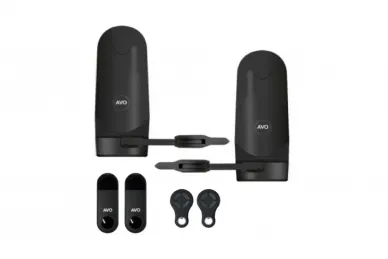

The set includes:
- 2 ARTO actuators
- AFT180 photocells

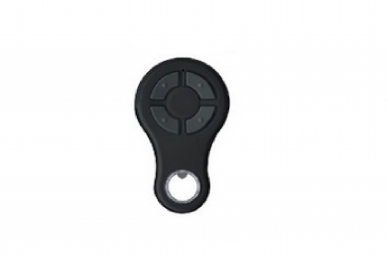

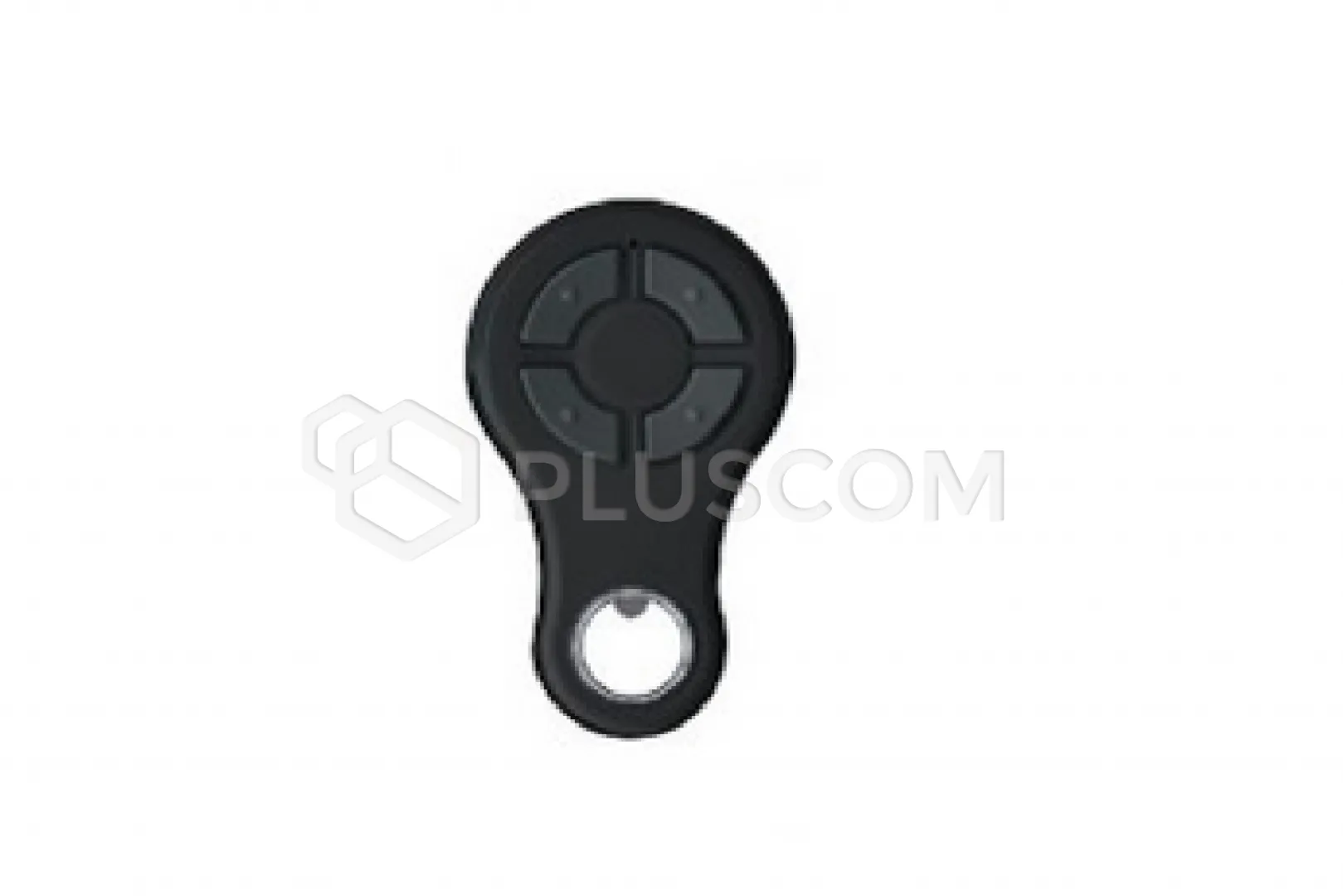

- 2 AVAK 4-channel remote controls
Compact:
The small housing dimensions allow for installation on narrow and wide posts.
The ARTO actuator's folding arm allows for installation in places where the gate leaf hinge is a maximum of 20 cm from the edge of the post.
Ideal for swing gates made of wood and with an openwork structure
mounted on narrow and wide posts.
Quiet:
The extremely quiet operation of the actuators guarantees high comfort of use.
Easy to use:
In the event of a power outage, quick and easy manual release of the actuator
using a special handle on the AVAK remote control.
Possibility of using a battery for emergency opening.
Programming:
Using buttons on the control unit.

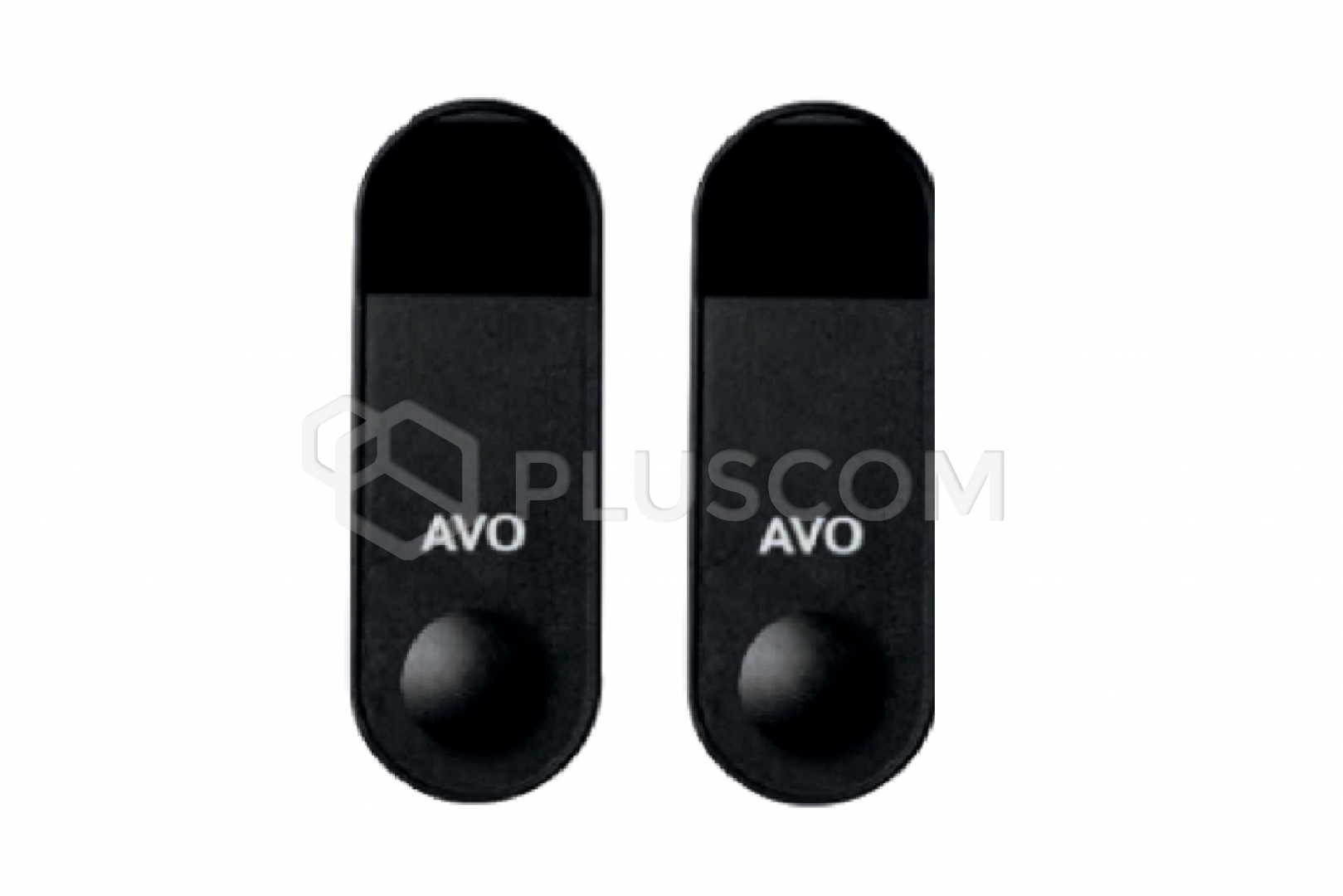

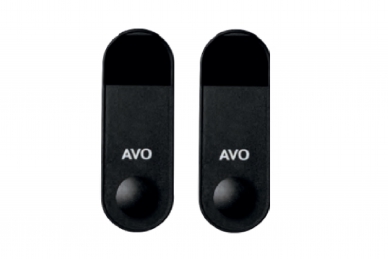

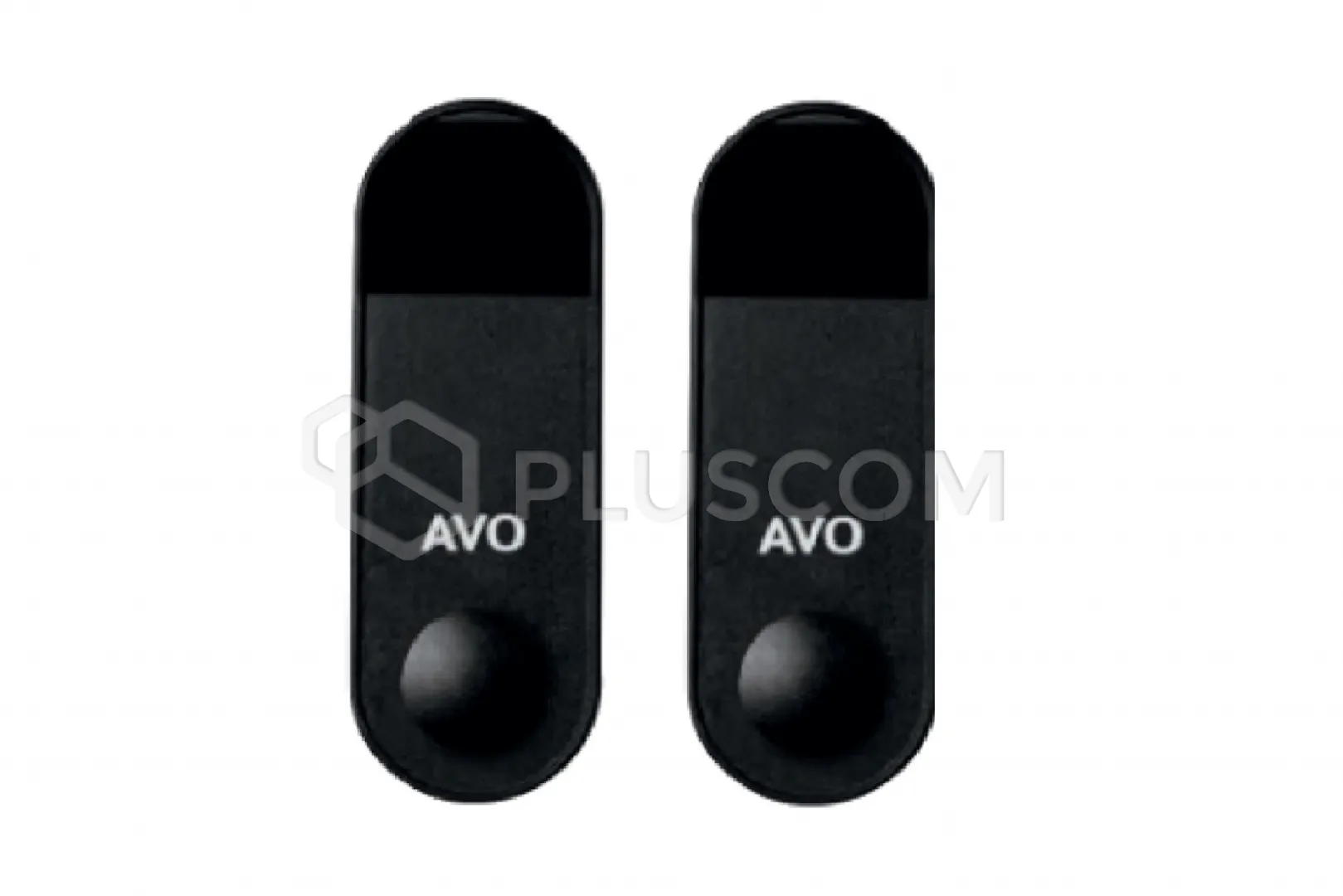

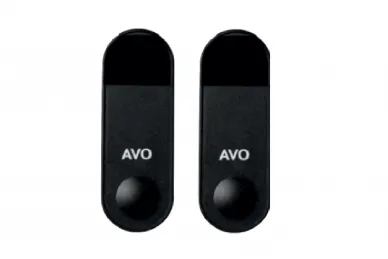

Photocells:
An adjustable pair of external photocells designed for mounting
on narrow posts, with 180-degree adjustment, is standard equipment in each
set.
Durable:
Gear components and gears made of metal, protected against weather conditions.
FEATURES:
- Mounting on a narrow post (10x10 cm)
- Convenient mounting at a low height from the ground
- Easy adjustment of mechanical limit switches
- Robust mechanical components
Technical data:
- Torque Nm: 120
- Work intensity %: 50
- Opening time to 90° s: 14-20
- Control unit: ACT20224
- Power supply V AC: 230
- Amps consumption: 0.6
- Motor power W: 115
- IP protection class: 44
- Dimensions (L-D-H) mm: 125 - 255 - 310
- Weight kg: 10.5
- Operating temperature °C: -20 + 55
- Maximum gate leaf weight kg: 250
