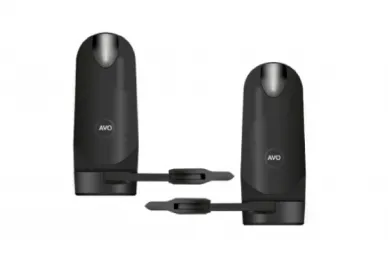

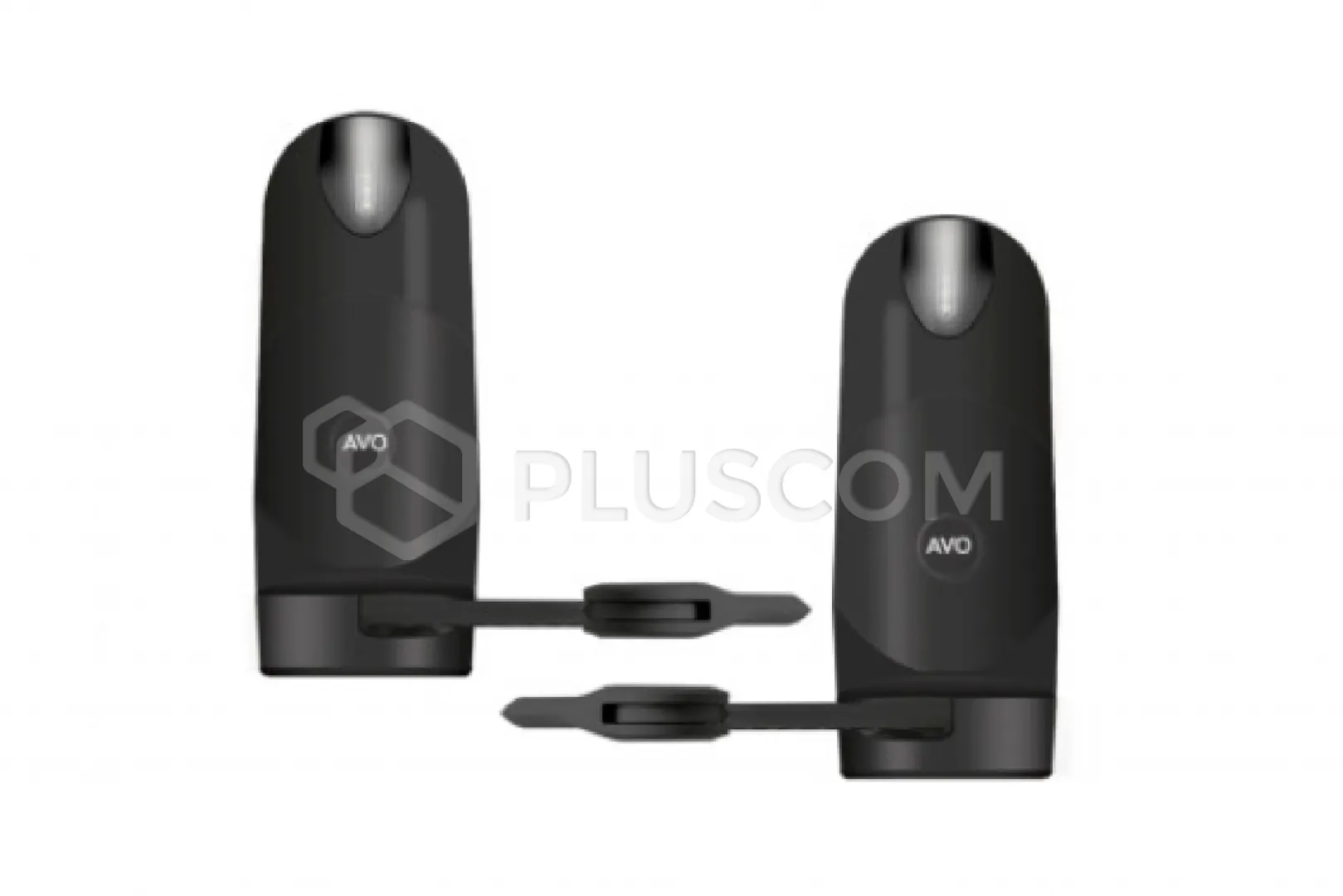

AVO ARTO PRO Set of actuators for swing gates up to 2.3 m with an interface for control via an application
Electromechanical, self-locking 24V actuator with a folding arm
for swing gates up to 2.3m long, with built-in
LED lighting and a KUBE interface allowing you to control the drive
using a smartphone.

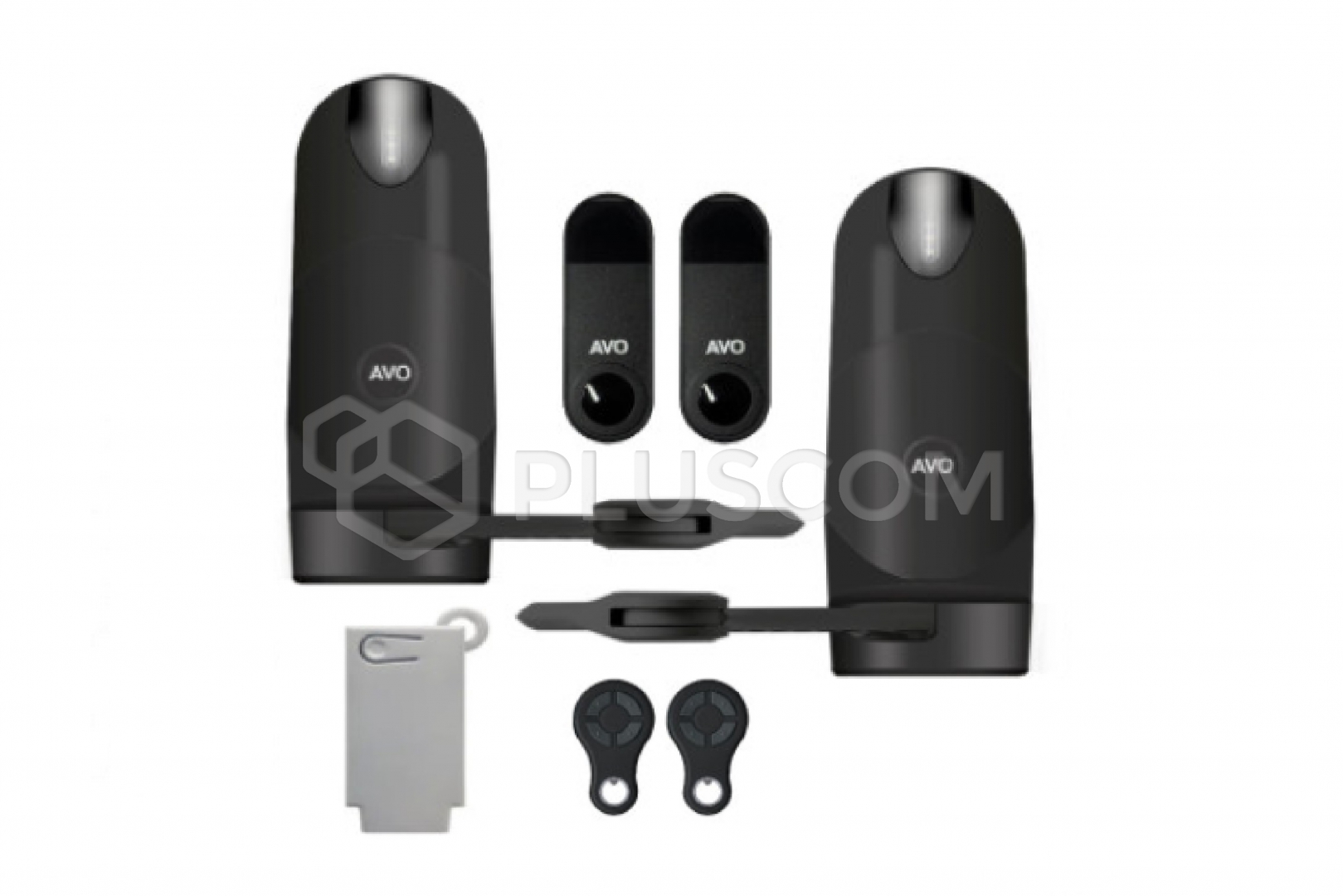

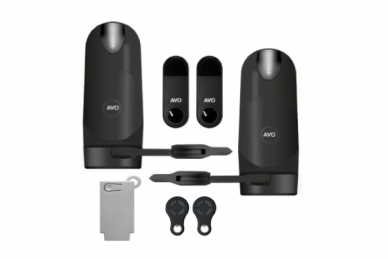

The set includes:

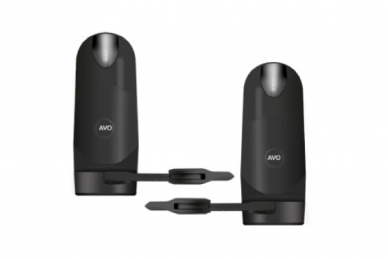

- 2 ARTO PRO actuators
- AFT180 photocells

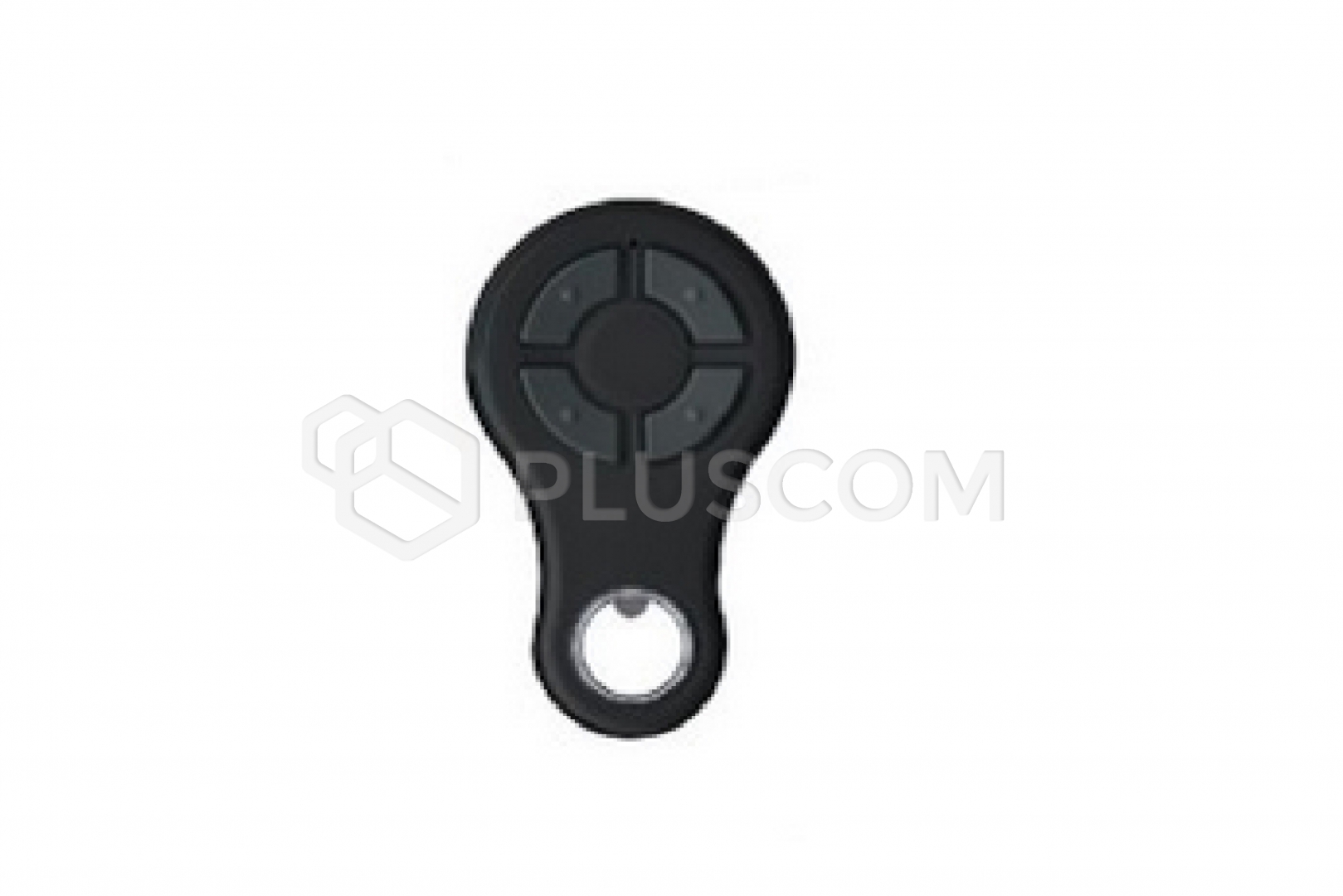

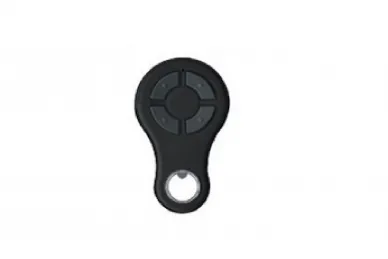

- 2 AVAK 4-channel actuators

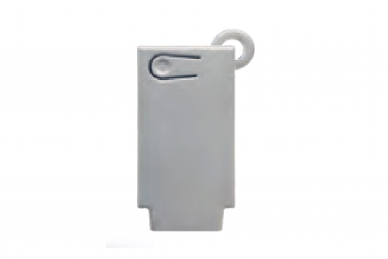

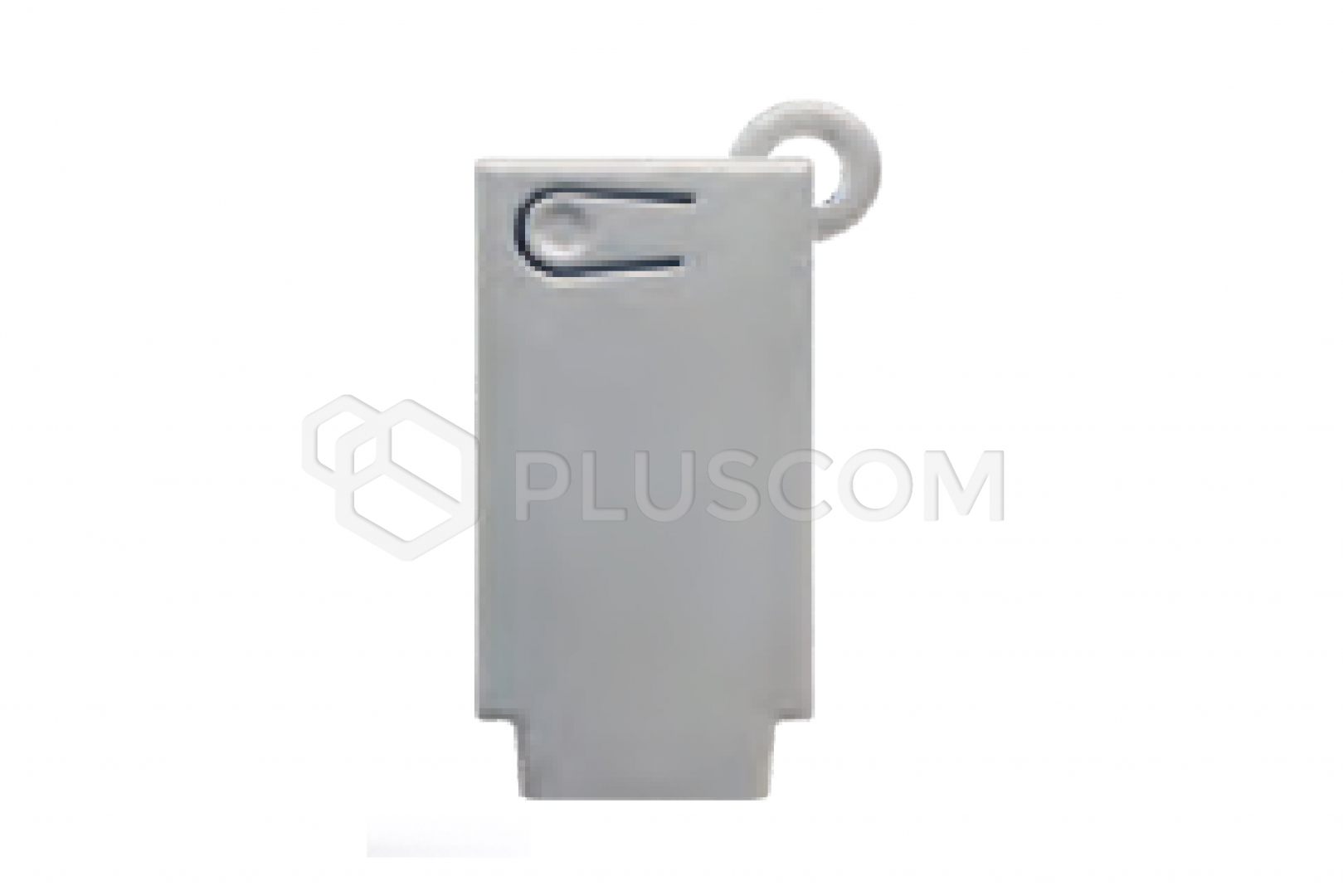

- KUBE interface
Compact:
The small housing dimensions allow for installation on narrow and wide posts.
The ARTO actuator's folding arm allows for installation in places where the gate leaf hinge is located up to 20 cm from the post edge.
Ideally suited for swing gates made of wood and with an openwork structure
mounted on narrow and wide posts.
Durable:
Gear components and gears are made of metal, protected
against weather conditions.
Innovative:
LED lighting built into the actuator housing provides excellent
visibility when entering the property, especially at night and in difficult
weather conditions. It also constitutes an attractive and effective element of the
garden infrastructure, together with other lighting elements offered by AVO.
In the event of a power outage, the actuator can be quickly and easily manually disengaged
using a special handle on the AVAK remote control.
Quiet:
The exceptionally quiet operation of the actuators guarantees high comfort of use.

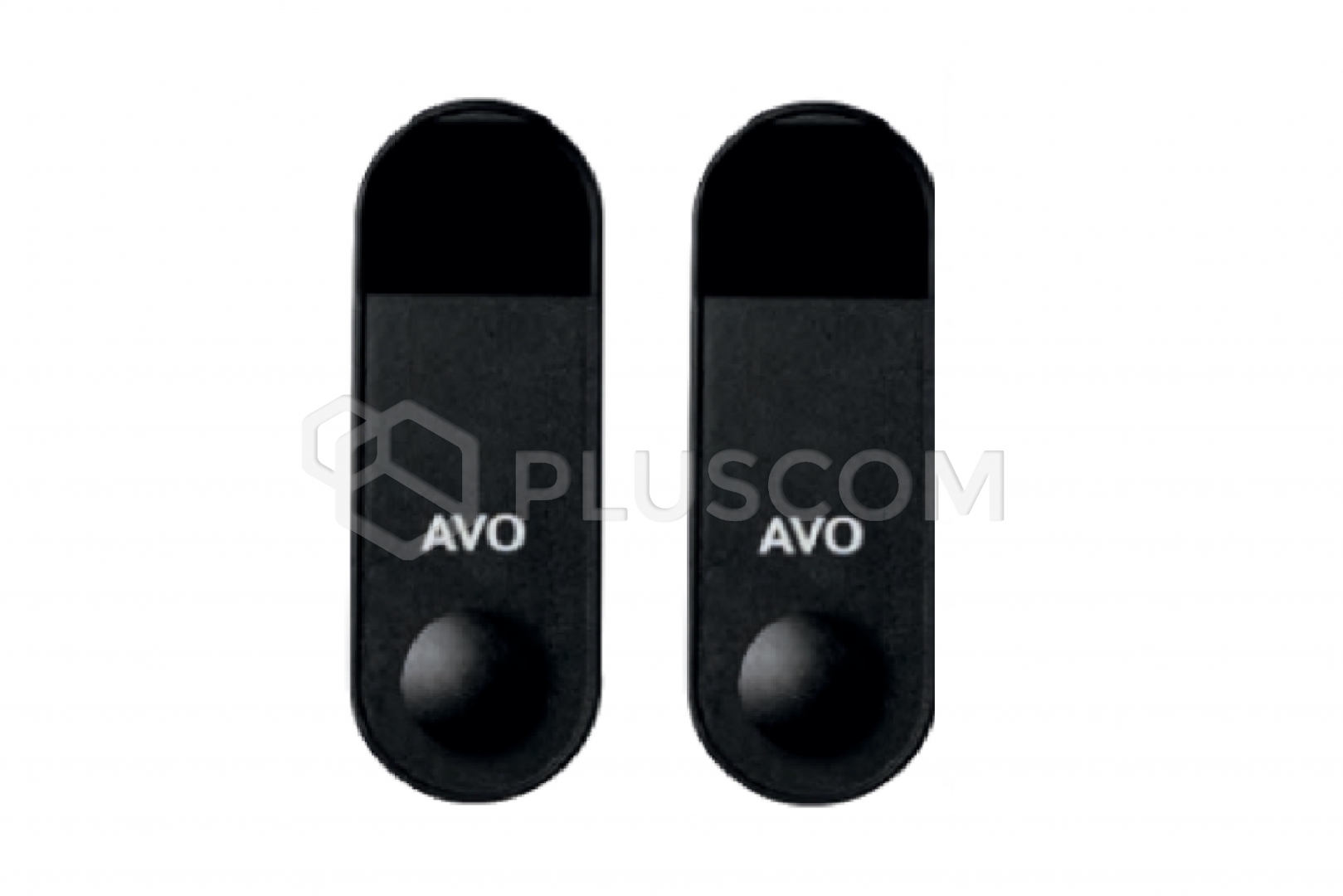

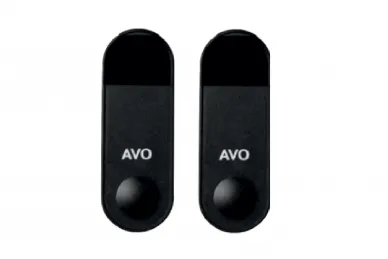

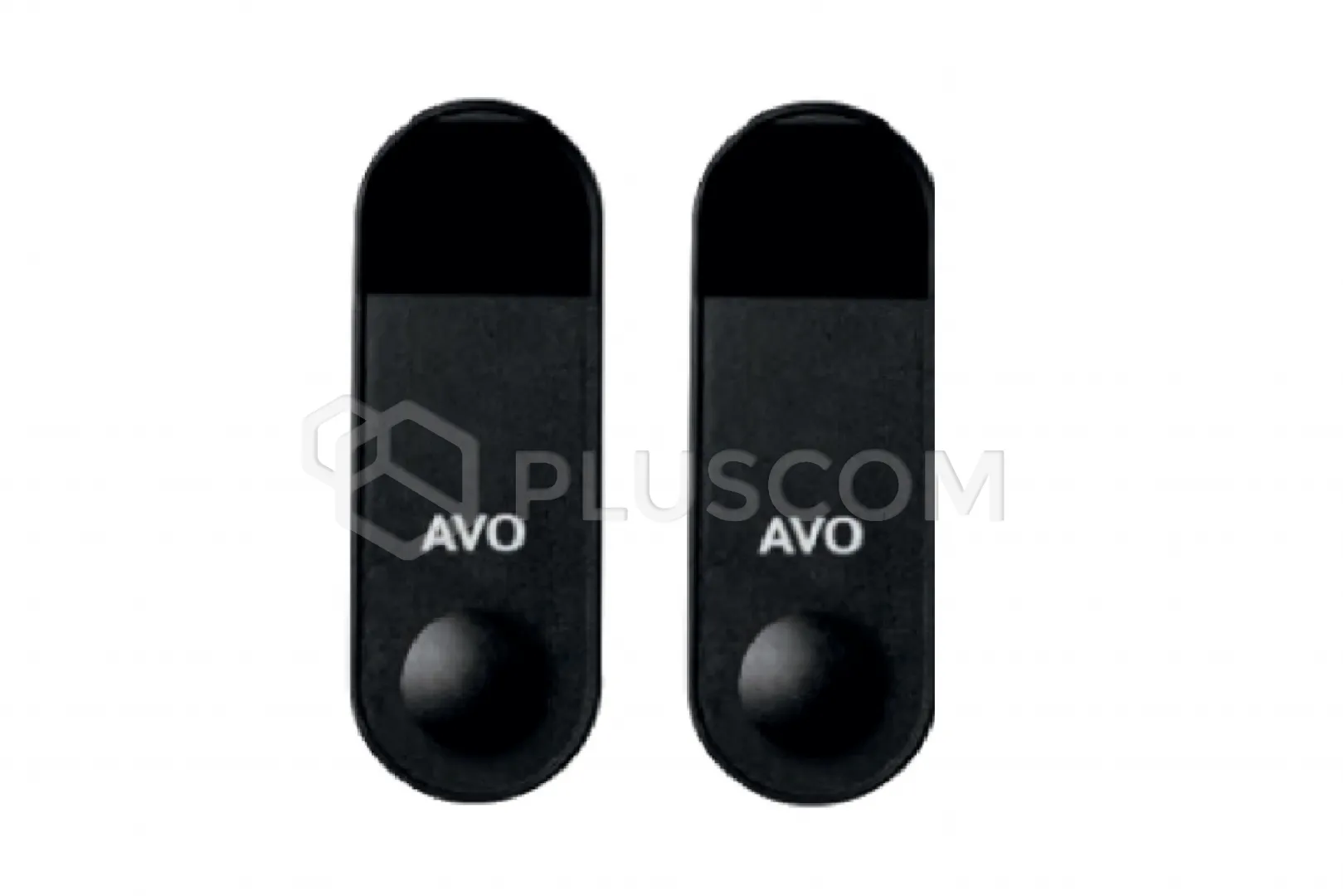

Photocells:
An adjustable pair of external photocells designed for mounting on narrow posts, with 180-degree adjustment, is standard equipment in each set.
Programming:
Exclusively via the KUBE PRO interface, which significantly simplifies the entire process.
Emergency Power Supply:
A battery can be used for emergency opening (optional).
The actuator will open and close the gate in the event of a power outage.
KUBE AND KUBE PRO:
Innovative Bluetooth interface for configuring and managing AVO automation
using an app.
An effective tool enabling remote control of AVO automation
and supporting installation, ensuring optimal installer uptime and quick and easy programming of control units and numerous actuator functions.
Compatible with Android and Apple smartphones.
FEATURES:
- Mounts on a narrow post (10x10 cm), built-in LED lighting
- Easily adjustable mechanical limit switches
Technical specifications:
- Torque Nm: 120
- Working intensity %: 50
- Opening time to 90° s: 14-20
- Control unit: A14A
- Power supply V AC: 230
- Consumption A: 0.6
- Motor power W: 115
- Built-in lighting: yes
- IP protection class: 44
- Dimensions (L-D-H) mm: 125 - 255 - 310
- Weight kg: 10.5
- Operating temperature °C: -20 + 55
- Maximum gate leaf weight kg: 250
