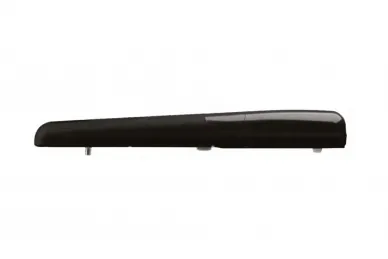

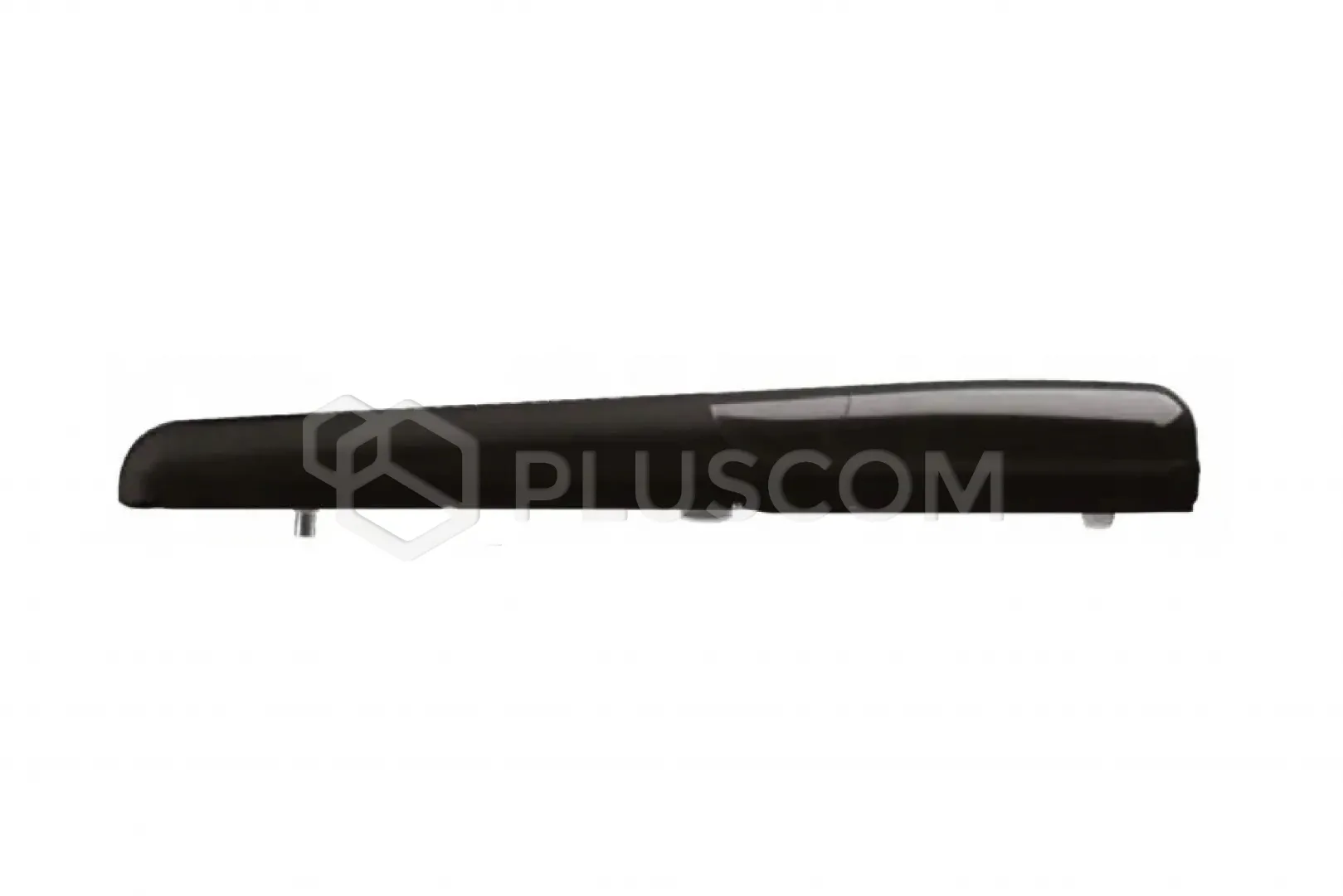

Avo APO424 PRO Actuator for swing gates up to 4m long and weighing
600kg
Electromechanical, self-locking 24V actuator for swing gates with a leaf length
of up to 4 m, with built-in LED lighting.
Durable:
Mechanical components made of bronze, metal gear components
(APO424PRO, APO424), weather-resistant, and a UV-resistant, powder-coated cast
aluminum housing ensure long-lasting and trouble-free operation.
Quiet:
Exceptionally quiet operation of the actuators guarantees high
comfort of use.
Innovative:
LED lighting built into the actuator housing provides
excellent visibility when entering the property, especially at night and in
difficult weather conditions. It also serves as an attractive and effective
element of garden infrastructure, along with other lighting elements offered by
AVO.
In the event of a power outage, the actuator can be manually released quickly
and easily using a special handle on the AVAK remote control.
Photocells:
A pair of external photocells designed for installation on
narrow posts, adjustable by 180 degrees, are standard equipment in each set.
Programming:
Exclusively via the KUBE PRO interface, which
significantly simplifies the entire process.
Emergency power supply:
Optional battery backup for emergency opening
(optional); the actuator will open and close the gate in the event of a power
outage.
KUBE AND KUBE PRO:
Innovative Bluetooth interface for configuring and
managing AVO automation via the app.
An effective tool enabling remote control of AVO automation systems and
supporting installation, ensuring optimal installer uptime and easy and quick
programming of control panels and numerous actuator functions.
Compatible with Android and Apple smartphones.
Technical Specifications:
- Speed cm/s: 1.5
- Thrust force N: 2000
- Work intensity %: 50
- Open time to 90° s: 20-25*
- Control unit: A14AB250
- Power supply V DC: 24
- Consumption A: 5
- Motor power W: 120
- Built-in lighting: yes
- IP protection class: 44
- Dimensions (L-D-H) mm: 844 - 100 - 104
- Weight kg: 8
- Operating temperature °C: -20 + 55
- Maximum gate leaf weight kg: 600
