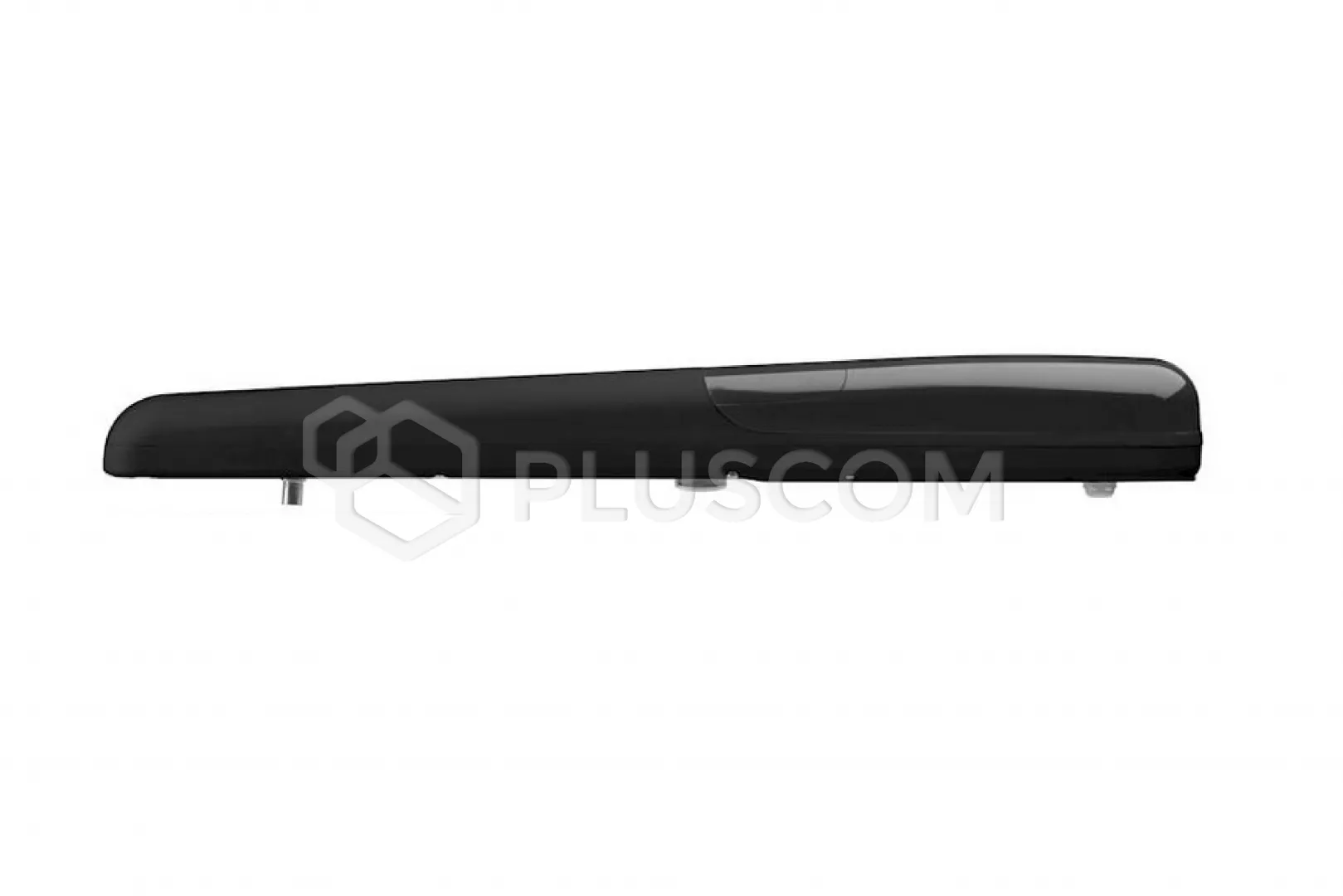

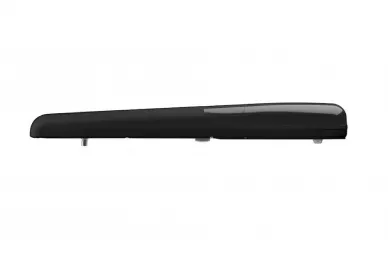

AVO APO324 Actuator for swing gates, 3m long and weighing 300kg

Product code: #36508
Manufacturer: Avo
  • Maximum gate leaf width: 3 m
  • Maximum leaf weight: 300 kg
  • Power supply: 24V DC
  • Opening time to 90° s: 18-25*
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

AVO APO324 Actuator for swing gates, 3m long and weighing 300kg


Electromechanical, self-locking 24V actuator for swing gates with a leaf length of up to 3 m.

Durable:

Mechanical components protected against weather conditions, a UV-resistant, powder-coated cast aluminum housing – all this ensures long-lasting and trouble-free operation.

Quiet:

Exceptionally quiet operation of the actuators guarantees high comfort of use.

Programming:

Using buttons on the control unit.

Battery backup:

Optional battery backup for emergency opening. The actuator will open and close the gate in the event of a power outage.

Photocells:

An adjustable pair of external photocells designed for mounting on narrow posts, with 180-degree adjustment, is standard equipment in each set.

Technical Specifications:

  • Speed ​​cm/s: 2.6
  • Thrust force N: 1500
  • Work intensity %: 50
  • Open time to 90° s: 18-25*
  • Control unit: ACT20224
  • Power supply V DC: 24
  • Consumption A: 3.5
  • Motor power W: 85
  • IP protection class: 44
  • Dimensions (L-D-H) mm: 844 - 100 - 104
  • Weight kg: 6
  • Operating temperature °C: -20 + 55
  • Maximum gate leaf weight: 300 kg
